DIY Head Breather System Touring Softail Dyna Sportster

Availability: In stock
Manufacturer: DK Custom Products


DIY Head Breather System Touring Softail Dyna Sportster DK Custom Harley Davidson High Flow EBS Outlaw M-8 Milwaukee-Eight Stage I Trike Tri Glide Freewheeler Big Twin Evo Sportster

 DIY Discrete Breather System




DK Custom Products

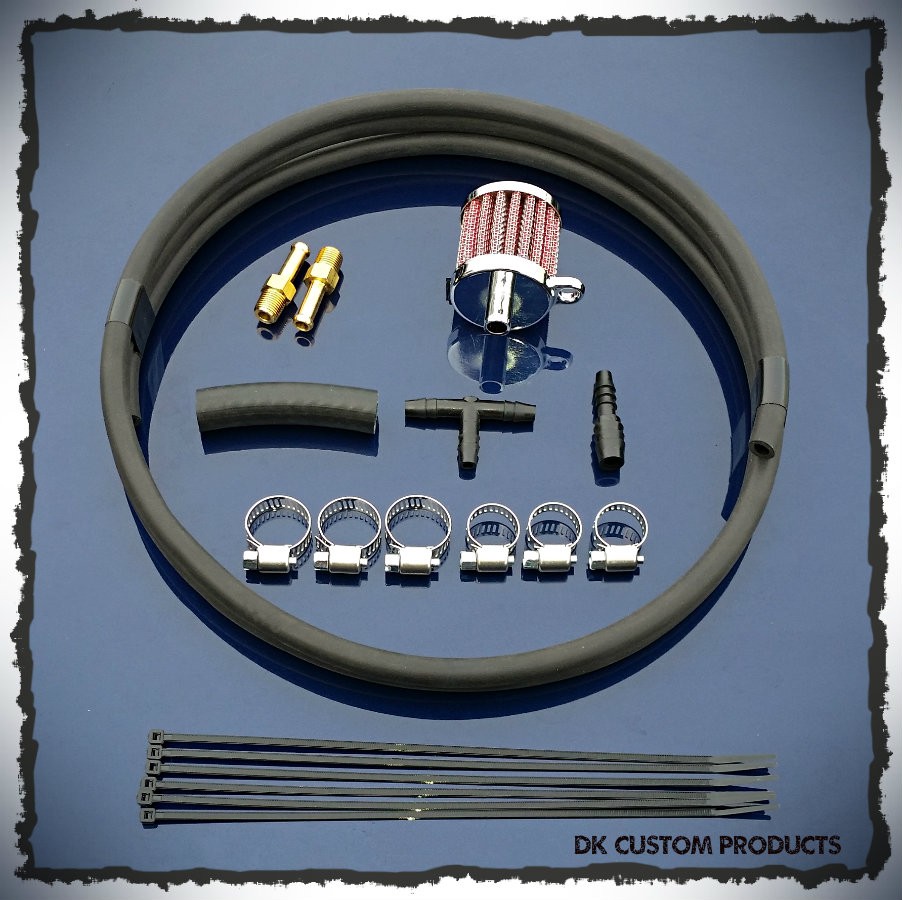

  • Fits All Air Cleaner Systems w/ Stand-off back plates
  • Allows Discrete Placement of the supplied filter
  • Chrome Washable Reuseable Filter - flexible placement
  • Includes 6 feet of hose for maximum flexibility in filter placement
  • DIY Kit requires drilling & tapping
  • Includes Step-by-Step instructions

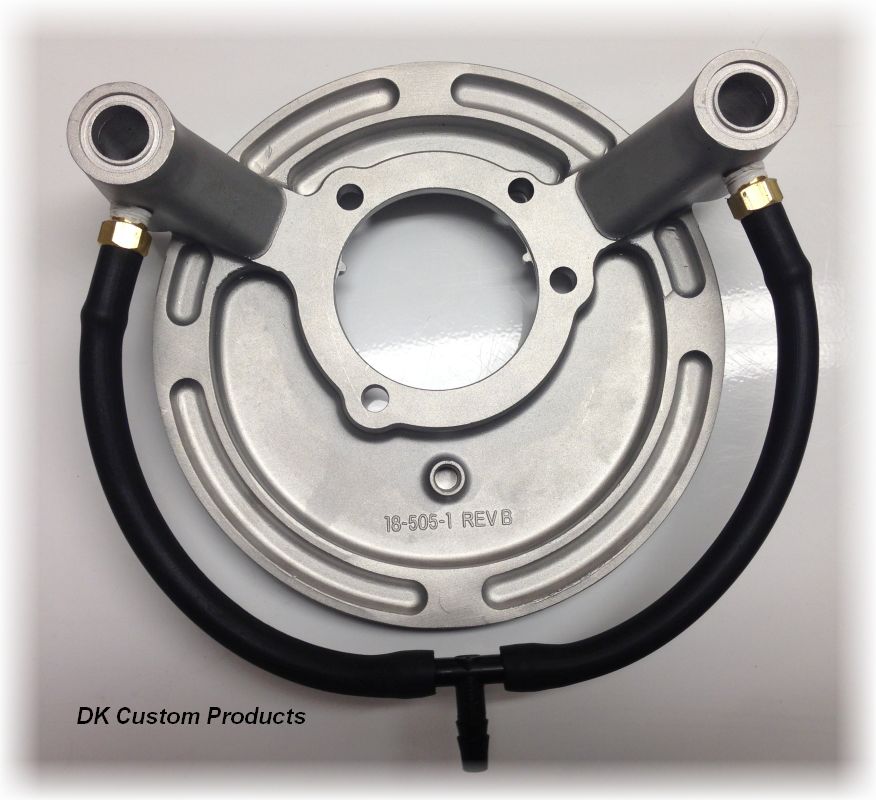

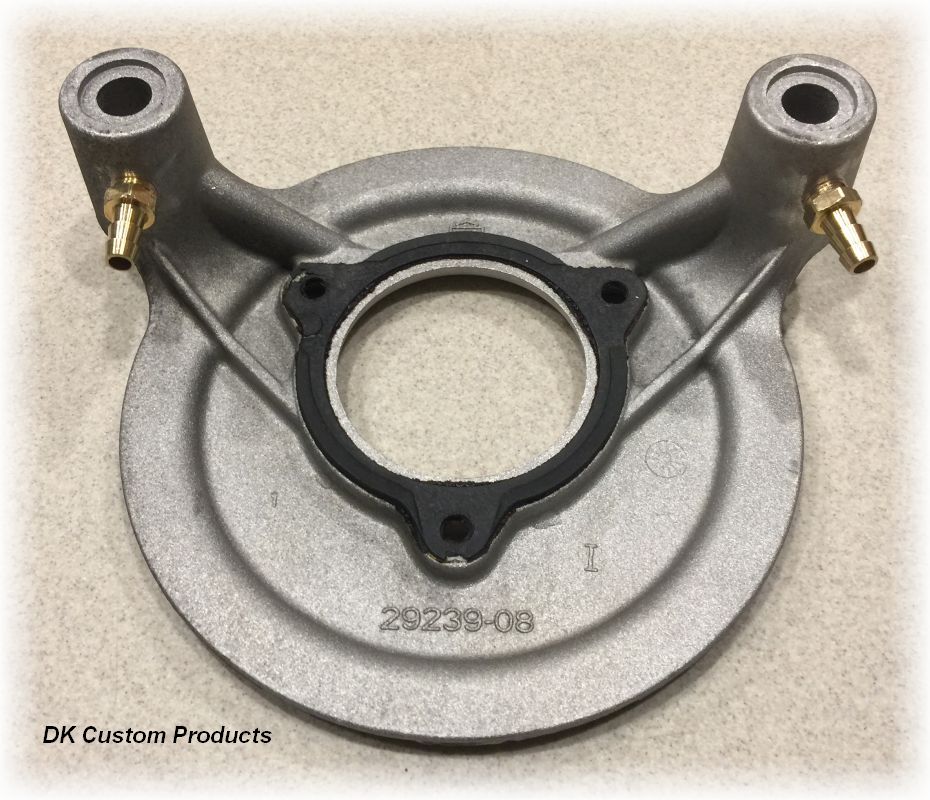

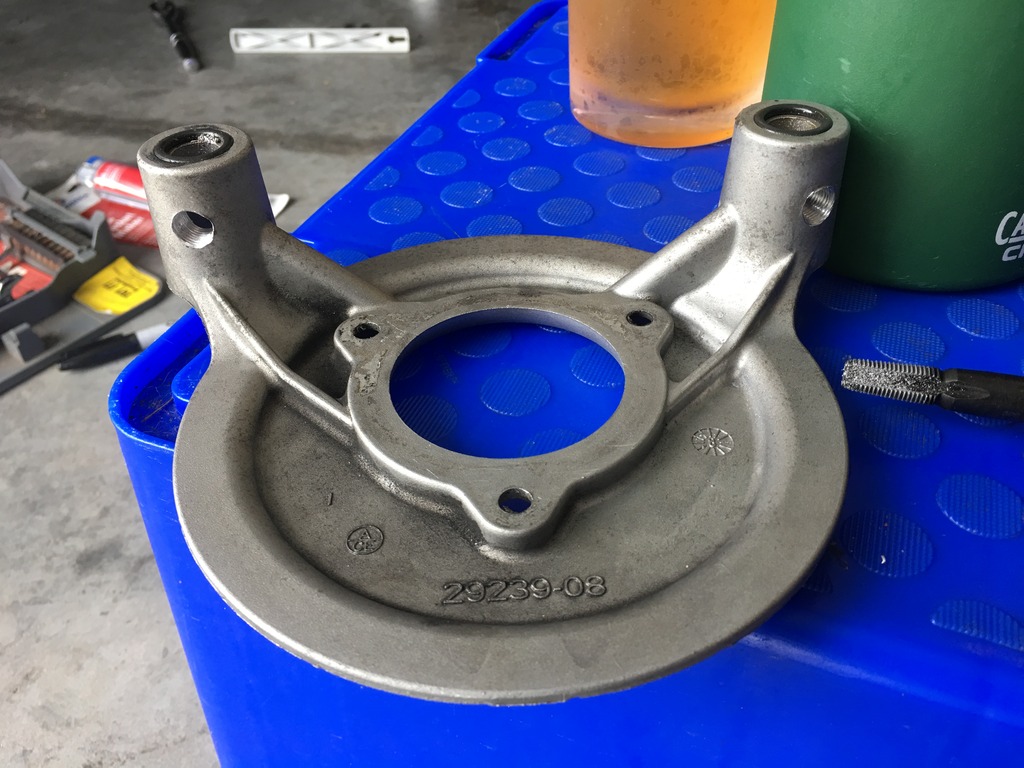

In the picture below you can see the stand-offs that are part of the backplate (that butt up against the heads).  This system includes hose barbs that can be threaded into those stand-offs and allow you to vent externally, as discretely as you would like.

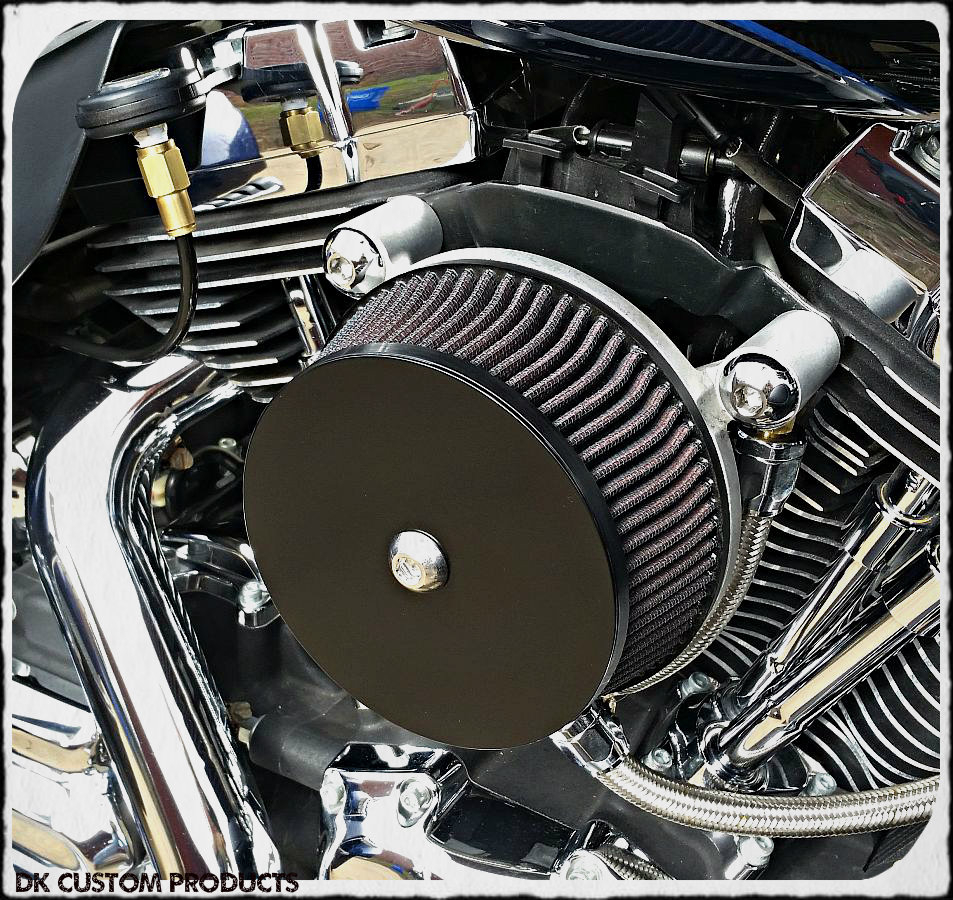

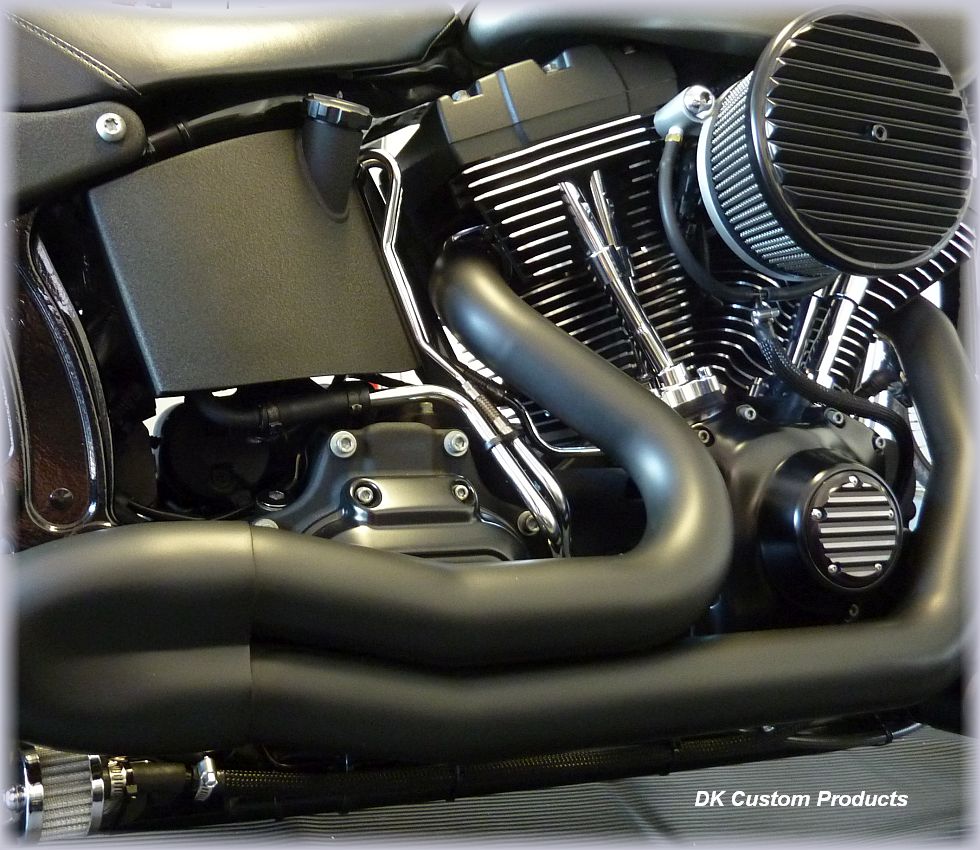

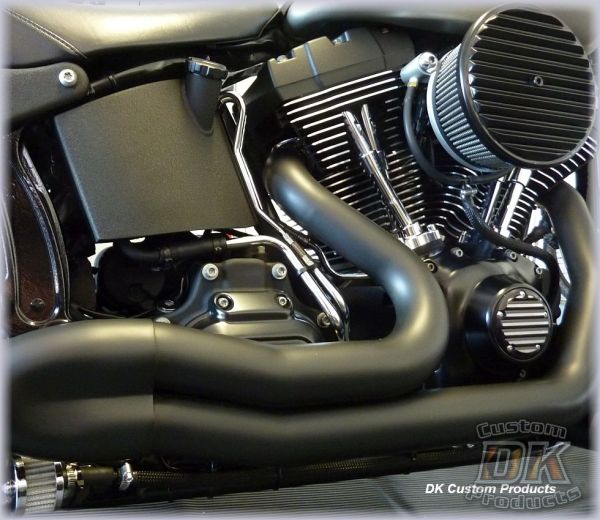

This Picture is showing an Ness Big Sucker Air Cleaner that has our Sano Black Air Cleaner Cover, specifically made for Big Suckers & HD Stage I Air Cleaners.  You can see this cover HERE.


An external Breather Kit is preferred with any Air Cleaner System.  This allows for only clean cool air to go into the air cleaner and engine, increasing performance and engine longevity.

This DIY kit is designed for aftermarket Stage 1 Air Cleaners that don't allow for venting out the end of the breather bolt.  It can even be used with the stock air cleaner.

The EPA has required Harley to route hot, dirty, oily crankcase air back into the air cleaner compromising the performance of your engine. This vents it without compromising the performance and longevity of your motor.

With this breather system you will experience a slight performance increase.  This is because engines like Cold Dry air!

Fits All Twin Cam & Milwaukee-Eight Models - 2000-Up Touring & Softail, 1999-Up Dyna

Fits All Sportsters & Big Twin Evo Models - 1991 & Up

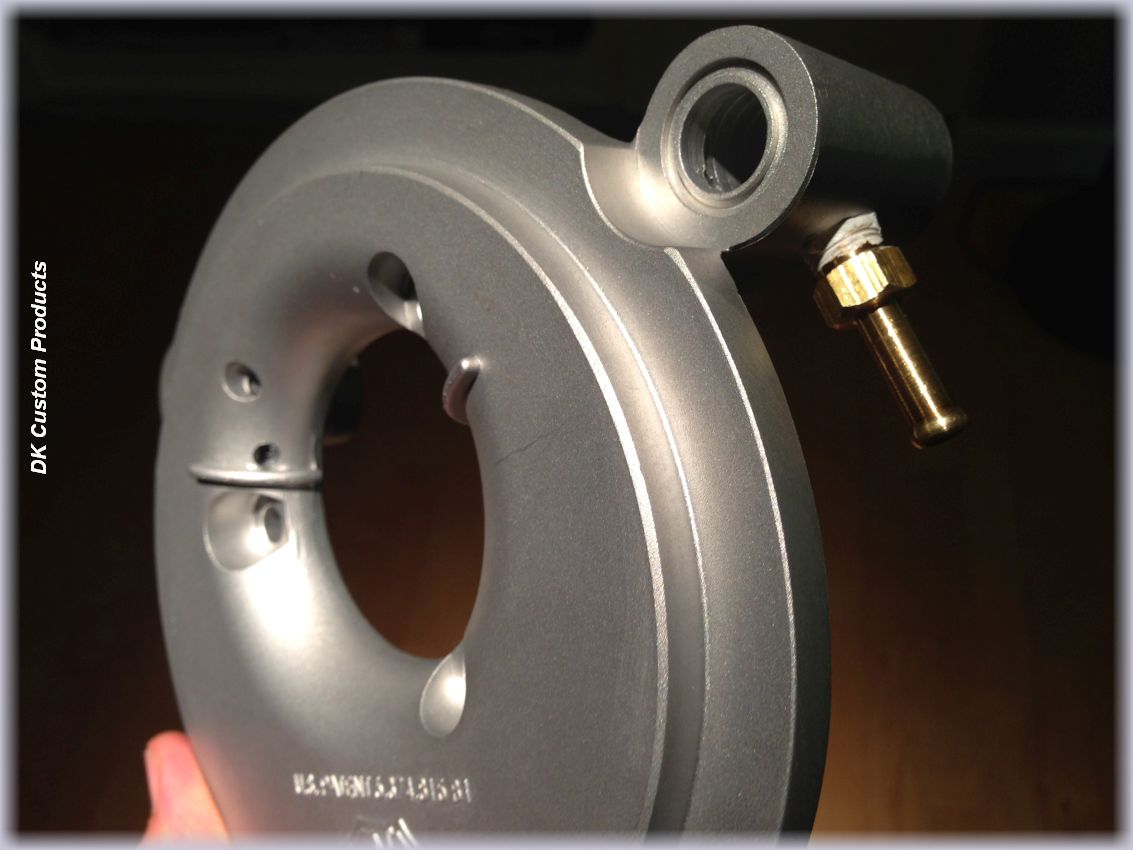

*This kit requires drilling (11/32" drill bit) and tapping (1/8" NPT Tap) threads into the stand-offs (that are part of the backplate).  The benefits are that you can completely hide the hoses, if you wish, and it will work with air cleaners where no other external venting system will work.

Drill bit & Tap kit is an option above.


If your air cleaner system will accept the Stock OEM breather bolts, we have other breather kits that are straight bolt on, not requiring any drilling or tapping.  You can see the one for the Sportster HERE, and the one for the Twin Cams HERE

Filter may, or may not, have a small loop in it.  This does not affect the aesthetics or installation choices.


Caution:  Motorcycles modified with this DK Custom Products High-Performance part may not be legal for public highway use in some areas.  The user shall determine suitability of this product for his or her use.

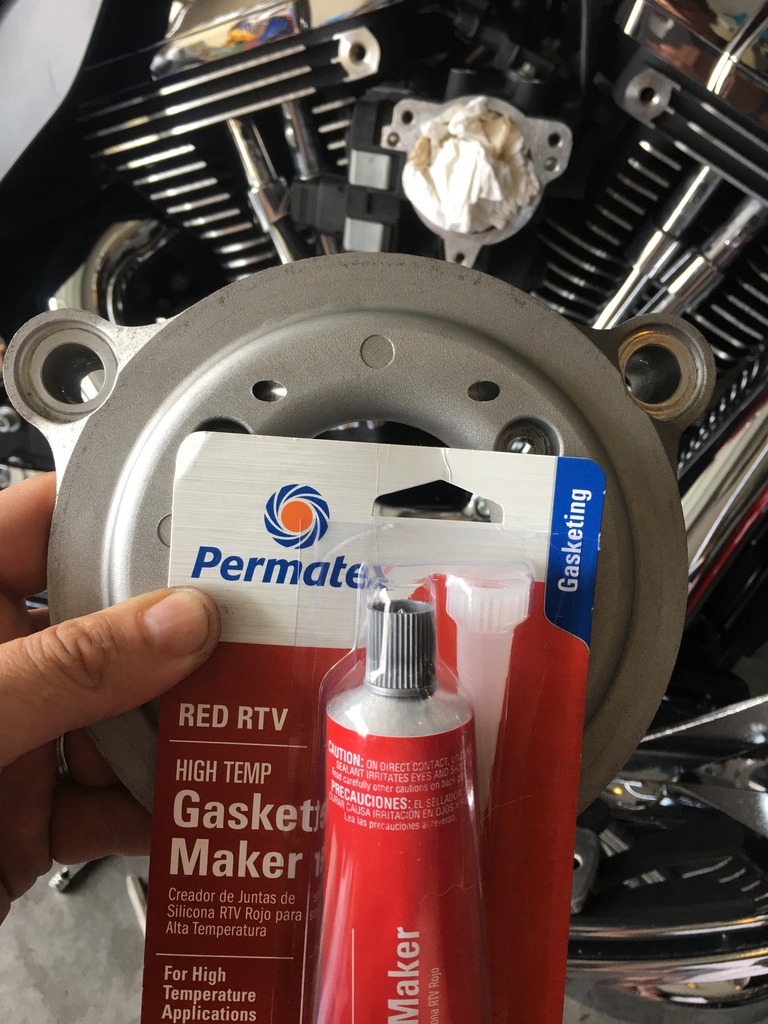

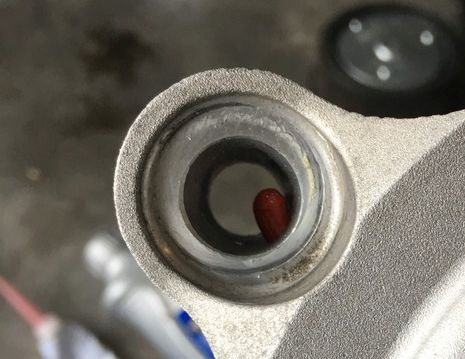

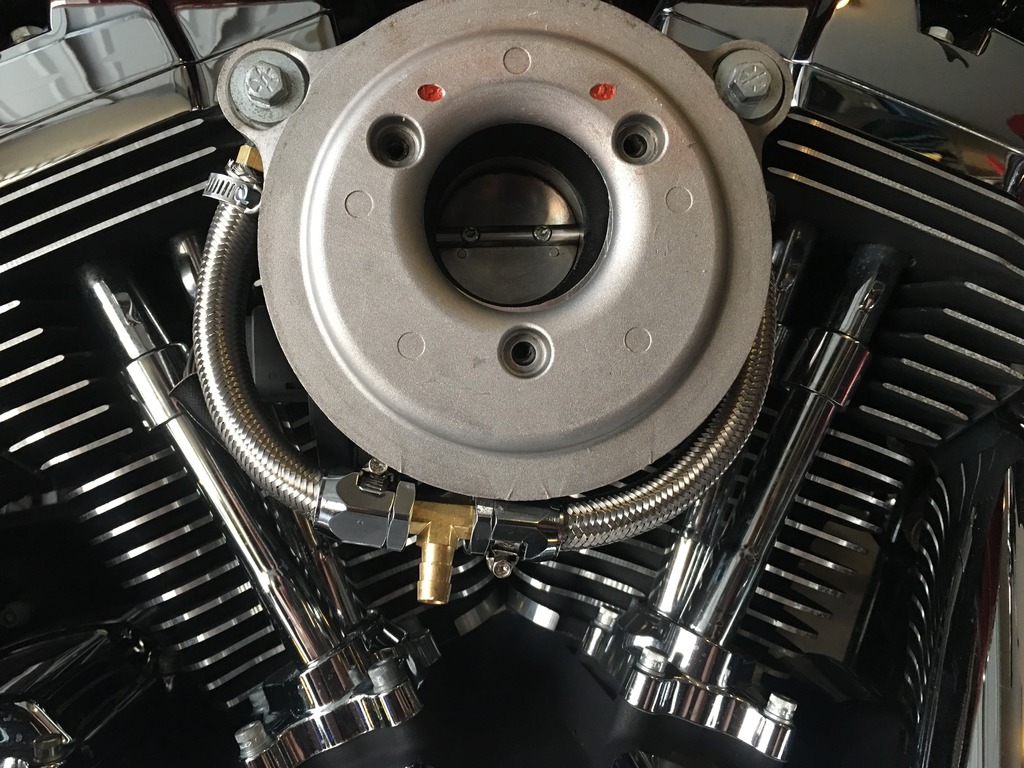

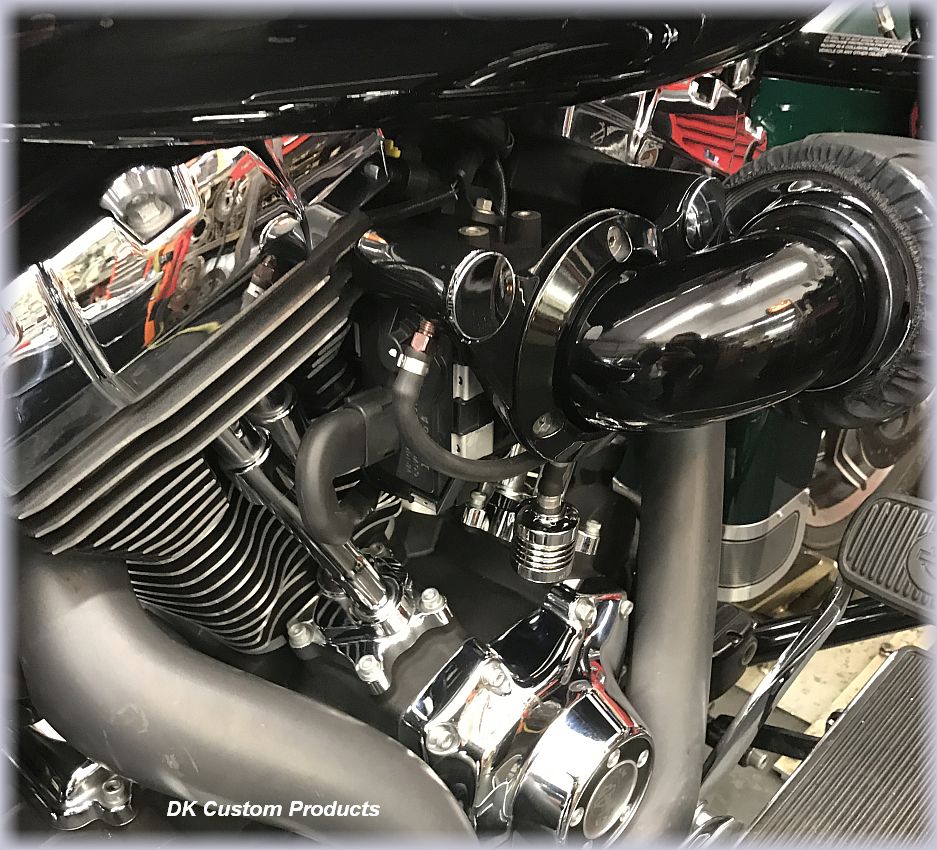

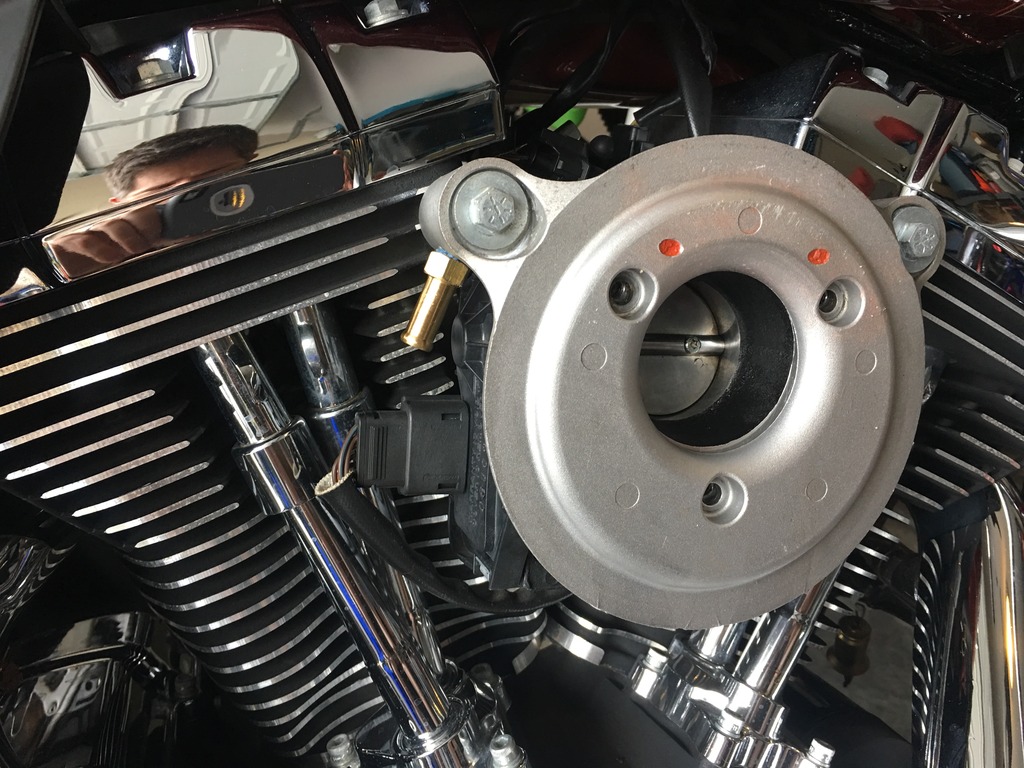

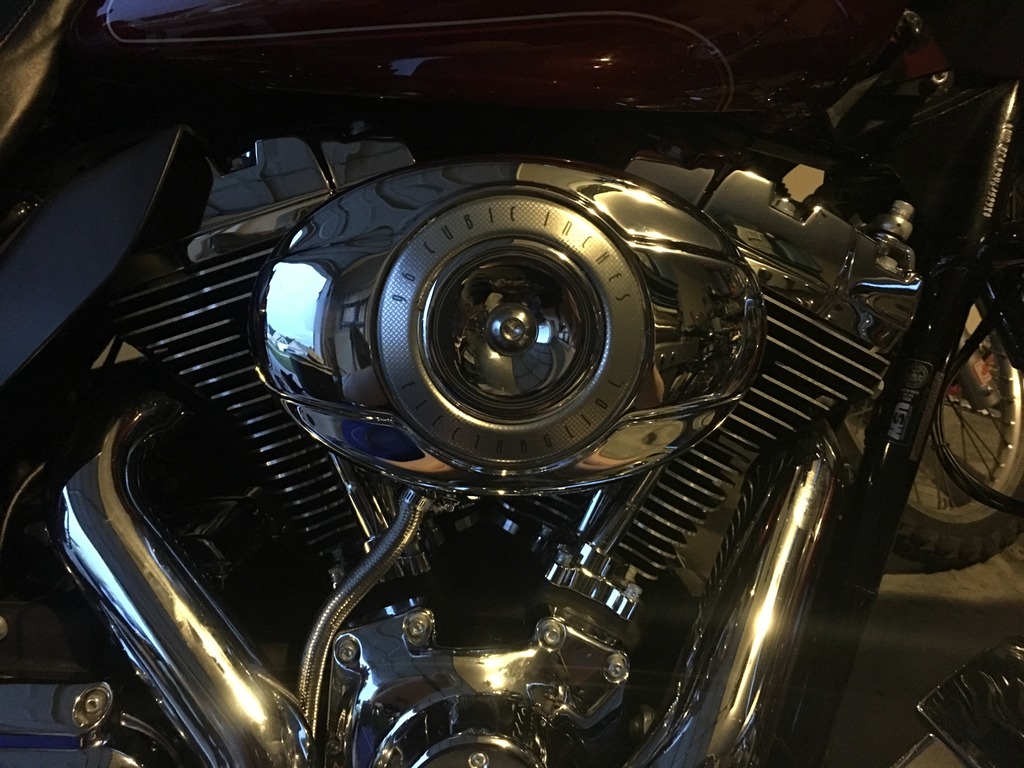

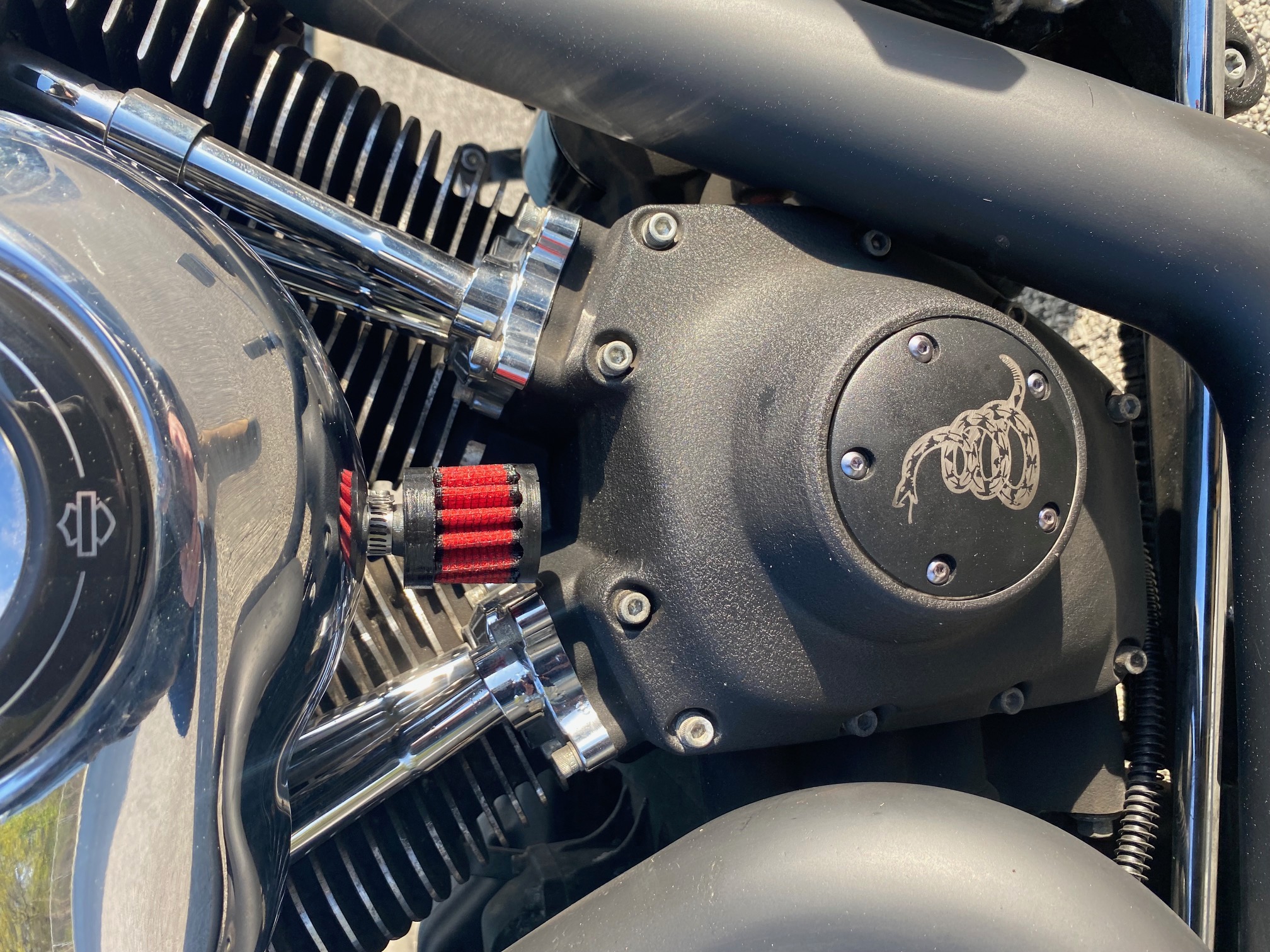

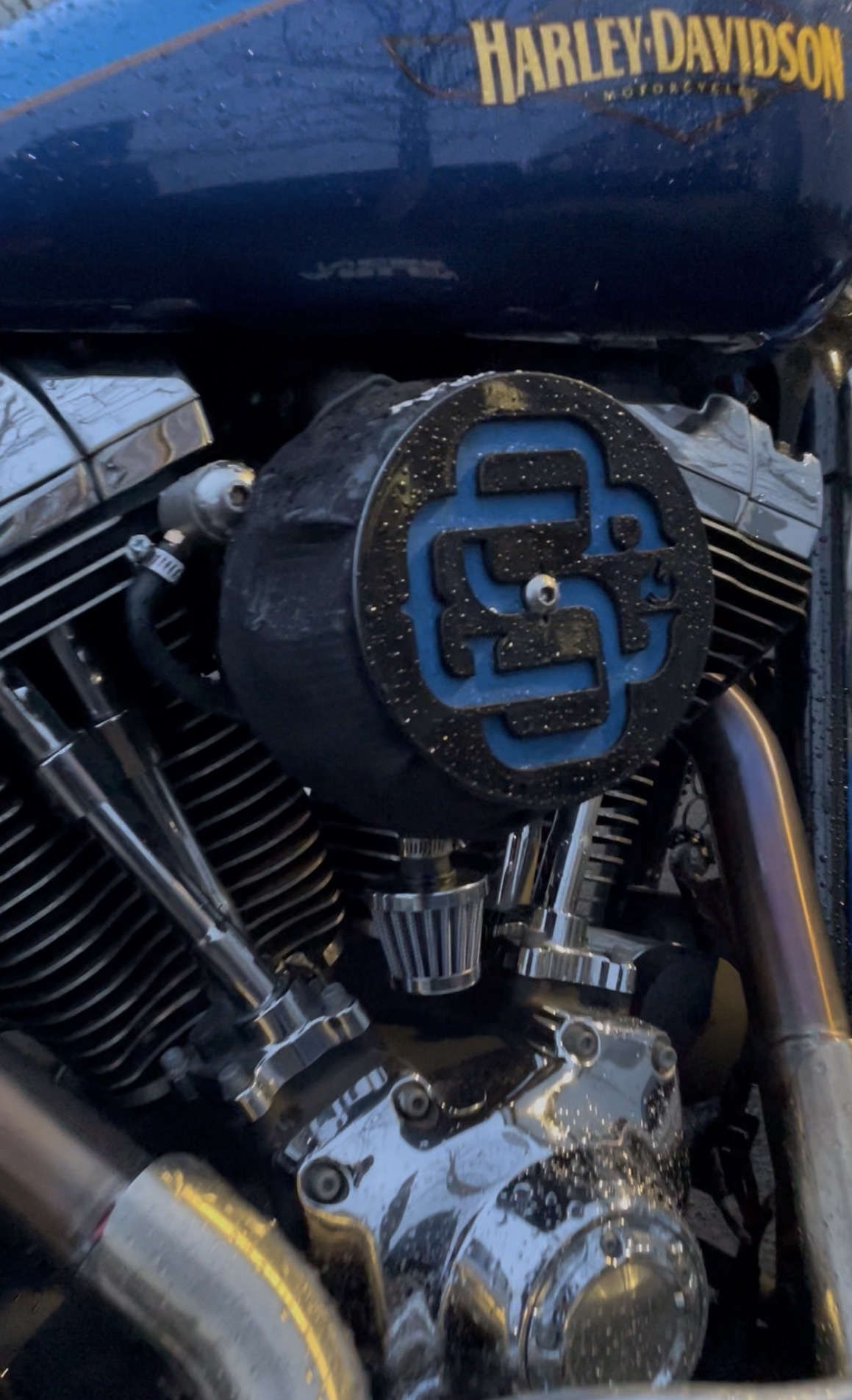

Below are some photos showing various stages of Installation on several bikes.

For full instructions, please look at the Instructions tab.













Customer Reviews

Convenience of kit. Review by Mike
The kit had everything I needed for installation. The quarter inch pipe tap worked great and it was nice having the proper bit size included. The installation went without a hitch. I’m going to install their oil filter re locator next oil change. (Posted on 7/30/2020)
Quality products 2016 Heritage Review by HARLEYJOE
Getting a lot of oil in air cleaner installed the kit very easy. Everything I needed top notch parts and service. I ordered the coil relocation kit also fit perfectly very satisfied. Would recommend DK if you want quality parts and great service. I’m going to order the oil filter relocation kits next when they have a sale Thanks Joe (Posted on 5/26/2020)
DIY Head Breather Review by Fred
Was Getting Blow By on My 18 Road Glide Special Now an then,Would be oil on Right Saddlebag an bottom of Air Cleaner.I run a Arlen Ness Big Sucker Under Stock Cover.This kit allows you to hide filter good.Have put 300 miles on no more blow by.Easy to install good instructions. (Posted on 8/12/2019)
External Breather Review by Rod
Works great so far, installing was simple with easy to follow instructions (Posted on 5/20/2019)
