DIY Head Breather System w/ Braided Stainless Steel Hose Harley

 59.95
Availability: In stock
Item #: DK-DIY-SSH-BRT
Manufacturer: DK Custom Products

* Required Fields


 59.95

DIY Head Breather System w/ Braided Stainless Steel Hose Harley Touring Softail Dyna Sportster DK Custom Harley Davidson High Flow EBS Outlaw M-8 Milwaukee-Eight Stage I Trike Tri Glide Freewheeler Big Twin Evo Sportster

 DIY Discrete Breather System

Braided Stainless Steel Hose

For

Harley-Davidson

FITS ALL TWIN CAM, MILWAUKEE-EIGHT MODELS & SPORTSTERS


DK Custom Products

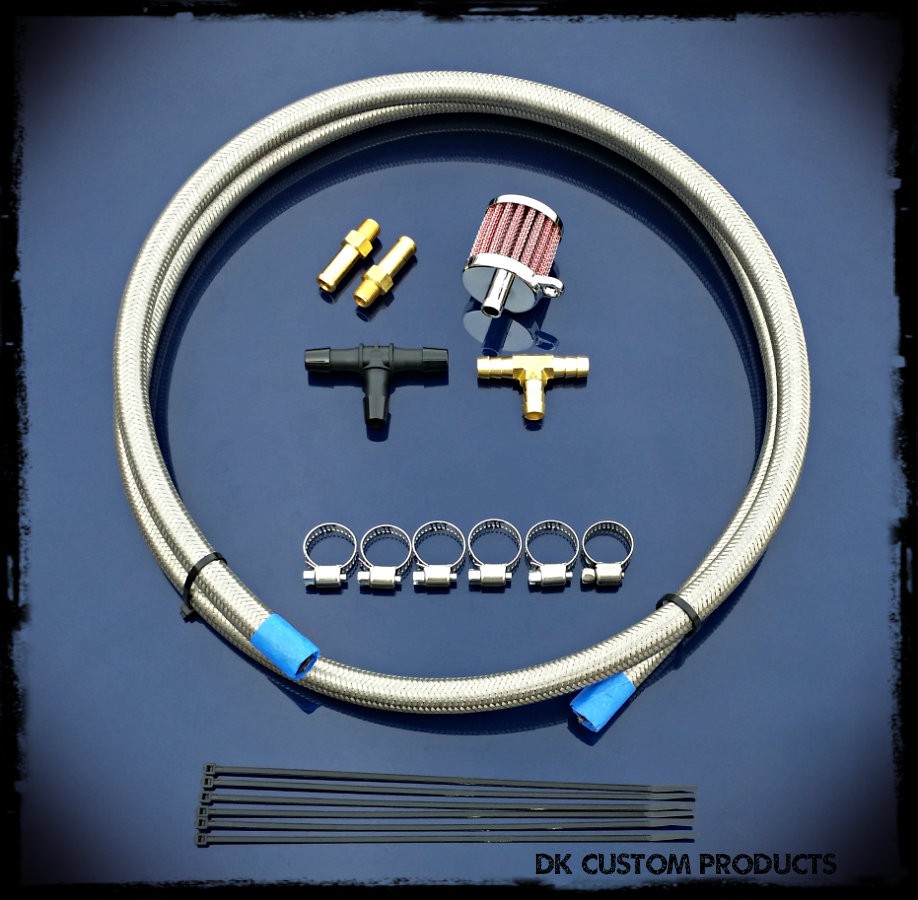

FEATURES & SPECS:

  • Fits All Air Cleaner Systems w/ Stand-off back plates
  • Allows Discrete Placement of the supplied filter
  • Chrome Washable Reuseable Filter - flexible placement
  • Includes 2 feet of Braided Stainless Steel hose (with option for longer lengths)
  • Optional Chrome Hose Clamp Covers
  • DIY Kit requires drilling & tapping
  • Includes Step-by-Step instructions



In the picture below you can see the stand-offs that are part of the backplate (that butt up against the heads).  This system includes hose barbs that can be threaded into those stand-offs and allow you to vent externally.

The picture also shows the Stainless Braided Hose and Optional Chrome Hose Clamp Covers

This Picture is showing an Ness Big Sucker Air Cleaner that has our Sano Black Air Cleaner Cover, specifically made for Big Suckers & HD Stage I Air Cleaners.  You can see this cover HERE.



An external Breather Kit is preferred with any Air Cleaner System.  This allows for only clean cool air to go into the air cleaner and engine, increasing performance and engine longevity.

This DIY kit is designed for aftermarket Stage 1 Air Cleaners that don't allow for venting out the end of the breather bolt.  It can even be used with the stock air cleaner.

The EPA has required Harley to route hot, dirty, oily crankcase air back into the air cleaner compromising the performance of your engine. This vents it without compromising the performance and longevity of your motor.

With this breather system you will experience a slight performance increase.  This is because engines like Cold Dry air!

Fits All Twin Cam & Milwaukee-Eight Models - 2000-Up Touring & Softail, 1999-Up Dyna

Fits All Sportsters & Big Twin Evo Models - 1991 & Up





*This kit requires drilling (11/32" drill bit) and tapping (1/8" NPT Tap) threads into the stand-offs (that are part of the backplate).  The benefits are that you can completely hide the hoses, if you wish, and it will work with air cleaners where no other external venting system will work.



Drill bit & Tap kit is an option below.





If your air cleaner system will accept the Stock OEM breather bolts, we have other breather kits that are straight bolt on, not requiring any drilling or tapping.  You can see the one for the Sportster HERE, and the one for the Twin Cams HERE

Filter may, or may not, have a small loop in it.  This does not affect the aesthetics or installation choices.

Caution:  Motorcycles modified with this DK Custom Products High-Performance part may not be legal for public highway use in some areas.  The user shall determine suitability of this product for his or her use.

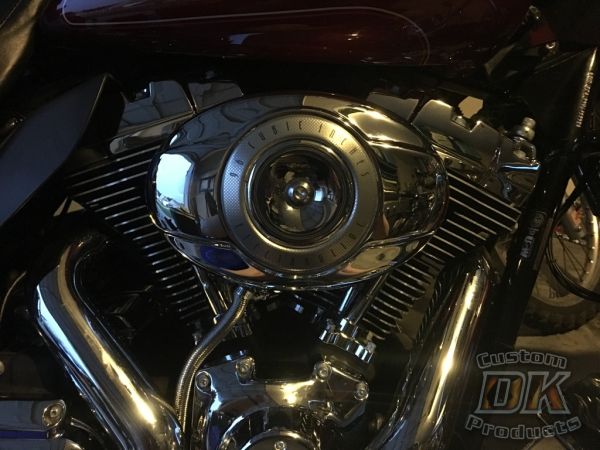

Below are some photos showing various stages of Installation on several bikes.

For full instructions, please look at the Instructions tab.
