Dyna Model Tank Lift kit

49.95
Availability: In stock
Item #: DK-DYN-TLK
Manufacturer: DK Custom Products

* Required Fields


49.95

PREMIUM 2" TANK LIFT KIT FITS HARLEY-DAVIDSON ALL DYNA MODELS 1999-Up Super Glide, Super Glide Custom, Street Bob, Low Rider, Wide Glide, Fat Bob  DK Custom Products

PREMIUM CNC BILLET

TANK LIFT KIT

FITS ALL HARLEY-DAVIDSON DYNA MODELS 1999-Up

Super Glide, Super Glide Custom, Street Bob, Low Rider, Wide Glide, Fat Bob

   MADE IN THE USA!
By
DK Custom Products



FEATURES & SPECS:



  • Made from 6061 Billet Aluminum
  • All Stainless Steel Hardware
  • Includes Thread Protector Caps
  • Choice of Durable Black Powder Coat Finish OR Machine Cut Finish
  • E-Z BOLT-ON INSTALL - DOES NOT REQUIRE REMOVAL OF TANK
  • Instruction Sheet Included



This is the TOP OF THE LINE Tank Lift Kit. Our product line includes: 2", 2.5" & 3" inch rise kits.  They are different (purpose-made & patented)...no extra metal or holes for multiple fitments, the lines match the lines of the bike. American Made. You probably will not need the longer fuel line or vacuum line, but they are included in case you do.

These are precision cut on our CNC machine from 6061 Billet Aluminum.  You have a choice of the Machine Cut Finish, which can be polished to a Mirror FInish, OR choose the Powder Coat Black Finish.

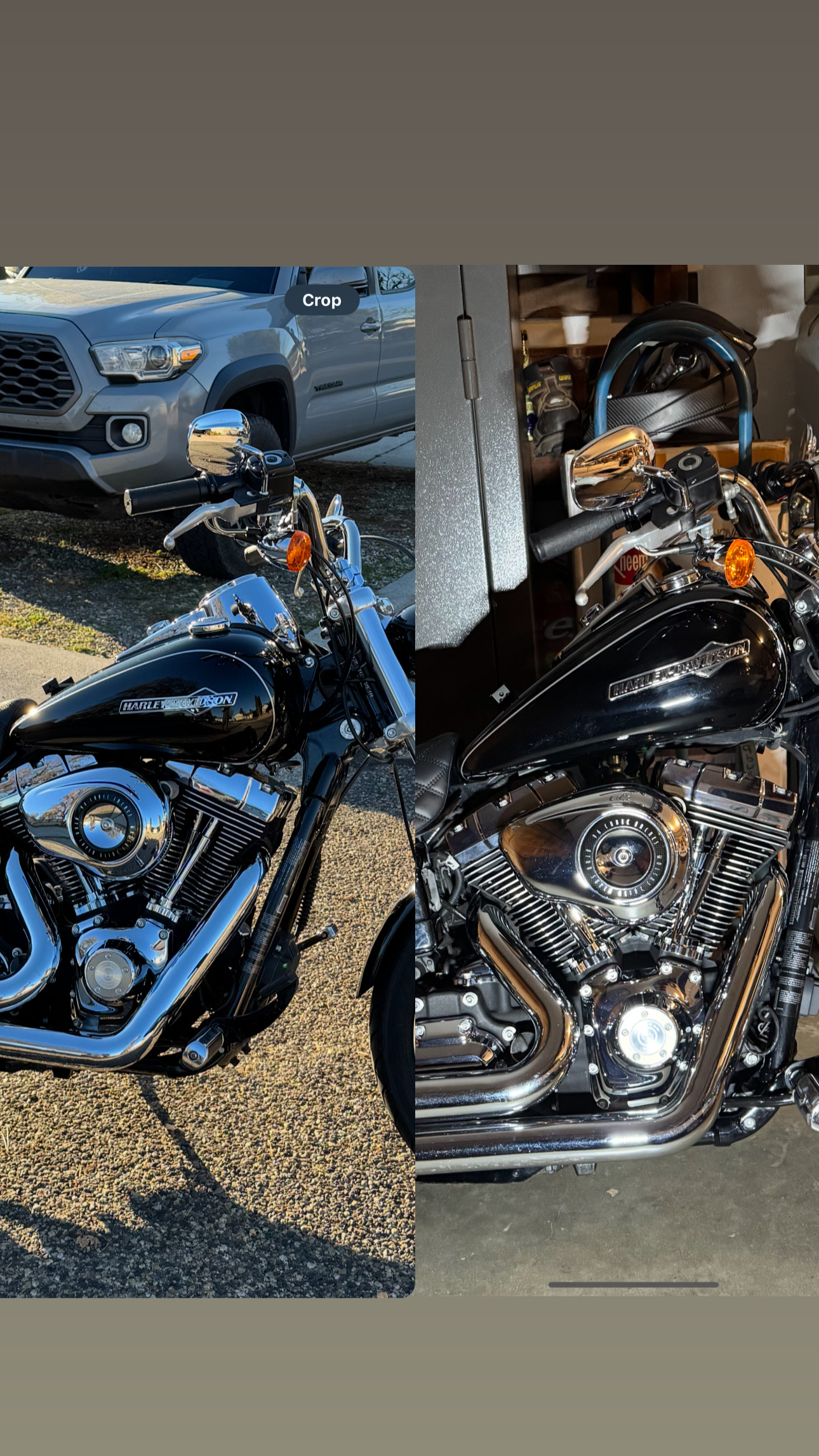

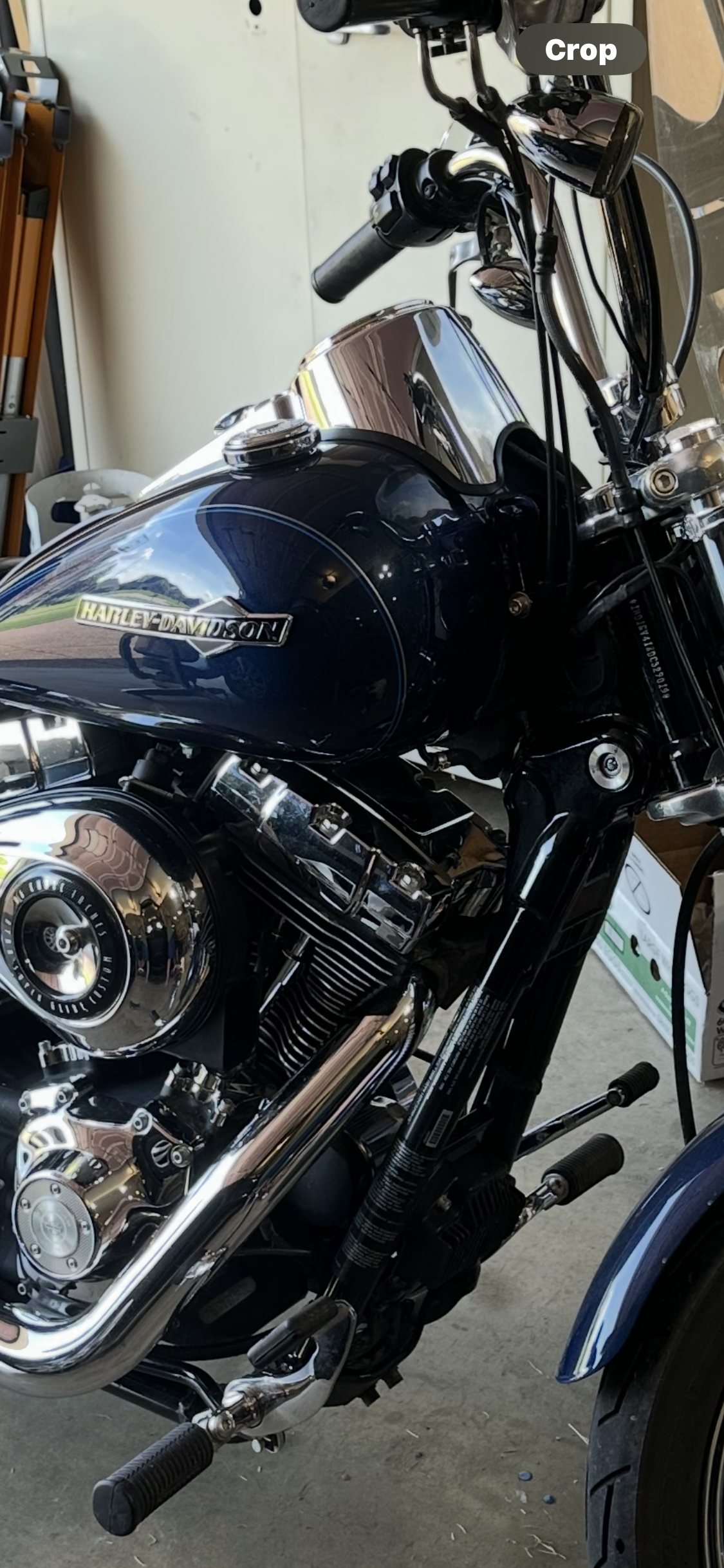

Look at all the pictures...the BEFORE & AFTER pictures show what a difference this easy-to-install kit makes!

Now you can see your Rocker Covers! Without this Kit all that chrome is Hidden!

This is the way the Motor Company should have put the tanks - Much Cleaner Line!

Worried about running hot? This Kit Provides Better Air-Flow - Engine Runs Cooler


This is an EASY install - 10 to 20 minutes!

Fits
ALL 1999-UP DYNA Models - Super Glide, Super Glide Custom, Street Bob, Low Rider, Wide Glide, Fat Bob

The Deluxe Option lifts the rear of the tank AND allows you to move the tank back up to 3/8".  This is a nice option for some appplications, full details HERE2010-Up Dyna Owners, PLEASE READ the Details on the Deluxe Option before ordering.

IMPORTANT FITMENT NOTES:

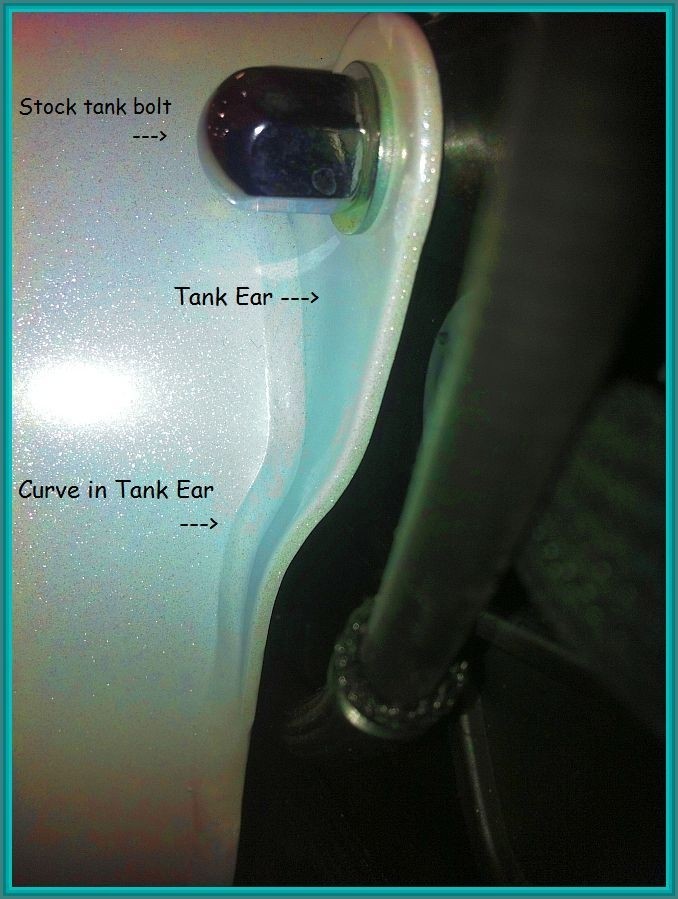

Most 2010+ Dynas have a curve in the tank ear (see picture below).  Please check and see if yours has a curve in the tank ear.  If it does, please select that option so we can send the correct kit for your bike. (Just check the curved tank ear option before you add the product to your cart.)

Please make sure this mod does not interfere with any components on your bike - like  handlebars, turn signals, custom trees, etc.  You don't want to end up with a dented tank!  Check for clearance before ordering. Checking for clearance not only allows you to insure fitment, it also allows you to see which size will look best with your bike!
We are NOT responsible for any damage done to your bike because of the kit.


It is easy to check for clearance:

1. With bike on kickstand, take the bolt out of the front of your tank.

2. Loosen (do not remove) the bolt at the rear of your tank.

3. Turn your handlebars all the way to the left and raise the tank up your desired tank lift height to check for clearance issues.

4. Turn your handlebars all the way to the right and raise the tank up your desired tank lift height to check for clearance issues.

Be careful when lifting your tank, you do not want to hit it against something (forks, handlebars, trees, blinkers, etc.) when checking for clearance.









"The best and cleanest (Tank Lift Kit) we've seen are the ones DK Custom manufactures."  Green Mount Road Harley-Davidson



"Got to me fast, and was an easy install, best of all, It Looks Rockin!!!  Thanks." -Lilly

U.S. Patent D650,316 S

Click on the link below for an article on everything you need to know about Lifting your Tank.

-Will if fit?

-Will I lose fuel capacity?

-What is the purpose of a Tank Lift?

-Does it reduce Wind Buffeting?

What is a Tank Lift and why do I need one?

Customer Reviews

Quality
Value
Super easy Look cool Review by Craig.F
Titel says it all is so easy to install bike looks much better safer to read speedometer at higher speed. (Posted on 9/13/2020)
Quality
Value
Top quality Review by TJ
Installed 2" lift on 2017 Dyna Street Bob, needed to replace breather hose but crossover fuel line is just long enough to leave existing. But that's just Lucky I reckon. All & all I'm glad I found DK CUSTOMS, lift kit looks awesome (Posted on 8/17/2020)
Quality
Value
Great Product! Review by Marahall
I just finished in stalling my DK Customs 2" tank lift on my 2015 Dyna Wide Glide. What a perfect fit and simple install! Things you may not even need to install, still comes with the kit. They just make sure you have all you need.
Everyone at DK Customs are true professionals.
When i send an email asking a question or just thanking them again for all there help. I always get a quick, detailed and to the point response back. Forever a Customer!
(Posted on 8/11/2020)
Quality
Value
More good than bad Review by Messkit
Did a 2" lift, which required a longer breather hose, but the fuel hose is still not touching the frame, so I left it alone.

While the bottom of the tank is still looking level-ish, the top is noticeably angled more, for a better raked look, which I was hoping for.

The mechanical fuel gauge, and the digital gauge are way off, but I already know my fill-up mileage for street and highway, and rely on that instead. I'm going to carry a gallon of gas, and run the bike out to know what both gauges say at that point, so it won't be a surprise when it happens for real.

The kit is solid when installed, easy to do, and almost looks factory. The quality of the pieces is top notch, which was a pleasant surprise in these days. I used blue loctite to secure everything, and so far it remains safe.

While the price seems high for so little hardware, the satisfaction is worth every dime. (Posted on 7/17/2020)
Quality
Value
Nice Product Review by Boogieman
Installed the tank lift kit on my 2009 FXDC. Had to extend the fuel vent line, the fuel crossover line was fine. Very simple install. Looks great!!! (Posted on 7/8/2020)
Quality
Value
Great product! Review by Rich
Best simple mod I've done to my 05 Wide Glide. I'm very happy with the quality, ease of installation and how good the tank looks lifted 2"! The bonus is the cooling benefit. I first went the cheap route and made my own lift but never kept it on because it seemed flimsy and didn't look anywhere near as tight as the DK Customs lift. If you're on the fence, just get this one... You won't regret it! (Posted on 7/1/2020)
Quality
Value
Buy it Review by Chris
Definitely helps the look of the bike . 2009 Fatbob I had to use the longer cross over hose .
(Posted on 5/26/2020)
Quality
Value
You won't regret it. Review by Dino
This kit is straight forward and looks great. I purchased the 2" kit and I love how I can see my speedometer without looking straight down. It does throw the fuel gauge off enough to notice but I haven't seen any drop in useable fuel yet. If you're looking for a tank lift, this is it. (Posted on 5/20/2020)
Quality
Value
Buy it Review by Dusty
If you’re looking at this tank lift just buy it. You’re just going to keep looking at it til you do. Once you do, it’s easy to install, even by yourself and even if you don’t have a jack you can install this alone. Once it’s on the lift looks great. I got the 2” lift and parts are very subtle look like they could be factory hardware. Highly recommend. DK got this part to my house in no time at all even during the pandemic. (Posted on 5/18/2020)
Quality
Value
Good Product Review by Seth
The lift looks pretty cool on my 2014 Fat Bob. It is messing with the fuel gauge saying it is lower than is there but I can live with it. (Posted on 5/12/2020)
Quality
Value
EXCELLENT. Review by DynaBro1234
DK really went above and beyond. Customer service is amazing. Not only did they fix a shipment mistake but they also prevented me from ordering a part I didn’t need. The product itself is perfect, quick and easy install and it even comes with extra lines in case you need them. 100% recommend DK customs. (Posted on 5/7/2020)
Quality
Value
Great Product! Review by Coleman
They give you everything you need for this! The delivery time was fast, and it looks really stylish. (Posted on 2/11/2020)
Quality
Value
Looks great simple install Review by Curns Moore
Love the way it turned out! Quality finish on the lift components! I paired this up with the deluxe options looks awesome thanks ! (Posted on 11/11/2019)
Quality
Value
2” Tank Lift Review by GMF
Really gives my dyna a bit of attitude! (Posted on 11/9/2019)
Quality
Value
2” dyna tank lift Review by RonC
Easy install on my 13’ street bob! Great product, looks are amazing, more airflow, all around win win!! I recommend this! (Posted on 7/30/2019)
Quality
Value
Excellent Product Review by fhartell
Installed 2" black finish on my 2014 FXDF w/ curve tank and I love it.
I did have to remove the back tank bolt for the spacers to clear the tank in the front during the install. Also had to install the crossover due to the fact I had the braided crossover and it's too short. Otherwise it's a really easy install! (Posted on 7/28/2019)
Quality
Value
Excellent Review by Dave
Works good, looks good! (Posted on 7/23/2019)
Quality
Value
Amazing Review by Kelvin
Shipping was ridiculously fast. Product arrived as described and installed with insane ease. (Posted on 6/25/2019)
Quality
Value
Got Lift?? Review by Japan Dyna
DK Customs does it again! A nice quality product that looks and works well. I upgraded their original version I bought a few years ago since billet and stainless hardware. It fits well and other than I hate my inaccurate fuel gauge, it is worth it to have the look and additional air to the top of the motor. Anytime you can cool these high heat beasts, it will extend life to the motor. Nice product and well done DK Customs!!! (Posted on 6/19/2019)
Quality
Value
Could not be happier Review by Maddog33
I got the 2.5 inch lift for my 2012 FXDF and it looks great. Had to lengthen crossover and breather hoses but with everything included install is a breeze. Very good bang for the buck. (Posted on 5/8/2019)
Quality
Value
Good stuff Review by Travis
I got the 3 inch for my 09 dyna. Definitely had to use the longer hoses. It's a bit much. I'd go with the 2.5 inch. Love the way it looks though! (Posted on 4/30/2019)
Quality
Value
Dyna Tank Lift Review by Kg4nai
Easy install, everything and more of what I needed to the job. All I had to do was extend the vent tube that was in the kit. Fuel line was not needed.
Kit worked perfectly on my 2017 Street Bob, just make sure when ordering that you look at your front tank mount and see if it has the curved ear or not and order the correct kit.
I did the 2 inch front lift and it looks seriously cool. It raised the tank up off the jug and changed the line of the bike, more air flow and just bad ass. Highly recommend doing it. I’m 56 and my cool points went up by at least 20 points , ride safe and be cool out there (Posted on 4/29/2019)
Quality
Value
Great lift!! Review by Rick
Shipping was fast prefect transaction A++ (Posted on 4/17/2019)
Quality
Value
Love it Review by Argeneral
Purchased the 2in lift for my 04 dyna. Looks great, I like the design better than others on the market as these are not as wide. Very easy to install. I also purchesed the delux lift for the rear. The combo looks awesome and air flow is great (Posted on 4/5/2019)
Quality
Value
The tank lift is great!! Review by Dane
The tank lift is great..looks good and does give better air flow and therefore better cooling..
If you can do the rear lift aswell because if you just do the front it does put your fuel gauge out a little bit..keeping it more level will make it more accurate.. (Posted on 3/9/2019)
Quality
Value
2.5” Tank lift Review by Harley111
Very high quality product. Love the way it makes my bike look. All accessories included.
Thanks (Posted on 2/6/2019)
Quality
Value
Amazing Product Review by Jason
Great quality product and really helps improve the look of the bike (3in lift). Very straight forward install and in about 10 minutes complete from start to finish. Having a close to empty tank really helped too.

On top of great quality product, I ordered several products on a Sunday night and received a message that the order was placed on hold early Monday morning. I was contacted about part of my order not being necessary and how to accomplish the same thing without their product. It was also pointed out that my discount (10%) was not applied either. Saving a total of $35 on my order, great customer service!
(Posted on 3/15/2018)
Quality
Value
Quick and easy Review by Tipo Serio
I got my Street Bob a 2 inch lift and it’s just what it needed. The extra airflow will hopefully keep the engine cooler in summer and it looks awesome!
(Posted on 11/10/2017)
Quality
Value
Subtle, and awesome Review by Jason
I put a 2 inch on my 2016 denim black fat bob... the effect is super subtle, like you know something's different and can't really put your finger on it, and those are my favorite mods. You can see the top of the front rocker box and it took about 10 minutes to install. Great quality too. (Posted on 9/1/2017)
