Pro-Action / DK Custom 14" Harley Trike Series Shocks™

Availability: In stock
Item #: DK-SHK-14-TRI
Manufacturer: Pro-Action/DK Custom

* Required Fields

Characters left: 100

Characters left: 100

Characters left: 100

Characters left: 100

Characters left: 100

Characters left: 100

Characters left: 100

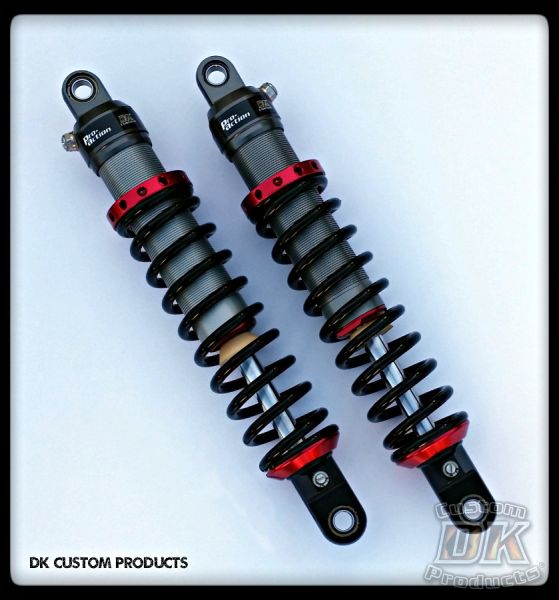

 Harley-Davidson DK Custom Products no more dragging pipes Level out Pro-Action/DK Custom Trike Series Shocks

 Tri-Glide Comfort Lift Kit Harley-Davidson DK Custom Products no more dragging pipes Level out Pro-Action/DK Custom Trike Series Shocks





For Harley-Davidson




Features & Specs:

  • CNC machined T6061 aircraft quality billet aluminum
  • 3 stage incrementally pressure sensitive self adjusting compression valving
  • 2 stage pressure sensitive rebound system
  • Light weight-under 2 lbs.
  • Nitrogen gas charged with coil over spring
  • Hard coat anodized
  • 12 port high flow piston
  • 14" Shocks - Longest travel
  • Hand adjustable threaded spring pre load adjuster
  • Externally adjustable free bleed control
  • Stainless steel spherical bearings in shock eye
  • Sold as a Pair
  • Developed Specifically for HD Trikes
  • Proprietary charging system
  • Easy Installation
  • Limited Lifetime Warranty


 A Break-Through in Harley-Davidson Trike Suspension

See Full Report HERE

Custom Tuned to Your Trike & Your Riding Style/Loads


  • Co-Developed with DK Custom Products, these 14" Pro-Action Trike Series Shocks™ are a Break-Through in Ride Quality for Harley-Davidson Trikes.
  • With More Travel, afforded by the 14" Shocks, the ability to eat up small and large bumps, turning the harshest jolt into a smooth dip is un-matched.
  • The T6061 Billet aluminum bodies house a unique 3-stage progressive valving system for compression, and a 2 stage rebound system.  Coupled with "fit to you" coil over springs that have an adjustable pre-load, you will be amazed how much smoother and more stable your trike will ride.
  • These Trike Series Shocks™ are 14 inches tall.  Designed to work with the DK Custom 14" Convertible Comfort™ Lift brackets, they not only give you the most suspension travel available for an HD Trike, they also level out your Trike.  No more dragging the tail end.
  • When you order you will be asked some easy questions.  Your answers give us the information needed to use the correct spring rate for your shocks, as well as giving us the info needed to adjust the pre-load and rebound for you.  This way when you receive the shocks they are already set-up for you.  Simply bolt them on and ride!


See the Shocks in Action




Fits all 2009-2016 Harley-Davidson Trikes (Tri-Glide, Freewheeler, FLHXXX) with or without a 14" Convertible Comfort Lift™

Fits 2017-Up Tri-Glide & Freewheeler when used with a 14" Convertible Comfort Lift™

Note: Even though the 2009-2016 Trikes will run this Trike Series Shock™ without the 14" Convertible Comfort Lift™, they will sit more level and ride smoother with a 14" Convertible Comfort Lift™.

Click HERE to see details on the 14" Convertible Comfort Lift™

Click HERE to see a Special Package that has both the 14" Trike Series Shocks and the 14" Convertible Comfort Lift™


Limited Life Time Warranty Details:

Only for the original purchaser of the shocks
Does not cover accidents, fire, environmental catastrophes (submerged in a flood, etc.)
Does not cover if the shocks were abused (overloading them), improper installation
If they are installed properly, not overloaded, not damaged by some external force, then they are Lifetime shocks for the original purchaser....if they wear out, they will be rebuilt/replaced  at no charge.


Click HERE for More Information on our Testing of Performance Rear Shocks


"I've finally reached my goal, that I have been working towards for over 100,000 miles of Tri-Glide riding, getting my Tri-Glide to float over ALL the bumps as smoothly as a Softail." Kevin



"Thank goodness for DK Custom Products...TSS shocks I put on a couple of weeks ago.  The trike's ride is improved incredibly.
My wife and I simply could not believe it was the same vehicle.
...handle like a sports car through the curves, with no bouncing, body rolling, etc., just flat and smooth through the yourself a favor and get a set of these shocks from DK." -Jerry
"I purchased the new rear shocks, and the only thing I can say is Wow!


The difference is night and day. You won't regret it buying these shocks, the new ride is amazing.-Dan







Click the Rear Shocks Test Report Link below, to learn more about How shocks work.

Also included in the report are charts, showing performance results of stock, middle of the road, and top performing shocks on many Harley-Davidson Models.


Rear Shocks Test Report

Customer Reviews

what a plush ride Review by Firewrench22
These shocks are awesome. When you hit a bump with rear wheel & the factory shocks, it sends your neck left & right. Not so with these. They soak up the bumps so much better. I live 1/4 mile off the asphalt. I could tell the difference as soon as I pulled out of my driveway, and on the road, wow, what a nice ride. Money well spent in my book! (Posted on 2/22/2018)
