Sportster (& some Dynas) Billet Handlebar Top Clamp w/ Indicator Lights Receptacle

64.95
Availability: In stock
Item #: DK-ILB-TPC-BLT
Manufacturer: DK Custom Products



DK Custom Harley-Davidson Sportster Dyna Handlebar Top Clamp Indicator Lights Speedometer Relocation

SPORTSTER INDICATOR LIGHTS

Integrated into

BILLET TOP CLAMP

Fits Most Sportster 1995-Up

(& some Dyna Models)
MADE IN THE USA!

FEATURES & SPECS:

  • Made from 6061 Billet
  • Replaces Most OEM Top Clamps (see fitment note below)
  • Perfect for use with a Speedometer Relocation
  • Keeps Indicator Lights at Top Clamp when Speedo is relocated
  • No cutting of wires or splicing needed
  • CNC Machine Cut Finish (Easily polished to a Mirror finish)
  • Also available in Powder Coat Black Finish HERE
  • E-Z Step-by-Step Instructions Included
  • Lifetime Warranty





This Top Clamp is CNC cut from 6061 Billet Aluminum.  Stock top clamp bolts will fit.

We have a Speedo Relocation kit that goes nicely with this Bracket.  Click HERE to see.





~Fits Most 1995-Up Sportster Models~

(& 06-Up Dyna Models that have the same size Speedo & Indicator Lights as Sportsters)

Direct Bolt-on fitment for indicator lights for all Sporty and Dyna Models except as noted below:

For Fitment on 95-07 Sporty Custom Models & Dyna Models you will need to get the following parts, they are inexpensive and available at any HD dealership-

  • bezel and lens: OEM part number 68513-07A
  • light bulb housing: OEM part number 68516-95

For Fitment on 08-Up Sporty Custom Models & Dyna Models you will need to get the following parts, they are available at any HD dealership-

  •  08-up models harness (68814-07) needs to be replaced with harness 68813-07, bezel 68513-95 and lens 68551-07.

Fitment Note For Clamp Bolt Pattern: There are a couple of handlebar clamps that Harley has made that these will not fit on. Measure the distance between the two bolts closest to the tank, center to center (of the bolts) is 2 3/4", and center to center on the top bolts is 4 1/4".

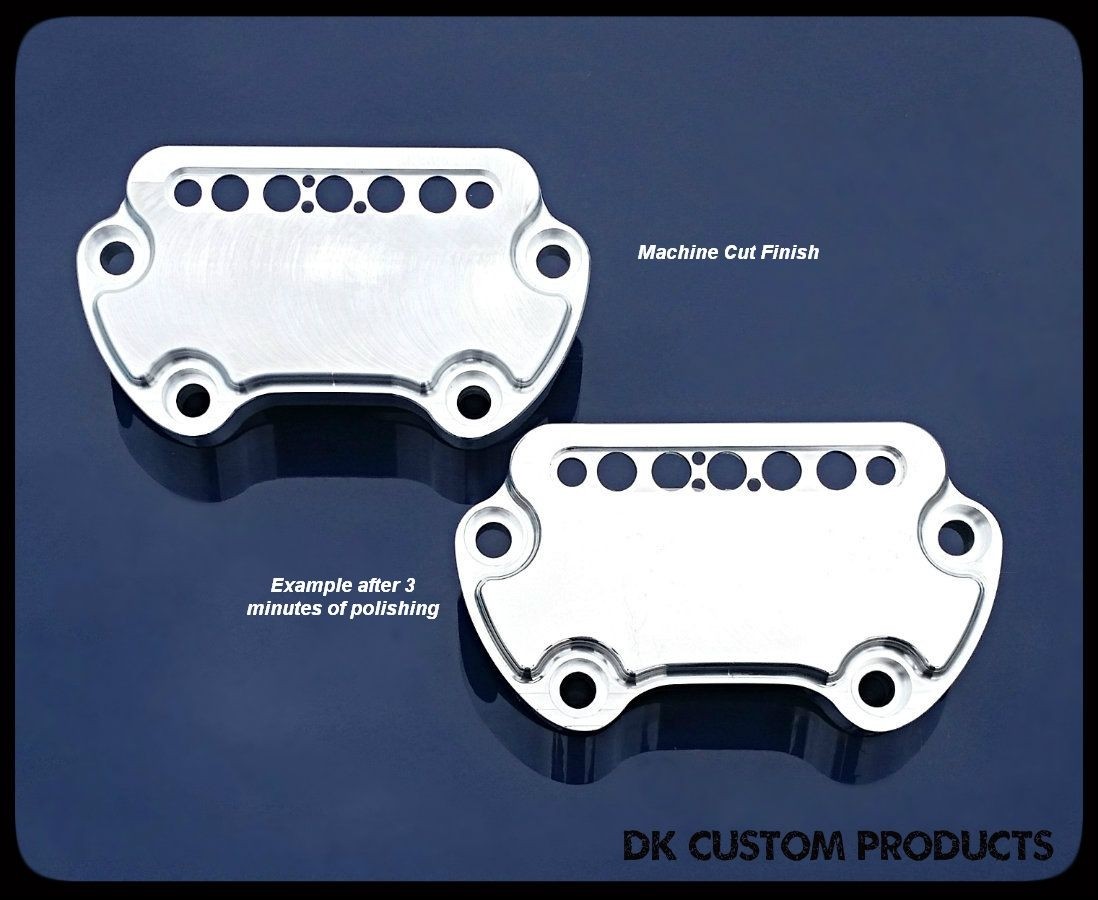

Some of the photos show the Top Clamp polished, this is a 10-20 minute job to get a mirror finish, it is delivered with a machined cut finish.  Some photos show the indicator light installed.  The lights are not included with this Top Clamp.  Your OEM indicator lights are to be installed in this Top Clamp.
