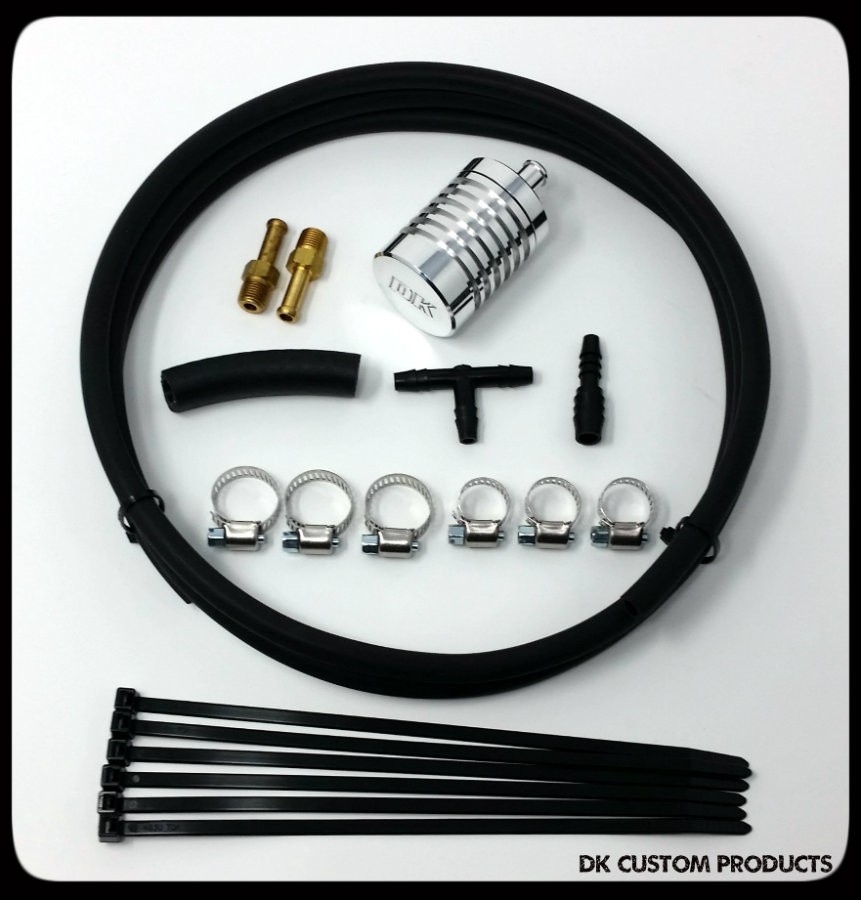

DIY External Breather System w/ Catch Can Touring Softail Dyna Sportster

99.95
Availability: In stock
Item #: DK-DIY-BH-BRT-CC
Manufacturer: DK Custom Products

* Required Fields


99.95

DIY External Head Breather EBS System Touring Softail Dyna Sportster DK Custom Harley Davidson High Flow EBS Outlaw M-8 Milwaukee-Eight Stage I Trike Tri Glide Freewheeler Big Twin Evo Sportster 4 Stage Catch Can

 DIY External Breather System

with

4 Stage Catch Can

For

Harley-Davidson

FITS ALL TWIN CAM, MILWAUKEE-EIGHT MODELS & SPORTSTERS


DK Custom Products



FEATURES & SPECS:

  • Fits All Air Cleaner Systems w/ Stand-off back plates
  • Allows Discrete Placement of the Catch Can
  • No more hot, oily, oxygen depleted air going into your intake
  • Your choice- Black or Aluminum 4 Stage Catch Can
  • Includes 6 feet of hose for maximum flexibility in filter placement
  • DIY Kit requires drilling & tapping
  • Includes Step-by-Step instructions

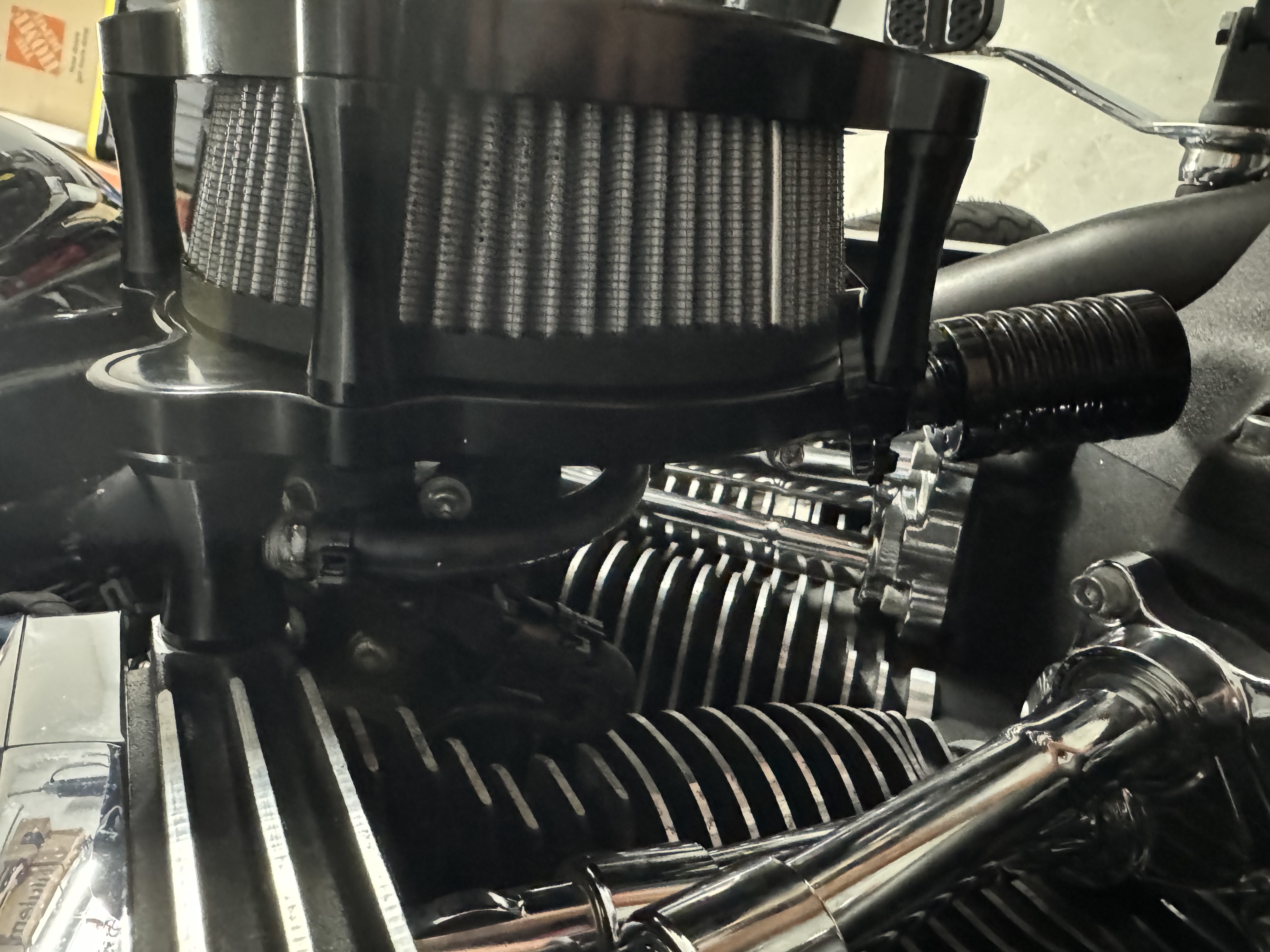

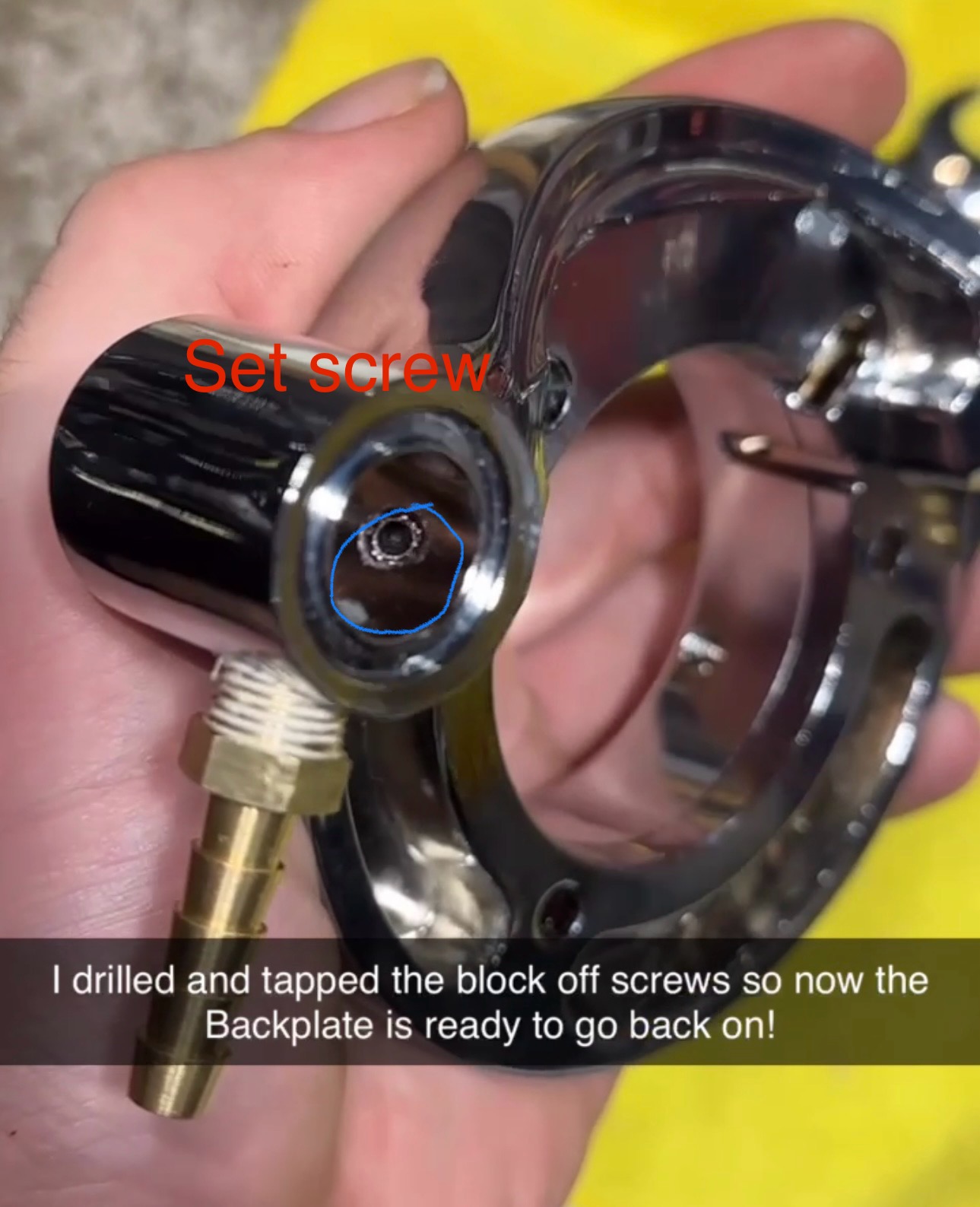

In the picture below you can see the stand-offs that are part of the backplate (that butt up against the heads).  This system includes hose barbs that can be threaded into those stand-offs and allow you to vent externally, as discretely as you would like.

This Picture is showing an Ness Big Sucker Air Cleaner that has our Sano Black Air Cleaner Cover, specifically made for Big Suckers & HD Stage I Air Cleaners.  You can see this cover HERE.





Your Choice of a Black or Aluminum Finish 4 Stage Catch Can is part of this kit.  See more photos and details on the Catch Can at this LINK.



An external Breather Kit is preferred with any Air Cleaner System.  This allows for only clean cool air to go into the air cleaner and engine, increasing performance and engine longevity.

This DIY kit is designed for aftermarket Stage 1 Air Cleaners that don't allow for venting out the end of the breather bolt.  It can even be used with the stock air cleaner.

The EPA has required Harley to route hot, dirty, oily crankcase air back into the air cleaner compromising the performance of your engine. This vents it without compromising the performance and longevity of your motor.

With this breather system you will experience a slight performance increase.  This is because engines like Cold Dry air!

Fits All Twin Cam & Milwaukee-Eight Models - 2000-Up Touring & Softail, 1999-Up Dyna

Fits All Sportsters & Big Twin Evo Models - 1991 & Up



 When ordering, Choose a Machine Cut Aluminum Finish or a Black Powder Coat Finish.

 The Machine Cut Billet Aluminum Finish that can be polished to a Mirror Finish.

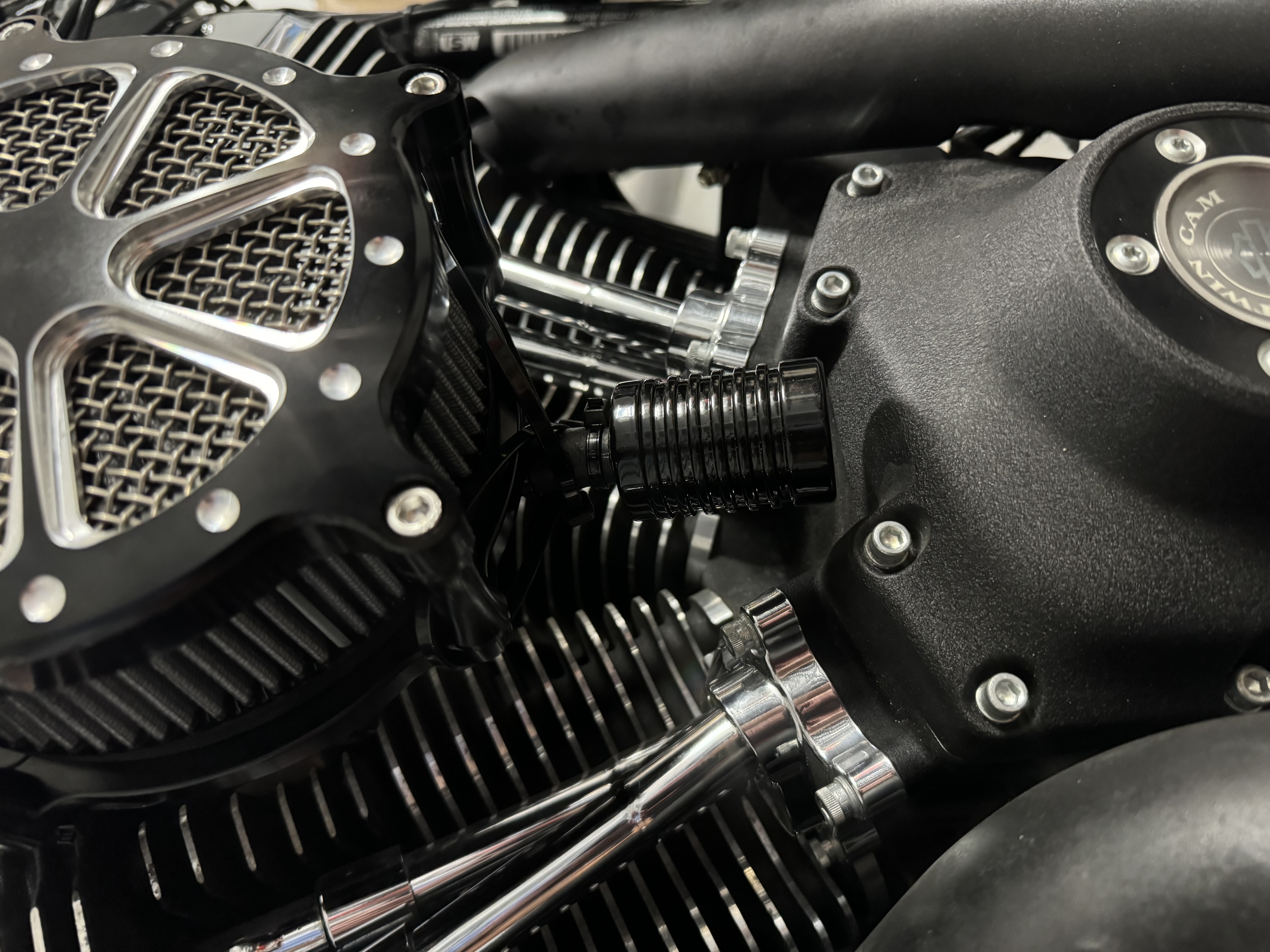

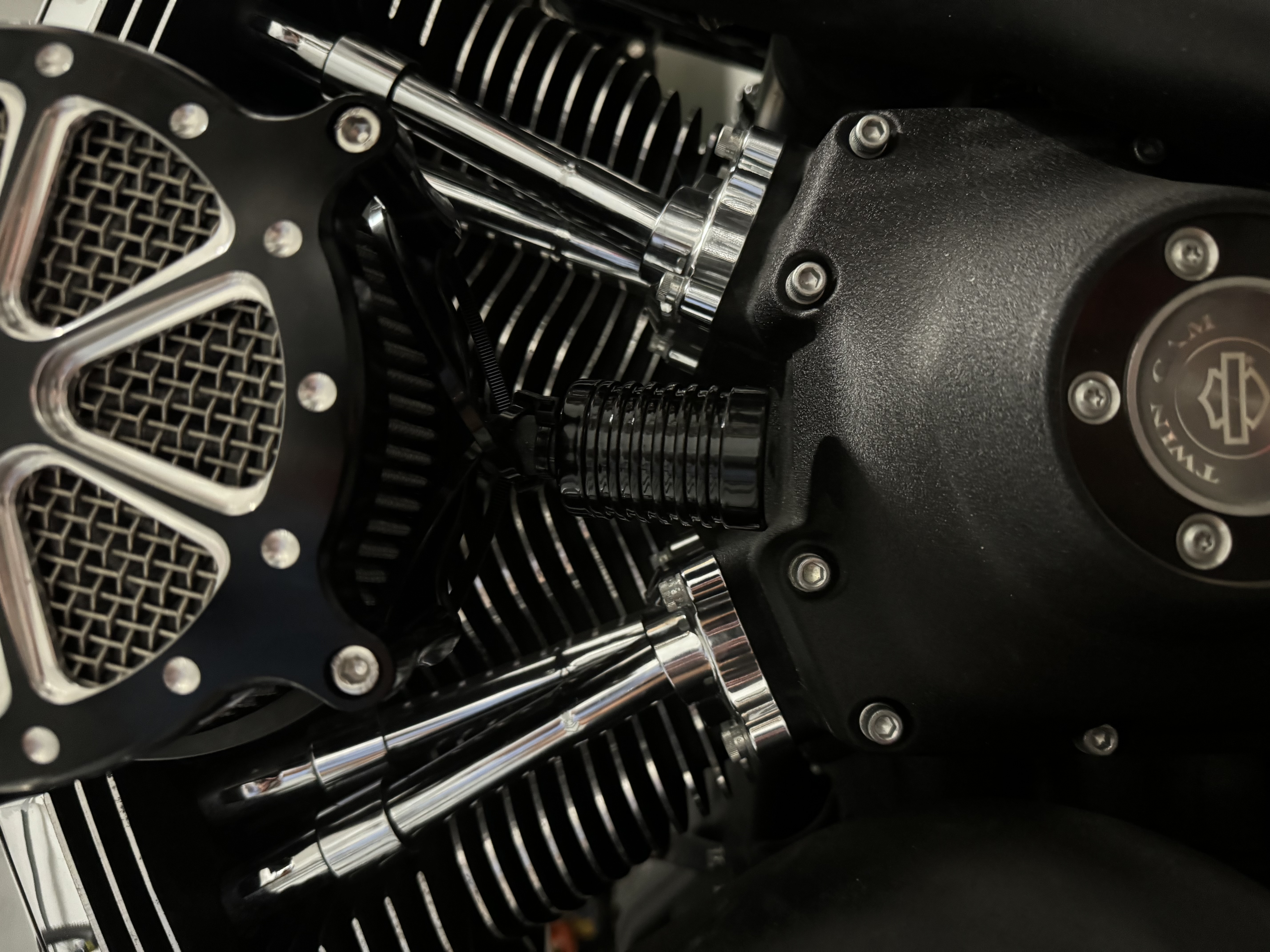

 The top of the Catch Can is attached to the hose by a zip tie or hose clamp (both supplied w/ the kit).  The bottom of the Catch Can threads to the top.

 Anytime you want, you can un-screw the can portion, empty out all the gunk, and then thread it back together.

  The top of the Catch Can is vented, letting the air escape, while the 4 Stage Filtration catches and holds the oil.

  The Catch Can is 1 1/2" in diameter and 2 5/8" tall.  For more details on the 4 Stage Catch Cans, Click HERE.





 *This kit requires drilling (11/32" drill bit) and tapping (1/8" NPT Tap) threads into the stand-offs (that are part of the backplate).  The benefits are that you can completely hide the hoses, if you wish, and it will work with air cleaners where no other external venting system will work.

Drill bit & Tap kit is an option above.



If your air cleaner system will accept the Stock OEM breather bolts, we have other breather kits that are straight bolt on, not requiring any drilling or tapping.  You can see the one for the Sportster HERE, and the one for the Twin Cams HERE



Caution:  Motorcycles modified with this DK Custom Products High-Performance part may not be legal for public highway use in some areas.  The user shall determine suitability of this product for his or her use.

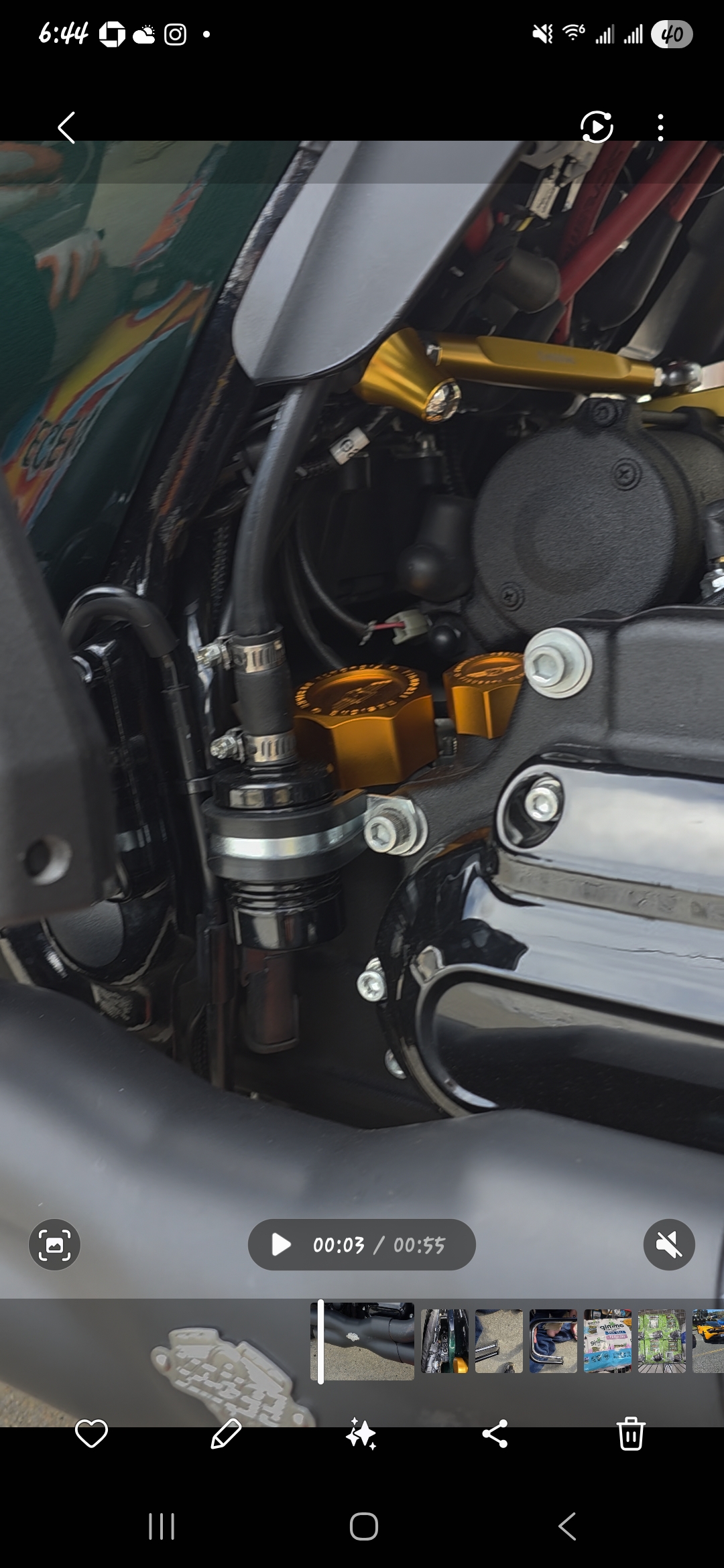

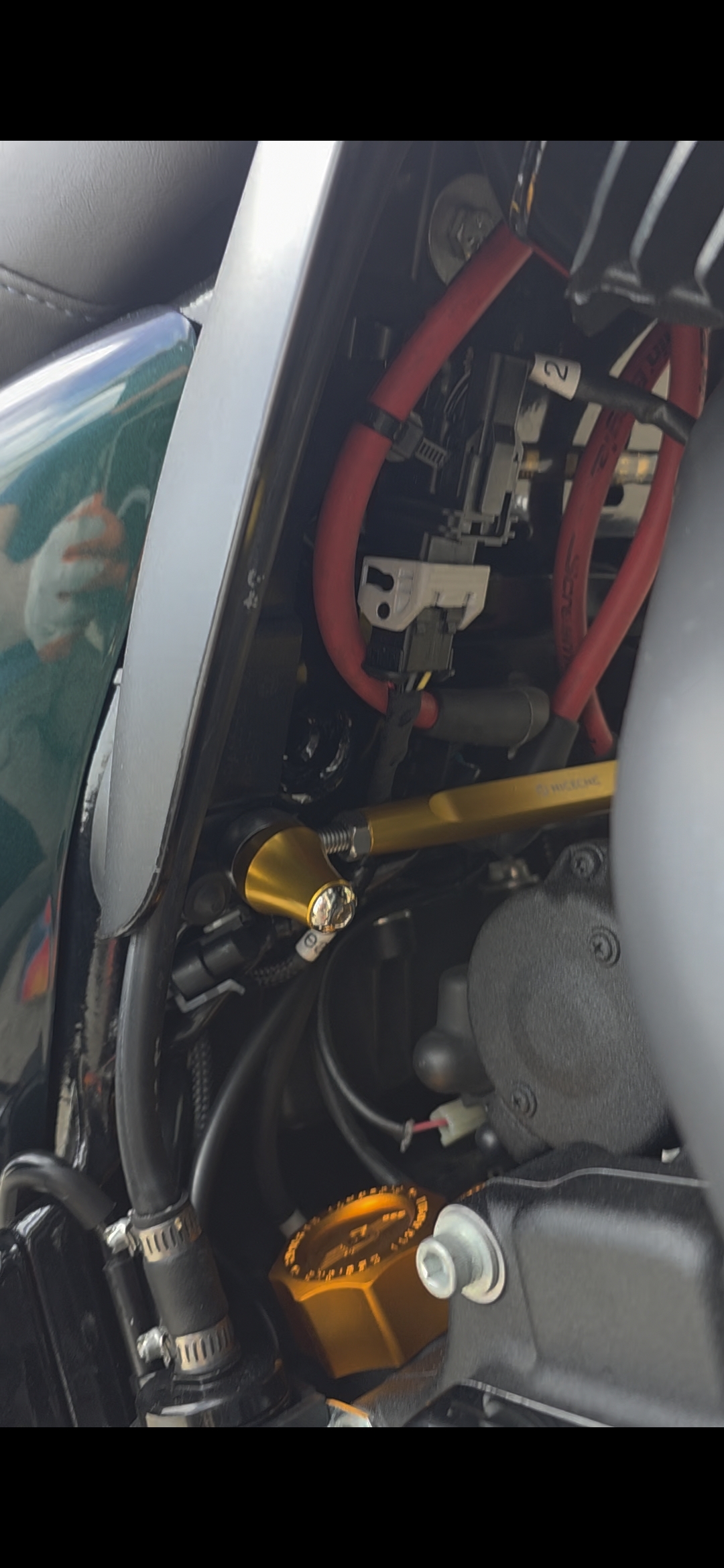

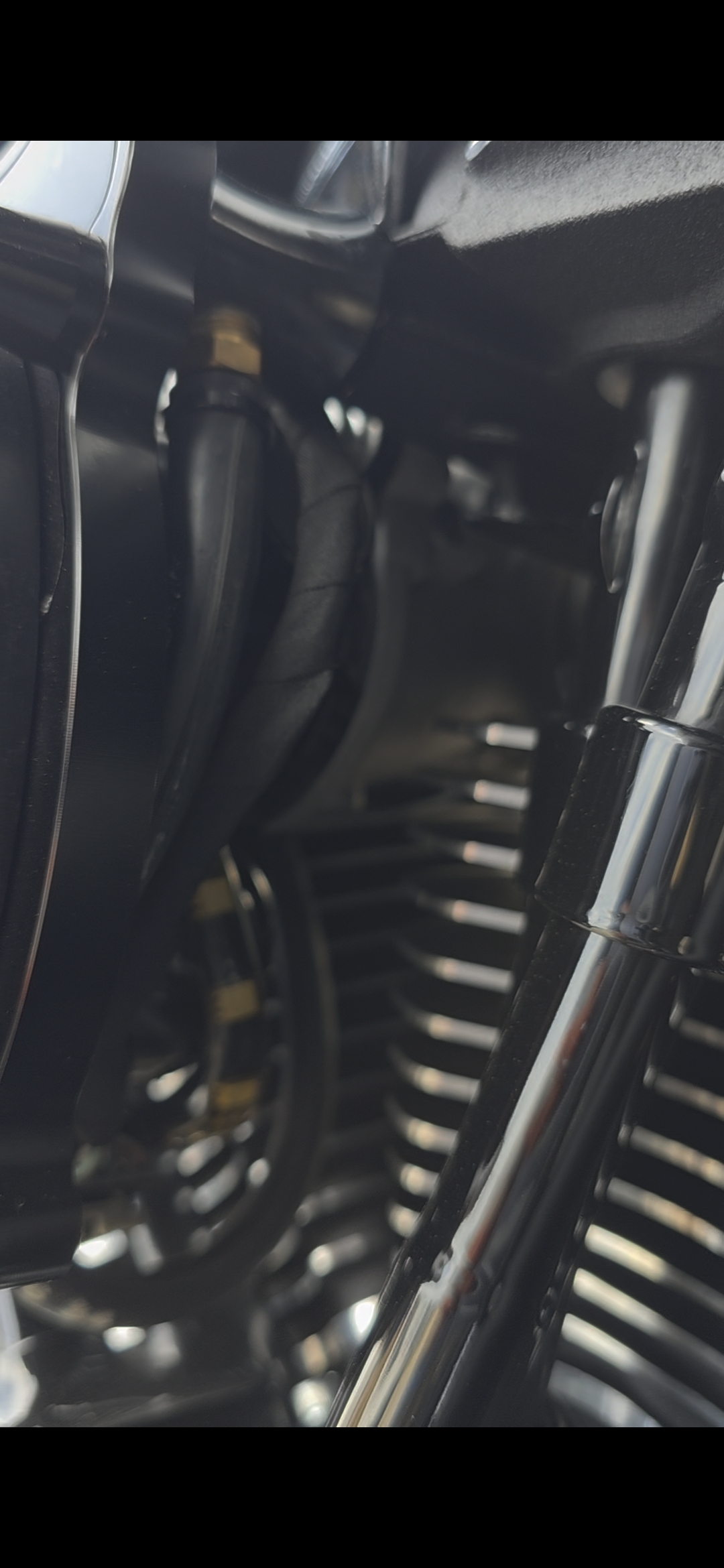

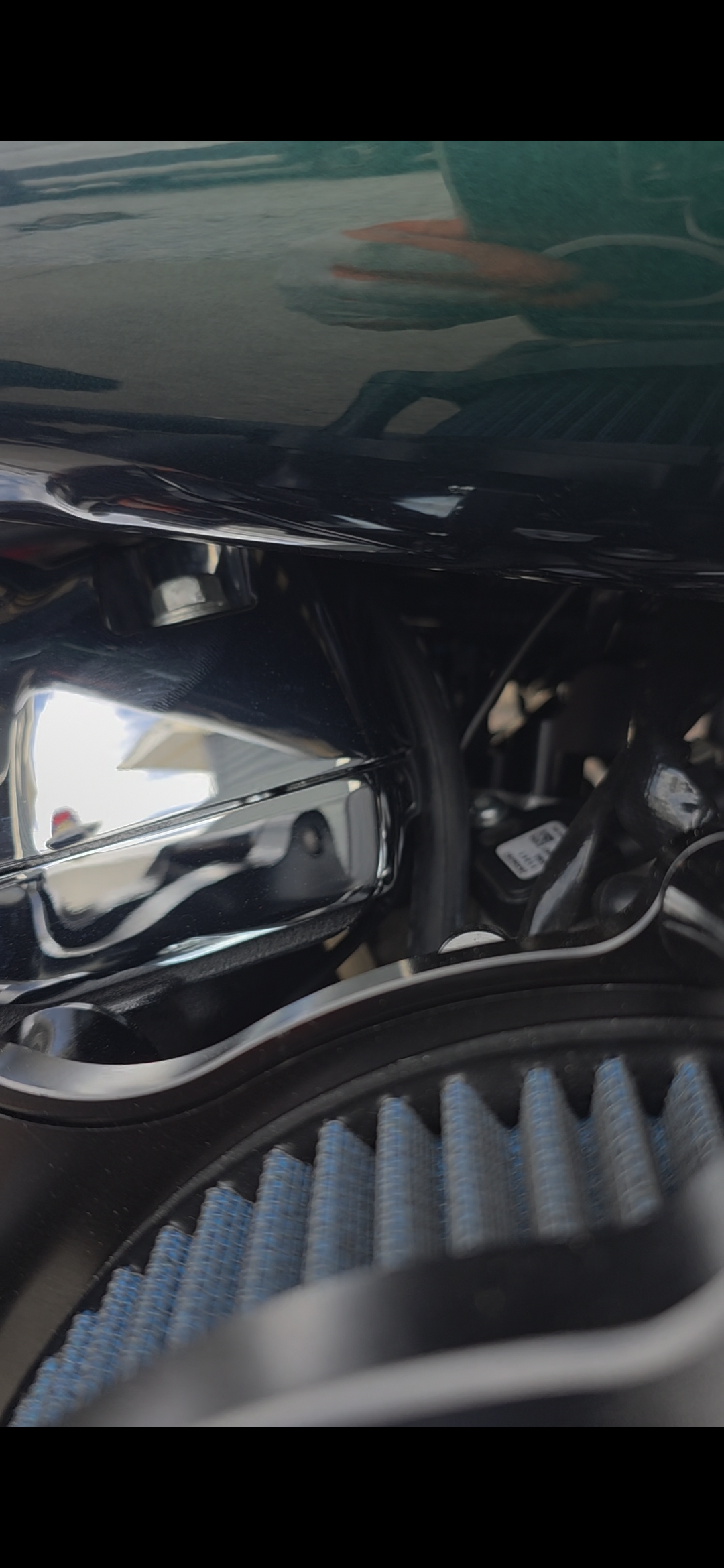

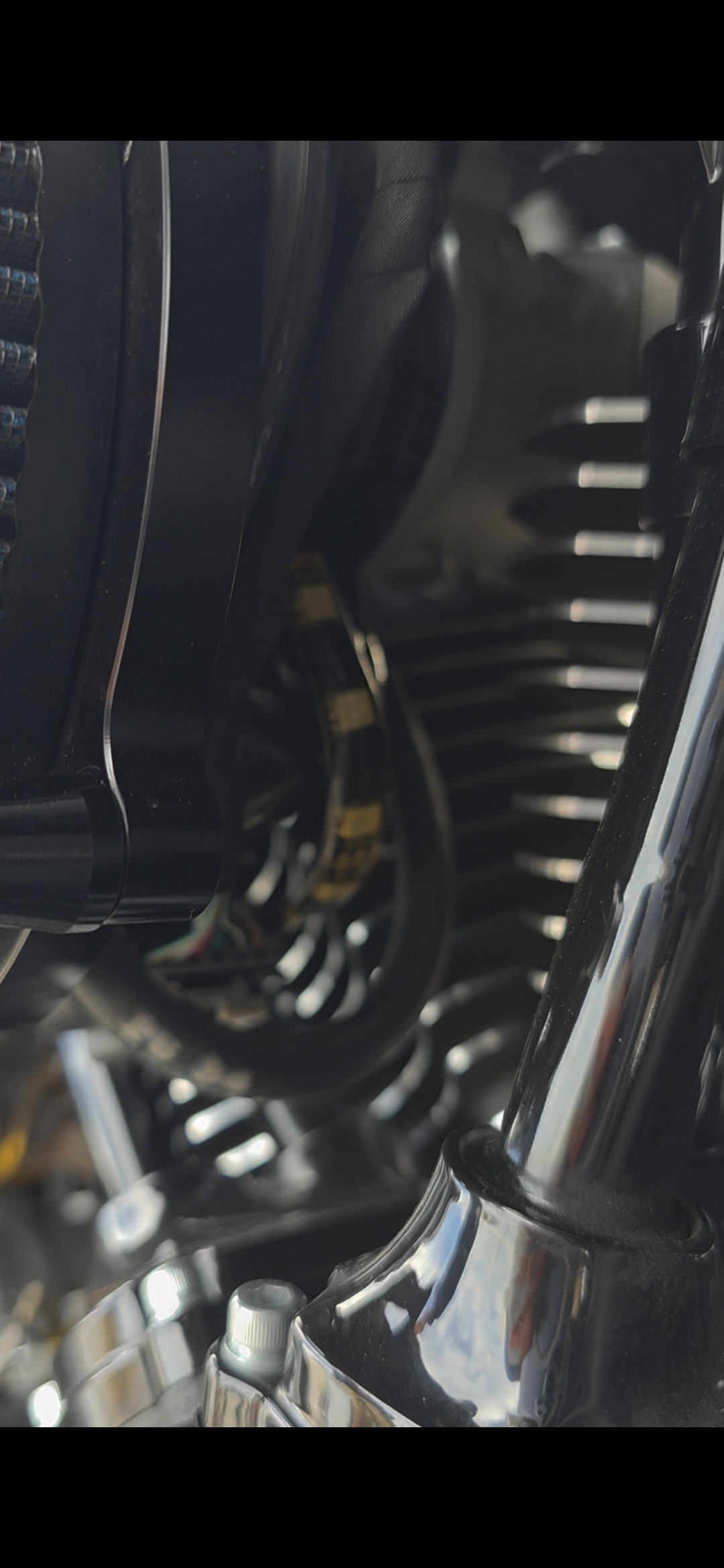

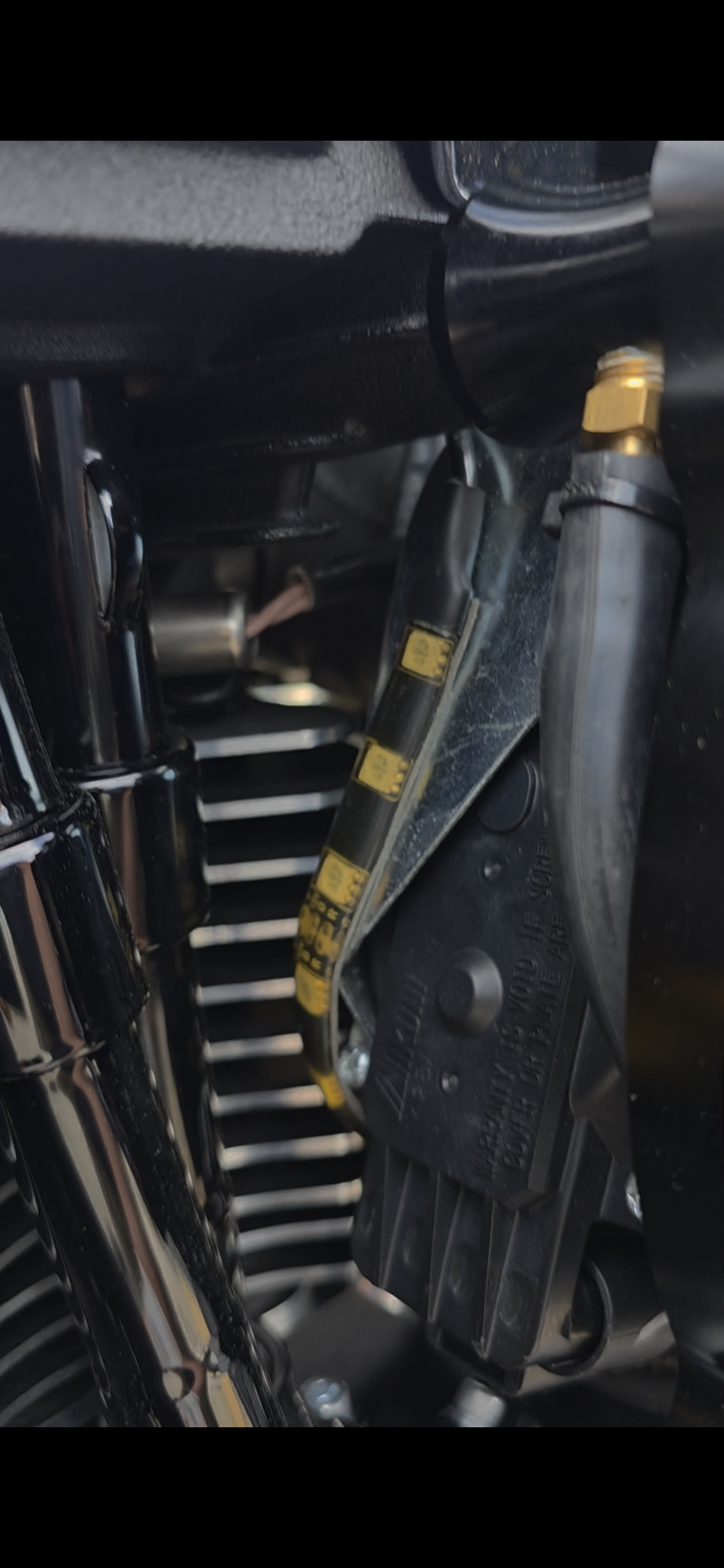

Below are some photos showing various stages of Installation on several bikes.

For full instructions, please look at the Instructions tab.

























Customer Reviews

Quality
Value
Just what I needed. Review by Bill
Breather was spraying oil so, installed this kit. Plenty of hose for can location. Just watch the video and it can be done with hand tools. Get the drill bit and tap to complete the installation. (Posted on 8/6/2020)
Quality
Value
External breather kit Review by Bill
As advertised. Everything was there and correct, and of exceptional quality. I am very happy with my purchase and intend to spend more $$ on there well thought out products! (Posted on 7/30/2020)
Quality
Value
DIY EBS WITH BLACK CATCH CAN Review by Roman B.
Awesome products guys! The DYI breather system is great quality and really easy to install. I have the screaming eagle intake and drilling and tapping it for the system was really easy I just took my time and it came out perfect. It only took about an hour. When I started my bike after about fifteen seconds or so I could smell the built up oil and the breather doing it's job. At idle my bike sounds different and deeper and the exhaust definitely smells better. While riding on the roads and highway there is DEFINITELY A DIFFERENCE! A little more power acceleration definitely a lot snappier. The bike runs 17 to 20 degrees cooler and I just made it to another oil change and the even the oil STAYS CLEANER! My bike even holds the tune now with more power and believe it or not better mileage. The black powder coated catch can is awesome quality! Definitely a great product should of done it sooner!!!! (Posted on 7/11/2019)
Quality
Value
Great Product! Review by Travis
I got this for my screamin eagle air cleaner. There is actually a video under instructions with my exact unit and a step by step video. I had to drill and tap the holes in my back plate but it wasn't a big deal (if you know how to do it). I had some oil coming out of my air cleaner from time to time and this was a 100% fix for the issue. I would definitely buy this again. The only thing I changed was the t-fitting that was sent. I needed to go from 1/4" hose to 3/8" hose with as little length as possible due to the catch can sitting on my motor, with the different t-fitting I now have clearance between the can and motor and it looks good. Highly recommend! (Posted on 5/21/2019)
Quality
Value
Good Review by Big Dawg
Every Air cleaner needs one of these (Posted on 12/14/2018)
