INTELLIGENT

BATTERY CHARGER/TENDER

W/ Included Tender Harness

Features:

• Fully automatic battery charger detects 6V or 12V, reverse polarity, overcharge and short circuit protection. Tests the battery to determine if it is good or bad

• Easy to read LED lights indicate power on, 6V or 12V selection, 2AMP or 4AMP charge rate and battery charge status. Complete with color-coded alligator clip leads and color-coded quick disconnect battery terminals

• 6V mode has a bulk charge rate of 2A and the 12V mode has a charge rate of 2A and 4A selections

• A float charge of 1.5A is used for absorption: A constant high current for extended periods of time can damage a battery. To rectify this issue, constant 1.5A low charging current is given until the battery is fully charged (13.6V)

• The charger monitors the battery voltage. If a 12V battery voltage falls below 12.8V (6V battery falls below 6.2V) the charger automatically restarts the charging cycle. The maintenance charging cycle is repeated indefinitely thus allowing the charger to stay connected worry free

• Recovery mode is used to revive batteries that are not completely dead but have fallen below 8V. The recovery mode charges at a constant 1.5A. The recovery process automatically switches to the regular charging mode when the voltage reaches 10.5V. The charger will then automatically switch from charge mode to maintenance mode when the battery is fully charged

• Sleek durable composite housing for long service life

• Power on indicator (Red LED light)

• Battery voltage indicator (6v or 12v automatic selection) (Solid Red LED light will indicate battery voltage – If the battery is bad the light will flash)

• Reverse polarity indicator (Red LED light will warn if the battery connections are reversed)

• Charge current indicator (Use the MODE button to select between 2A or 4A)

• Charge indicator (Red LED light indicates the battery is charging – Green LED light indicates fully charged battery)

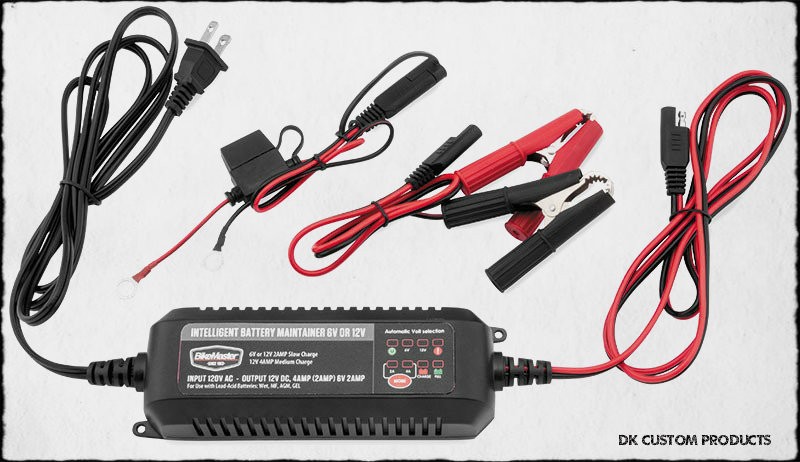

• INCLUDES Fused Battery Tender harness w/ Quick Connect Rings for easy connections!

This Intelligent Charger/Maintainer is ideal for charging/maintaining 6 volt and 12 volt lead acid batteries, including: Conventional Acid Batteries (Wet), Factory Activated Maintenance-Free Batteries (FA), Absorbed Glass Mat Maintenance-Free Batteries (AGM) and Gel Batteries (Gel Electrolyte), not intended for use with Lithium batteries.

Never come out to a bike with a dead battery again!
