JIMS Force Flow Fan Cools Twin Cam & Milwaukee-Eight Engine
JIMS
FORCE FLOW
Cylinder Heads Cooling Fan
Fits All
Milwaukee-Eight Touring Models
& NOW
Milwaukee-Eight Softail Models
Made in The USA!
Twin Cam Force Flow Fans are Out of Stock
We are unable to sell the Twin Cam Fans at this time.
Please check back periodically for updates!
ALL M8 FANS
ARE CURRENTLY TAKING
ANY WHERE FROM 2 DAYS TO 3 WEEKS TO SHIP
FEATURES & SPECS:
- Lowers Head Temps up to 100 degrees
- Sleek Design includes horn
- Wrinkle Black Finish
- Pushes High Velocity Air directed at Head Gasket Surface
- Everything supplied for an E-Z BOLT-ON INSTALL
- Step-by-Step Instruction Included
JIMS ForceFlow Cylinder Head Cooler. Whether you are running a big inch performance engine or rolling stock in traffic on a hot summer day, your air cooled engine will heat up.
Excessive heat and operating temperature can be an engines worst enemy. The patent pending JIMS ForceFlow literally forces the heat away from your engine by pushing high velocity air through the cylinder fin pack in a wide flow pattern, directed at the head gasket surface.
Powered by a cooling fan that was designed to cool brakes in NASCAR, the JIMS ForceFlow can lower head temperatures up to 100 degrees!
The ForceFlow can either be activated by a thermostat (included), or wired for a manual on/off switch (included).
This unique design also relocates the horn inside the ForceFlow’s streamlined housing, and gives the horn mount or “left side” of the bike a much needed new look.
Fitment: Fits all Harley Twin Cam Models & All Milwaukee-Eight Softail & Touring Models (including Trikes) up to 2025
Twin Cam CVO & 120 Models require additional mounting hardware, which is an option while ordering
Milwaukee-Eight CVO's do NOT need the additional mounting hardware.
MAKE SURE You Choose the Correct Option for YOUR Bike.
***M8 models that are Twin Cooled will have to have some creative placement of the Thermostat, or can be run with just the switch, not using the Thermostat.
The Fans will NOT WORK on the GenII motor at this time.
If you are not sure if you have a Gen II below is the way to know for sure;All Gen II M8's have a new Cam Cover shape. You can see the new shape in the photo below.

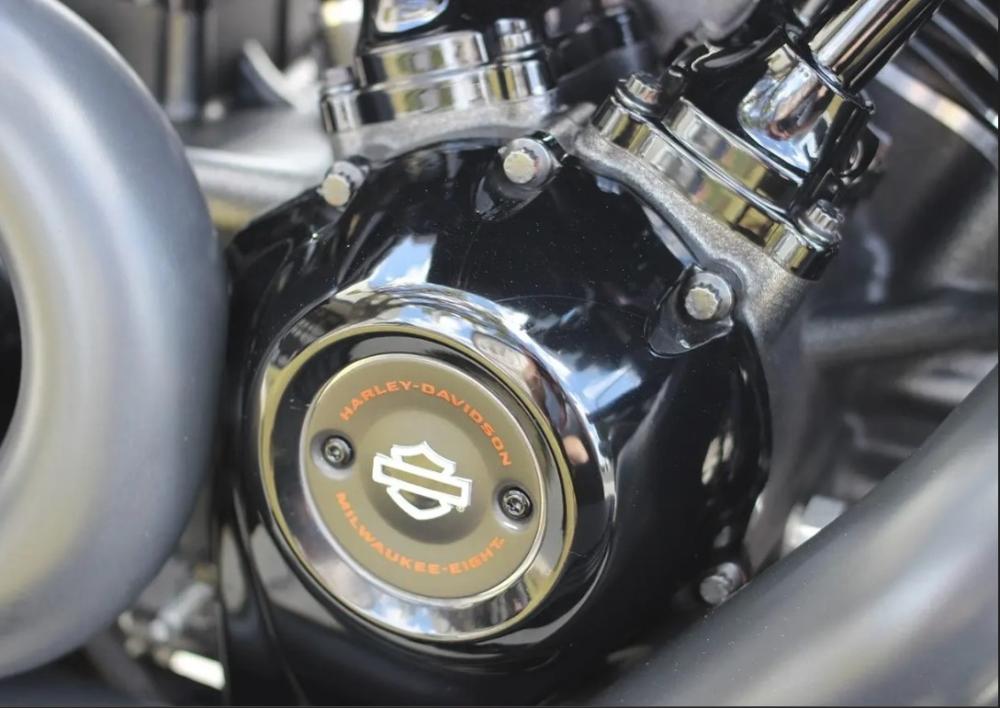

If your Cam Cover is shaped like the picture below you do NOT have a Gen II and can use the Fans.
***M8 SOFTAIL FITMENT NOTICE- In order to install the Forceflow on the M8 Softails, it is necessary to re-locate the coil. This Kit includes a turnkey coil relocation system to move the coil to the front of the motorcycle inconspicuously tucked underneath the neck of the bike, in-between the frame tubes. This new mounting system allows the Forceflow to be installed on all Milwaukee Eight Softail motorcycles. Non-stock components that are installed in this area, under the neck, may conflict with the coil relocation, this Includes the Harley Brand Engine Guard. The coil cannot be relocated for the Force Flow if an Engine Guard is installed.
Every week we see Twin Cam & M8 engines that have been destroyed by excessive heat.
These Charts showing normal operating temps are Directly from the Harley Manual:
TWIN CAM ENGINES:
M8 ENGINES:
Not only is the "normal" amount of heat uncomfortable, it:
Reduces Power & MPG
Increases Wear & Tear on the Engine
If you have not read the Report- "Why & How to Cool Down Your Twin Can & M8 Engine"
You can see it by clicking this LINK
"The last step in cooling my 103 down was a fan, & when I saw this Force Flow, I loved the look. With it installed I am very happy with how well everything is working together to increase my power and the longevity of my motor. btw, I also have all of your other parts for getting the heat down! Thank you!" ~Stephen
Step By Step Installation Video:
Test Data on the Force Flow Fan
We put off testing this fan for well over a year. We did not think it would work that well.
However, we were told that it did work well at cooling down the engine, so we took the time to test it on two different bikes.
An Air-Cooled 103 and a Twin-Cooled (wethead) 103.
We were pleasantly surprised by how well it works. See the Video Report HERE
Even though both of these bikes already had a full compliment of Cooling Components installed, this fan did a great job of lowering the temps even more!
To do the testing we removed the fans that were already installed on these bikes, and when we did, in certain situations the temps were getting too high for optimum performance, and getting into the range were accelerated wear was occurring.
By Switching on the Force Flow Fan the temps came right down into the optimum range....both for Performance and Engine Longevity.
Check out the data below-
4.5
Share your thoughts with other customers
Top customer reviews
-
Do it! 2 people found this helpfulI have a 21 street glide completely stock internals, ive blown engines before so temperature is something i monitor religiously. Now on top of this fan i also have per their advice added the tank lift, cooling fins, and oil cooling fan, but Ill keep this as short as possible but here is the number scale i found, bone stock head temp 320* after 45 min ride (took the same ride into work 4am no traffic and sustained the same numbers consistently for over a week) in 55-60*F ambient temp. After adding said mods, that same ride with all other variables constant ive been maintaining under 270* head temperature. ive had numerous 2 hour+ rides in ambient temperatures over 80*F with a consistent head temperature under 300. I cant stress enough how much i recommend this product. It wont completely fix the heat problem but it is a serious weapon against it.
-
Great Product that really works! 5 people found this helpfulI have an H-D SE 131 crate motor in my Trike and this fan Really keeps the heads cooler in traffic during the Summer months! This is a quality product worth every penny I spent on it.
-
Works like a charm 4 people found this helpfulHad my dealer install the fan and the air cleaner. Took the trike to Biketoberfest. Rode over 900 miles. Mostly highway miles, but some in town miles. Weather was cool so all of the other engine cooling upgrades kept the engine cool. I turned on the fan when riding in town. Really helped to cool the engine. Noticeable difference in the ride. Could have a better horn though.
-
Fitment Notice Could Be Clearer 1 people found this helpfulThe Fitment Notice states: Non-Stock Components may conflict with Coil relocation. I had to return Jim's Force Flow Fan as my Engine (Crash) Guards were in the way. Notice should specifically include "Engine Guards," as who thinks of these as "Non-Stock? DK Custom was kind enough to waive the restocking fee, but I was still out the $40.00 to return.
-
Unreal cooling power 3 people found this helpfulI ride long distance when i ride my 2021 street bob 114. 4-500 miles is my daily avg. On weekends. Summers are 112 f. Then 48 f at night. Had my dealership install it and she puuuurrrrrrsssssss like a kitten now.. Thermal stat set at 140. Engine stays at 180. Never gets hot or unpleasant.to drive
-
Jims forcefan. M8 2021 streetbob 114. 0 people found this helpfulSecond i got it back from the dealership i .went st8
-
Great Product - Not so great instructions 3 people found this helpfulFan worked and I like it so far. Using and Infra heat gun I see the head at about 120 F temp. The installation instructions were confusing and all over the place. I figured it out with some help from my riding buddy.
