RACE SERIES OIL PUMP Milwaukee Eight Twin Cooled

Availability: In stock
Item #: DK-M8-PUMP-7021
Manufacturer: FEULING

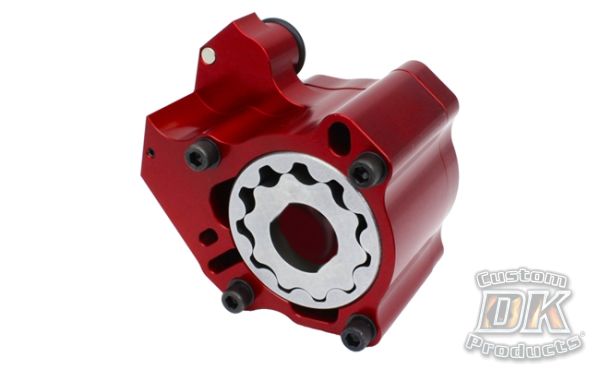

Race SERIES OIL PUMP Milwaukee Eight Twin Cooled 17-22

Race Series Oil Pump


Milwaukee-Eight Twin Cooled



Milwaukee-Eight Models



Made in The USA!



  • Billet 7075 Aluminum With Red Anodize Finish
  • Increases Oil Pressure
  • Increases Scavenge Volume
  • Reduces Blow by & Wet Sumping
  • Cooler Oil & Engine Temperatures
  •  More HP and Torque to The Rear Wheel



FEULING TWIN COOLED high volume billet oil pumps are a must have for the Milwaukee Eight engine. The increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function. The FEULING oil pumps eliminate common pressure and scavenge issues associated with the factory oiling system.

These oil pumps have a precision machined pressure relief valve and bore. Each oil pump is bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi.

The FEULING oil pumps require use of the FEULING HIGHFLOW camplate, the combo increases oil flow in and out of the engine with corrected tolerances, oil passages and larger geroter gears. Reduces engine and oil temperatures, increase oil pressure volume and scavenge volume on the return side to reduce build up of oil in the crankcase.

FEULING offers the HP+ and RACE SERIES oil pump options to suit your engine build and budget needs.

High flow 2.250 Chrome Moly gerotor gears

27% more pressure and scavenge gear volume over stock

Increased and optimized passages, port holes and galleys requiring them to be matched up to a FEULING HIGH FLOW camplate seen at this LINK.

42% more scavenge volume with matched passages, port sizing and holes to the engine case

68% more oil volume to the crankshaft and connecting rod bearing

Magnets to help protect gears and pressure relief valve

Due to the mass call volume & inquires with requests for the M-Eight oil pump back cover O-ring/seal groove, weve added the groove! (5/11/21). Although Feulings in house testing on healthy engines did not show a benefit. The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances.


Billet 7075 aluminum with red anodize, this material holds tighter tolerance under temperature, is 50% harder and stronger than 6061 aluminum.

Deeper scavenge kidney ports over the HP+ series for even more scavenge flow volume

Increases oil pressure

Increases Scavenge volume

Reduces blow by & wet sumping

Cooler oil & engine temperatures

More HP and Torque to the rear wheel


It is important to get the correct hot oil level in your bike. See the video below to understand how to Check Hot Oil Level in your bike.

Note: The M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.

We recommend the following steps to achieve proper oil level:
1. Check cold oil level.
2. Ride the bike until operating temperature is reached. (210-230 F)
3. Shut the bike off while still in the upright position. (This insures an accurate reading)
4. Once the bike is on the kickstand check oil level.
5. Add or remove oil as needed.


Race Series Oil Pump Milwaukee Eight Twin Cooled 17-22 MUST use Feuling HIGH FLOW Camplate seen at this LINK

 Does NOT Fit Milwaukee-Eight Softail Models You can see the Race Series Oil Cooled Pump at this LINK.


 If you are NOT doing a High Compression Build We reccommend the HP+ Twin Cooled Oil Pump seen at this LINK.


NOTE: Use of Gear Drive camshafts require block off plates - See the BlocK Off Plates HERE.
