07-Up Black DLX Billet Coil Relocation w/ Barrel Key Ignition

329.95
Availability: In stock
Item #: DK-BLK-BLT-CR
Manufacturer: DK Custom Products

* Required Fields


329.95

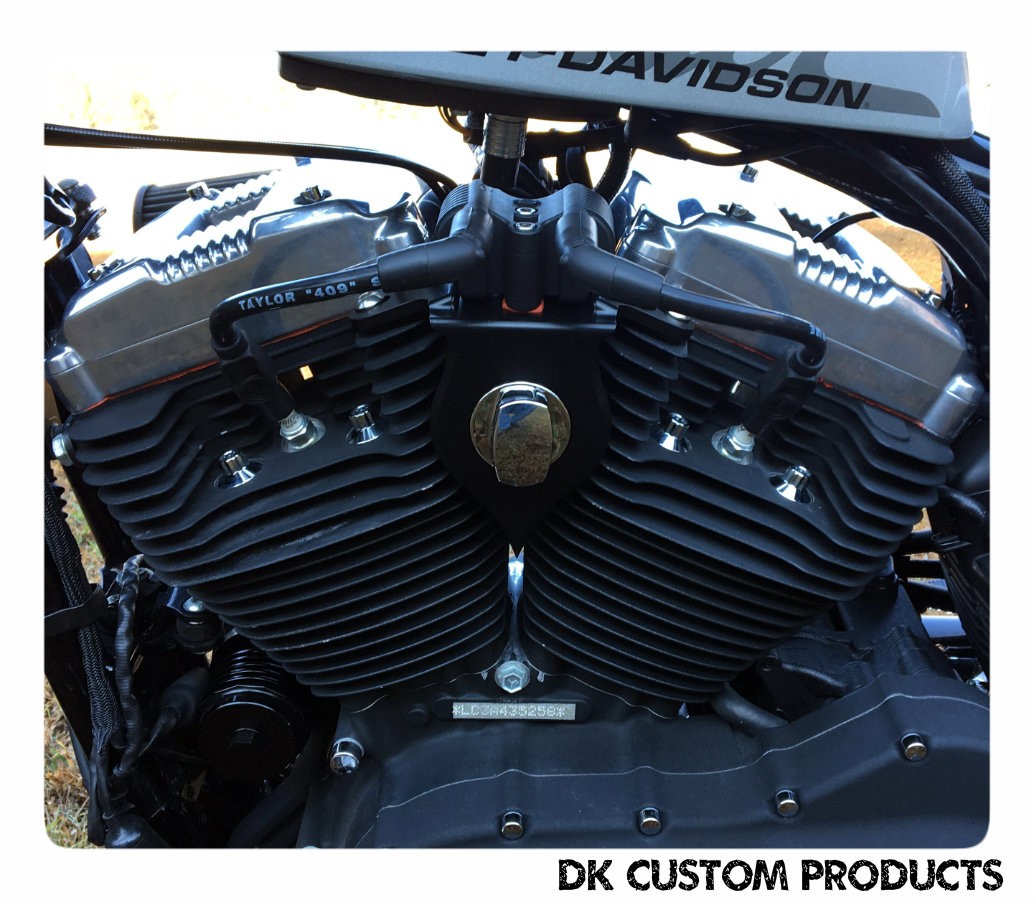

DK Custom Products Harley Davidson Sportster Billet Coil Relocation Kit Barrel Key Ignition Black Chrome



NEW PREMIUM DLX BLACK

BILLET COIL RELOCATION

w/

Barrel Key Ignition Switch

&

 Tank Lift


FITS SPORTSTERS 2007-UP

MADE IN THE USA!
By
DK Custom Products



FEATURES & SPECS:

  • CNC Cut from 6061 Billet Aluminum
  • Your Choice of a Black or Chrome Barrel Key Switch
  • Your Choice of Tank Lift (1.5" or Taller)
  • Optional Pro Race Plug Wires
  • Rubber seat for Coil
  • Durable Black POWDER COAT Finish

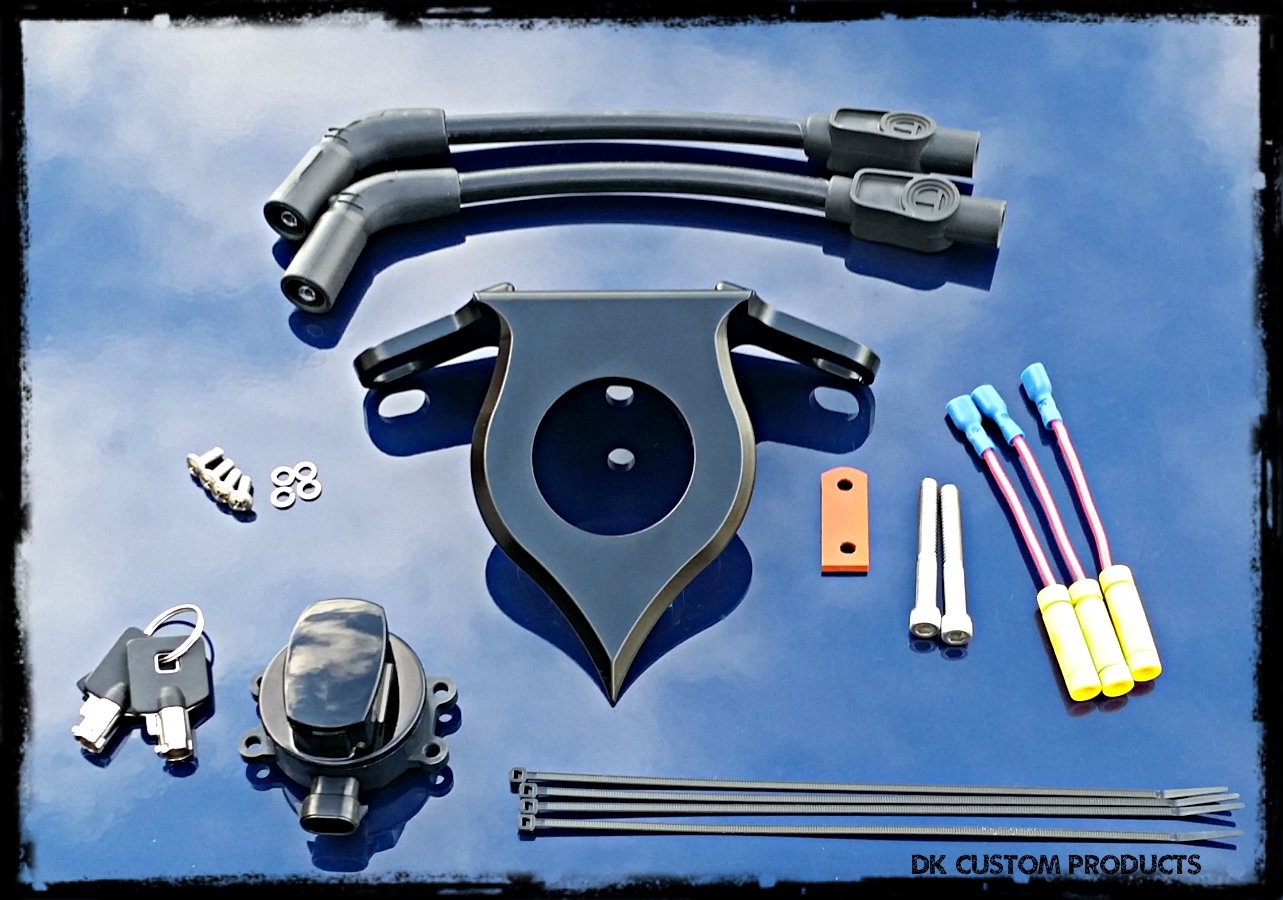

  • Includes everything needed for E-Z INSTALL
  • Step-by-Step Instructions Included
  • Purpose-Made & Patent Pending

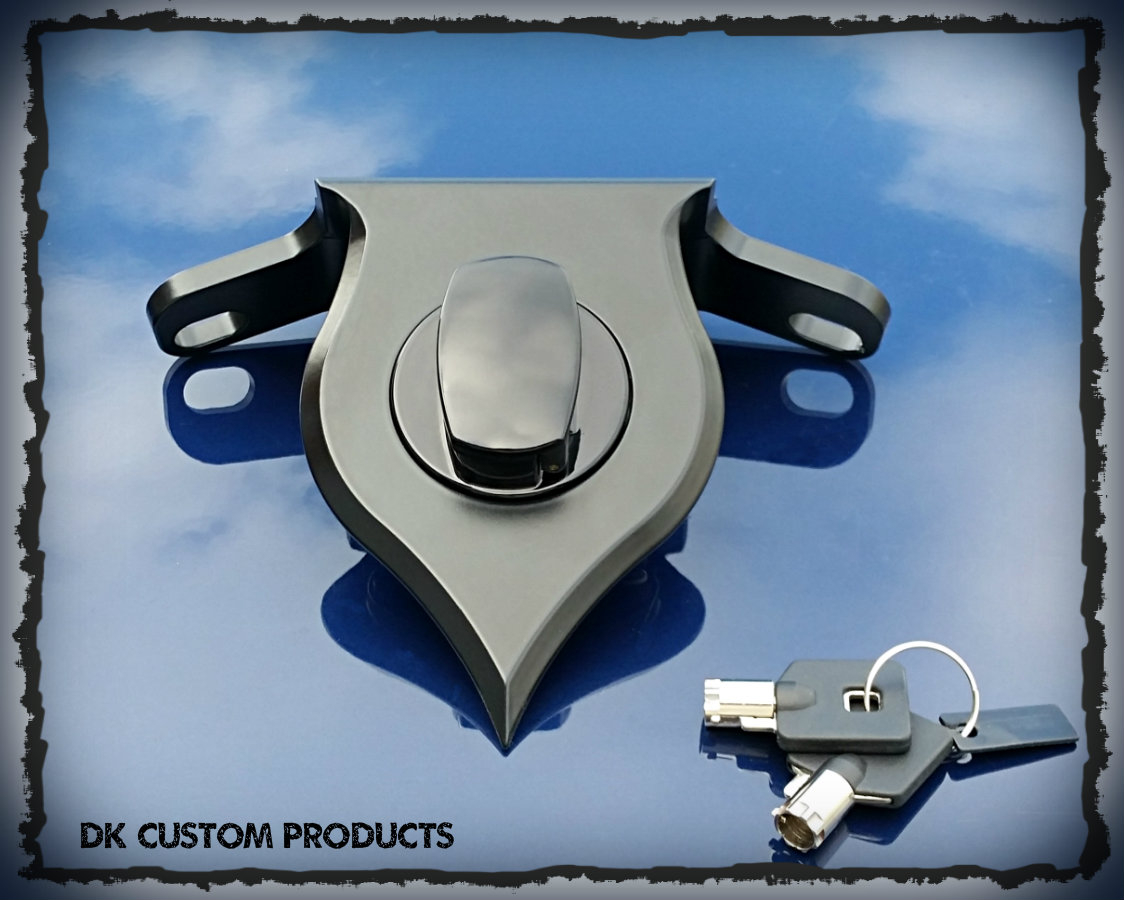

Each CNC Precision Cut Billet DLX Coil Relocation comes with a Quality Side Hinged Barrel Key Ignition Switch.  You have a choice of a Black or Chrome Switch to go with this Powder Black Billet Coil Relocation.

The key is used to lock the switch so it cannot be turned to the On Position, or the Accessory Position.  When you are ready to ride, unlock it and turn it.  The key does NOT remain in the switch while riding.

Included is everything you need to relocate your Coil & replace your Ignition Switch.  When you order you will be asked which year Sportster you have, so we can send the correct switch for the wiring on your year model.

For CANbus models (14-up), you simply unplug the HD connector from the stock switch and plug it into your new switch.

For other models the wiring is easy, no soldering needed, we provide wires already set up with Posi-Lock Connectors & spades, for quick, positive connections.

You can see the Polished Billet DLX Coil Relocations at this LINK.







BETTER LOOK ~ BETTER AIR-FLOW ~ BETTER SPARK ~ BETTER SWITCH


This is an EASY install - 20-30 minutes!

Fits 2007-UP Sportster Models (except XR1200)





FITMENT NOTES:

This Coil Relcation requires a tank lift of at least 1.5" be used.  Some years of the Custom cannot run a tank lift without relocating the Speedometer.

Fits 2007-Up Sportsters

Because the coil is now sitting between the spark plugs, you will want to modify the length of your existing plug wires OR use the option for some New Pro Race Wires when ordering.



"I saw a prototype about 6 months ago and wanted one then.  I finally got one and it is kick-ass!" -Roger





Save

Save

Save

Save

Save

Save

Save

Customer Reviews

Quality
Value
Quality Product Review by JW-MT
Heavy duty quality product. Easy installation, (except for the bolt provided that replaces the front tank mount on the lift. Stock nut does not fit the threads, Had to go get a new nut.)
Love the look. (Posted on 4/28/2022)
Quality
Value
Awesome product Review by Robert
The pictures do not show how good of a product this is, I was skeptical till I recieved the bracket, I highly reccomend this product, absolutely love how well it fits and the craftsmanship is awesome (Posted on 2/18/2019)
Quality
Value
Awesome product Review by Robert
The pictures do not show how good of a product this is, I was skeptical till I recieved the bracket, I highly reccomend this product, absolutely love how well it fits and the craftsmanship is awesome (Posted on 2/18/2019)
