Cool-n-Clean Oil Filter Relocation Kit For Harley Trikes
In stock
SKU
DK-CNC-OFR-TRI
Views: 12
Manufacturer
DK Custom Products
$299.95
Cool-n-Clean
OIL FILTER RELOCATION
No More Mess ~ Improved Cooling
Fits all 2009-25 HD Tri Glides, Freewheelers, & Road Glide 3
Made in The USA!
FEATURES & SPECS:
- No More Messy Oil Changes
- Cooler Running Motor
- Black Powder Coated Steel Brackets
- Precision CNC Cut From Billet 6061
- Your Choice of Black or Aluminum Finish Adapters
- Nickel Plated Brass Fittings
- Optional Braided Hose, Optional Clamps, & Optional Permanent Filter
- E-Z BOLT-ON INSTALL - Complete Oil Filter Kit w/ Everything supplied
- Step-by-Step Instruction Included
Finally, The Answer to an Easy, Mess Free Oil Change!
PLUS, Cooler oil helps engines last longer!

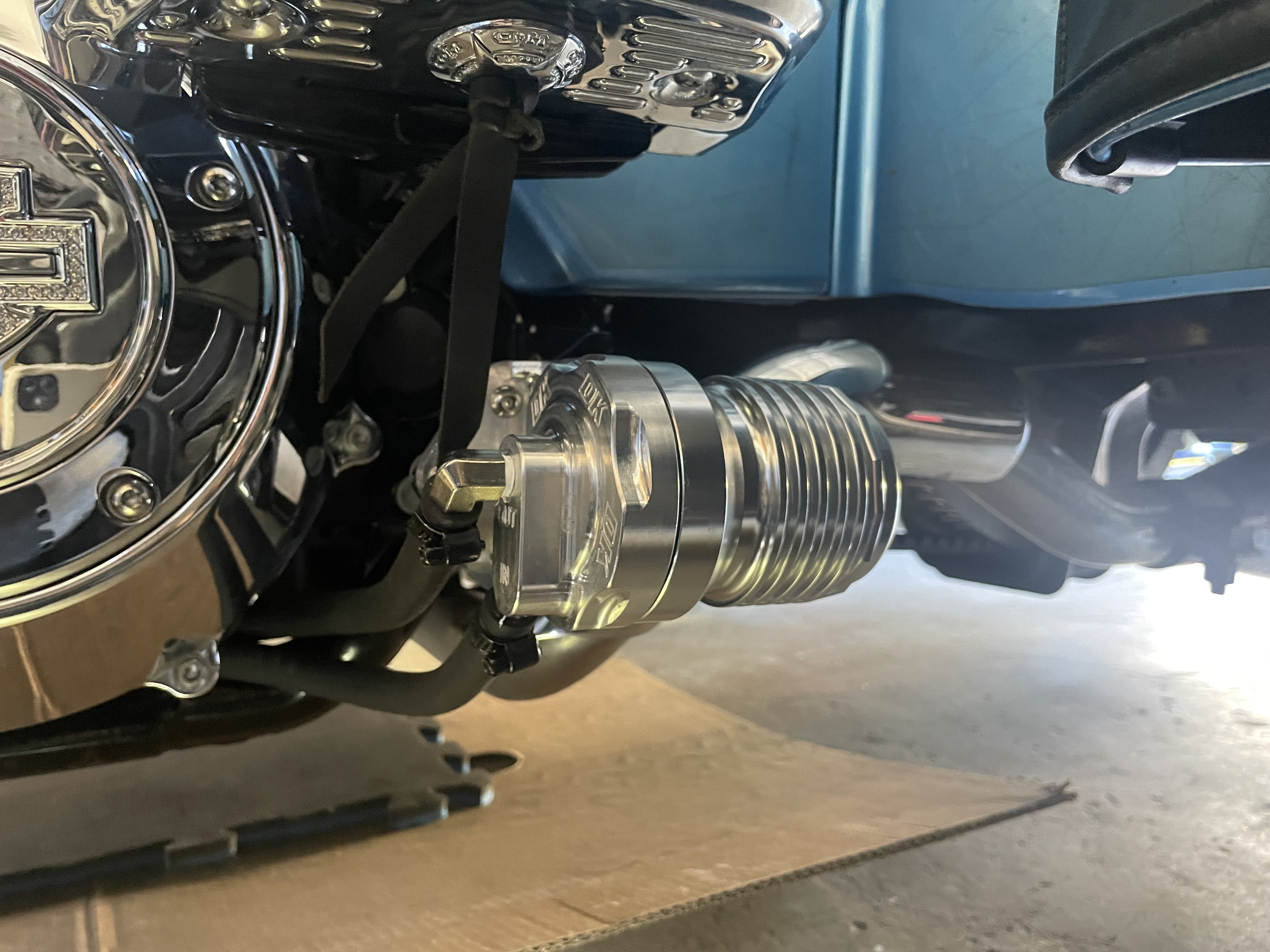

By relocating the oil filter, the filter is out in the wind, there is slightly more oil capacity, AND it's easy to remove the filter with No Mess!
The Cool-n-Clean Kit comes with everything needed to relocate your oil filter for easy oil changes and cooler oil.
- The included adapter plates are Made in The USA. Precision CNC Cut by DK Custom from 6061 Billet Aluminum.
- You have a choice of either a semi-polished aluminum finish or Black Powder Coat Finish. If you choose the aluminum, they are not a mirror-polish finish, but with a little buffing work you can make them look like chrome.
- See pictures above, when ordering you can choose which finish you want.
- Quality Nickel Plated brass hose fittings, along with USA Made Stainless Steel fasteners, blacked-out clamps and hose are all included.
- Installation is simple even if you have an existing OEM oil cooler, you don't even touch it during install. Simply remove the oil filter (not the housing that the oil filter screws onto that has the oil cooler lines), and relocate it back to under the passenger floorboard with the CnC Kit brackets and new Oil Filter Mount.
This kit leaves enough room to adjust your peg or floorboard to the lowest point, AND, still use add-on parts like the Adjustable Passenger Pegs.
Fitment: Fits all 2009-25 Harley Tri-Glide, Freewheeler, Road Glide 3, & FLHXXX Models
(Including Milwaukee-Eight Models)
Bypass Fitment Note: If the oil hoses between the oil cooler and the oil source are too short, the oil cooler by-pass valve may not fit in the oil lines. Jagg mini by-pass valves require at least 3 inches of straight hose. In the absence of 3" of straight hose, this cannot be installed in an aesthetically pleasing way.
Works with any oil filter that fits on your bike currently- OEM, K&N, Performance Cleanable, & others.
Cool-n-Clean Kit for 2 Wheel Touring Models available HERE.
SAVE $$$ by getting the Oil Filter/Oil Cooler Combo Package HERE
There are options for:
- Black Braided Fiber Hose
- Stainless Steel Braided Hose
- Black Hose Finishers
- Chrome Hose Finishers
- Black or Polished Aluminum High Peformance Permanent OIl Filters (see details & photos HERE)
* Please Note: Using Black Hose Finishers on the black BRAIDED hose is a Very TIght fit. Soaking the end of the hose in hot water will soften the rubber up, making it a little easier to slide on to the fitting.
These Charts showing normal operating temps are Directly from the Harley Manual:
TWIN CAM ENGINES:
M8 ENGINES:
Why did we build The Clean-n-Cool Remote Oil Filter Set-up?
Two Reasons:
1. We have tried dozens of ways to remove the oil filter without making a mess. Some work better than others, but none work well.
2. Twin Cams & M8's run too hot for their own good. A cooler engine runs stronger and lasts longer.
In our tests we saw that by simply relocating the oil filter, the oil temperature was consistently 8-10 degrees cooler. When we added our exclusive Dual Cool Oil Cooler set-up to the CnC relocated Oil Filter, the oil temperatures were consistently 30-34 degrees cooler.

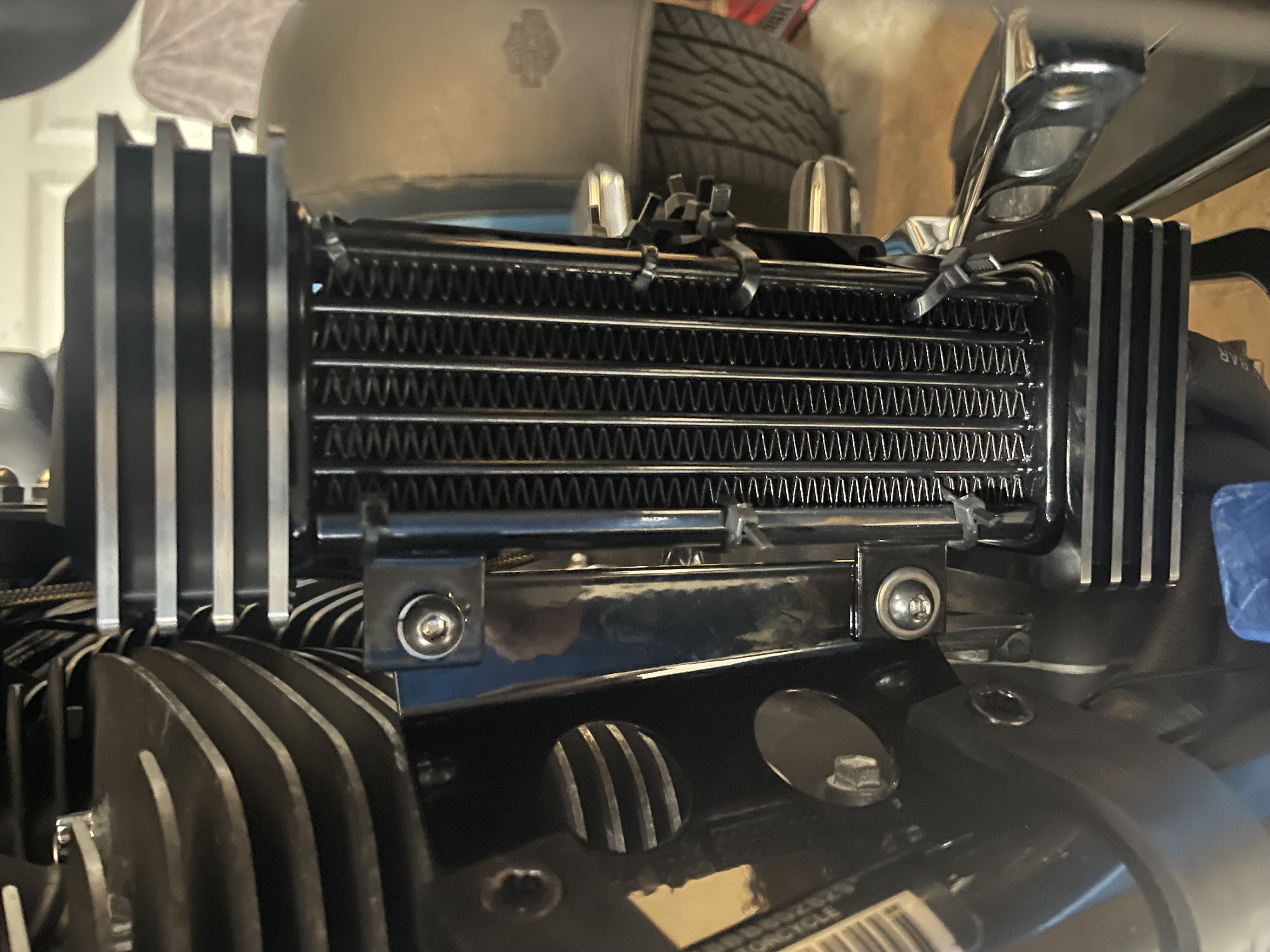

You can see the Dual Cool oil cooler kit that we designed specifically for Twin-Cooled Twin Cam's at this LINK. (It also works as a great primary or "second" oil cooler on all air cooled Twin Cam's & M8's.)
Patent Pending
"Finally a way to change my oil filter without making a mess! Plus my oil runs cooler. DK to the rescue again!" ~Matt
Trike Oil Filter Relocation Instructions
See Install Process Video HERE
Hose Routing Video HERE
Proper Hose Clamp Tightening HERE
These Charts showing normal operating temps are Directly from the Harley Manual:
TWIN CAM ENGINES:
M8 ENGINES:
Common Question we get:
Does the oil cooler or oil filter relocation put extra strain on oil pump?
They do not. Some of the passageways in the engine are much more restrictive than the passageways in the oil cooler & oil filter relocation.
The one factor in the oil loop that can put a load on the oil pump is a paper (OEM & most aftermarket) oil filters.
That is why we use permanent performance oil filters, because with them there is much less strain on the oil pump.
There is no measurable increase or decrease in oil pressure or oil flow when installing either, or both, the oil filter relocation & oil cooler.
4.9
Write a review
Share your thoughts with other customers
Top customer reviews
-
DK Harley Trike Oil Filter Relocation Kit AN Fitting Project 0 people found this helpfulThe kit is high quality and I have no complaints about the hardware. I decided to use AN fittings for my oil filter relocation kit after deciding that my $40K bike deserves better than worm drive clamps. My disclaimer: This was installed on a 2024 Tri-Glide with an M8-114. Measure twice and cut once. I am not responsible for AN hoses or parts that don’t fit. Hoses: - First hose from engine IN to OUT, 90° fitting on the OUT side, 41 1/2 inches from strait end to center opening of the 90° fitting - Second hose from engine OUT to IN, 40 1/2 inches from end of fitting to end of fitting Parts: - 1 each, EVIL ENERGY 6AN Fuel Line Kit, 6AN Hose Nylon Braided Fuel Line Hose Fitting Kit With 10PCS Swivel Hose Fitting Adapter CPE 10FT - 2 each, EVIL ENERGY 6AN Male Flare to 1/8" NPT Pipe Fitting Adapter Aluminum Straight Black 2PCS - 1 each, EVIL ENERGY 6AN Hose End Fitting Straight Swivel for CPE Braided Hose Black 2PCS - 1 each, EVIL ENERGY AN Fitting Hose Wrench Adjustable 3AN-16AN Aluminum Black - 1 each, Roll of Teflon Plumbers Tape - 1 each, Overseas Permanent Paint Pen Black Marker The easiest way to assemble the kit is off of the bike. Once you have the AN fittings and hoses attached to the “engine filter” side of the kit you can spin it on just like a filter before you route the hoses down the frame. The rest is just plug and play after that. You might be asking yourself why the paint pen? (Proceed with caution!) Because, you have take a Dremel tool and file out a little bit of the “filter side” housing on the IN side in order for the AN strait fitting to seat properly (see picture). Once you have removed the powder coat you will need to paint over the exposed metal. Hopefully in the future DK will machine out a little more space so an AN fitting will work without removing the powder coat.
-
Excellent 1 people found this helpfulThe oil relocation kit is awesome! Delivered very fast, easy install and it looks great! I have not taken the bike out for a ride due to the frigid temperature. I Love DK customs I had a few questions and they answered everything which made me feel comfortable with making the change!
-
Another GREAT Product! 0 people found this helpfulI recently installed DK Customs oil filter relocation kit on my 2024 Tri-Glide. First thing I noticed was the usual DK quality. Machining was top notch, everything fit perfectly. Already received compliments from my riding buddies. Keep up the great work
-
A little modification 2 people found this helpfulI have had two of these kits. On this last one, installed on my 2020 TriGlide, I made the decision to replace the fittings that came with the kit and use some 1/8"pipe to 6AN fittings and utilize the nylon reinforced hose and AN fittings. It makes a really nice looking finished product and adds a real professional look to an already great product.
-
Love it! 0 people found this helpfulFairly easy install and it actually did cool my twin cam down to some degree. Why Harley didn’t install something like this from the factory is a mystery. Two thumbs up!
-
Awesome 0 people found this helpfulAwesome product great delivery time get ready for 6000 mile trip this should help all around from heat reduction to easy oil change thank you for your dedication to helping us have better riding experience
-
Oil relocater kit 1 people found this helpfulEasy installation, nice looking product, I have not takin the tri-glide out yet for a long ride since I installed the kit. I’m satisfied with it so far.
-

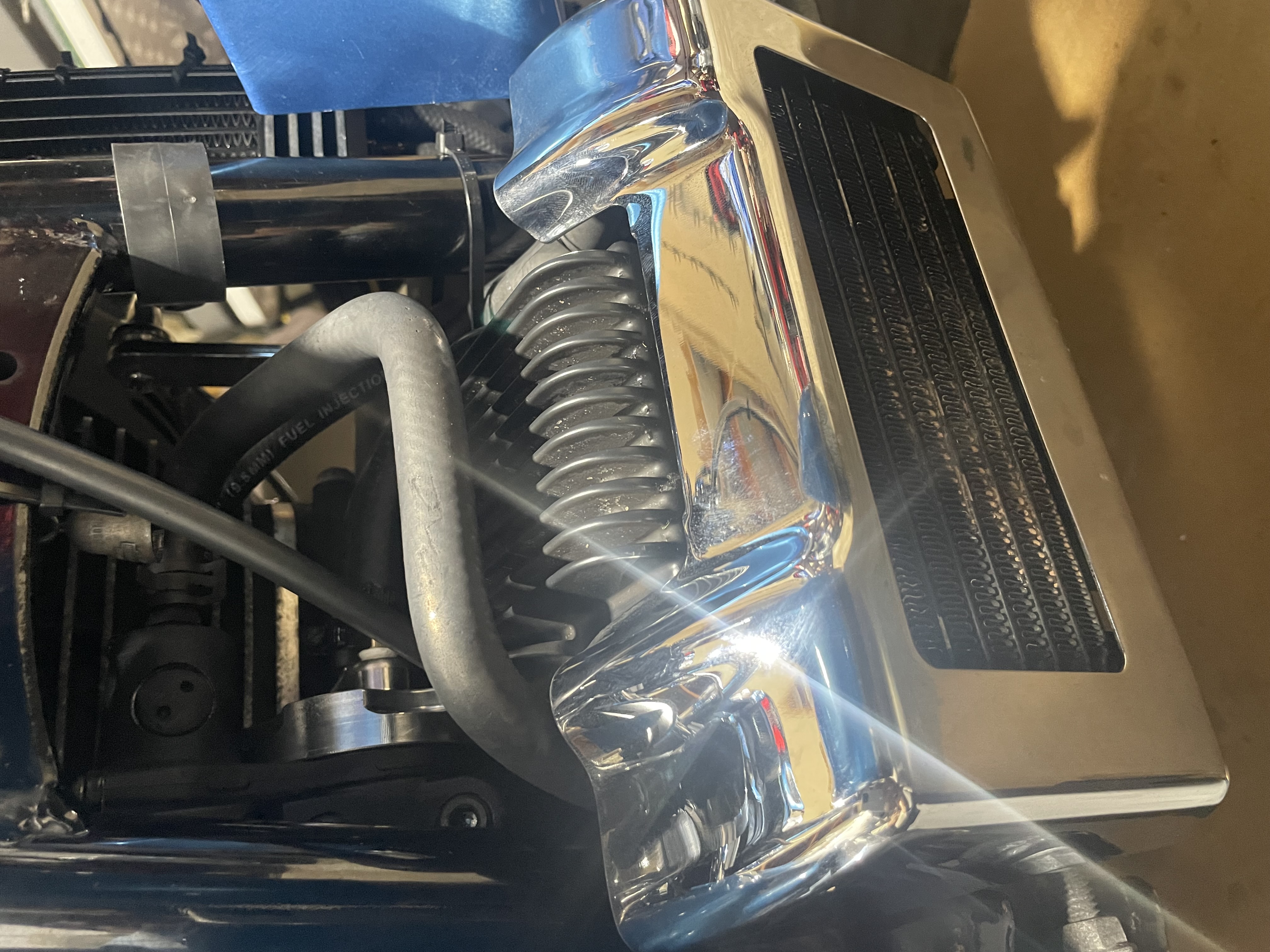

Great Oil Filter Relocator 3 people found this helpfulThis is a great oil filter relocator and it also made it easier to use with my oil cooler too, until this relocation kit, I was unable to successfully use my oil cooler (the Jagg Oil Filter Adapter failed twice (4700 and 4702) because my engine is rubber mounted, even though Jagg said it would work, spattered oil all over the right side of my engine) with this relocator, no oil spatter. Between this relocator and my cooler, it brought down the temperature of my oil approximately 20 degrees Fahrenheit, on a 90 degree day. I also have the permanent oil filter in combination. I am actually looking forward to my first oil change since installing this, I should have a no mess oil filter change for the first time with this bike.
-
Great Product 0 people found this helpfulThis is the second remote filter that I have installed. This one was just as nice as the first one. I did add the reusable oil filter this time. It is pleasing to see products that are made well, shipped fast, and install easy. I look forward to long service from it. Ken
-
Dk parts 1 people found this helpfulHave purchased several products over the last 3 or 4 years.had a couple of small issues and have ALWAYS been looked after. Customer service is everything. Thankyou DK
-

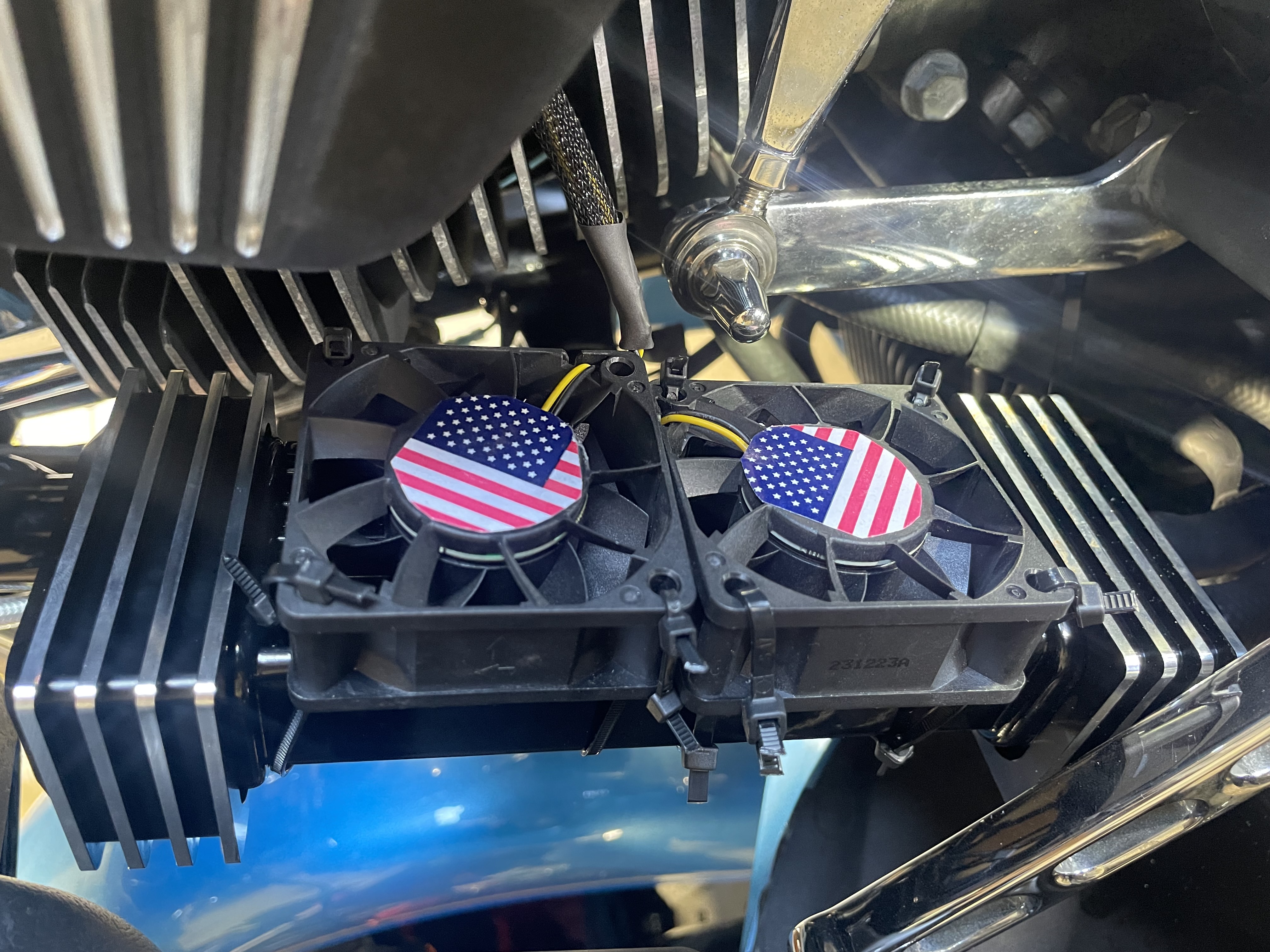

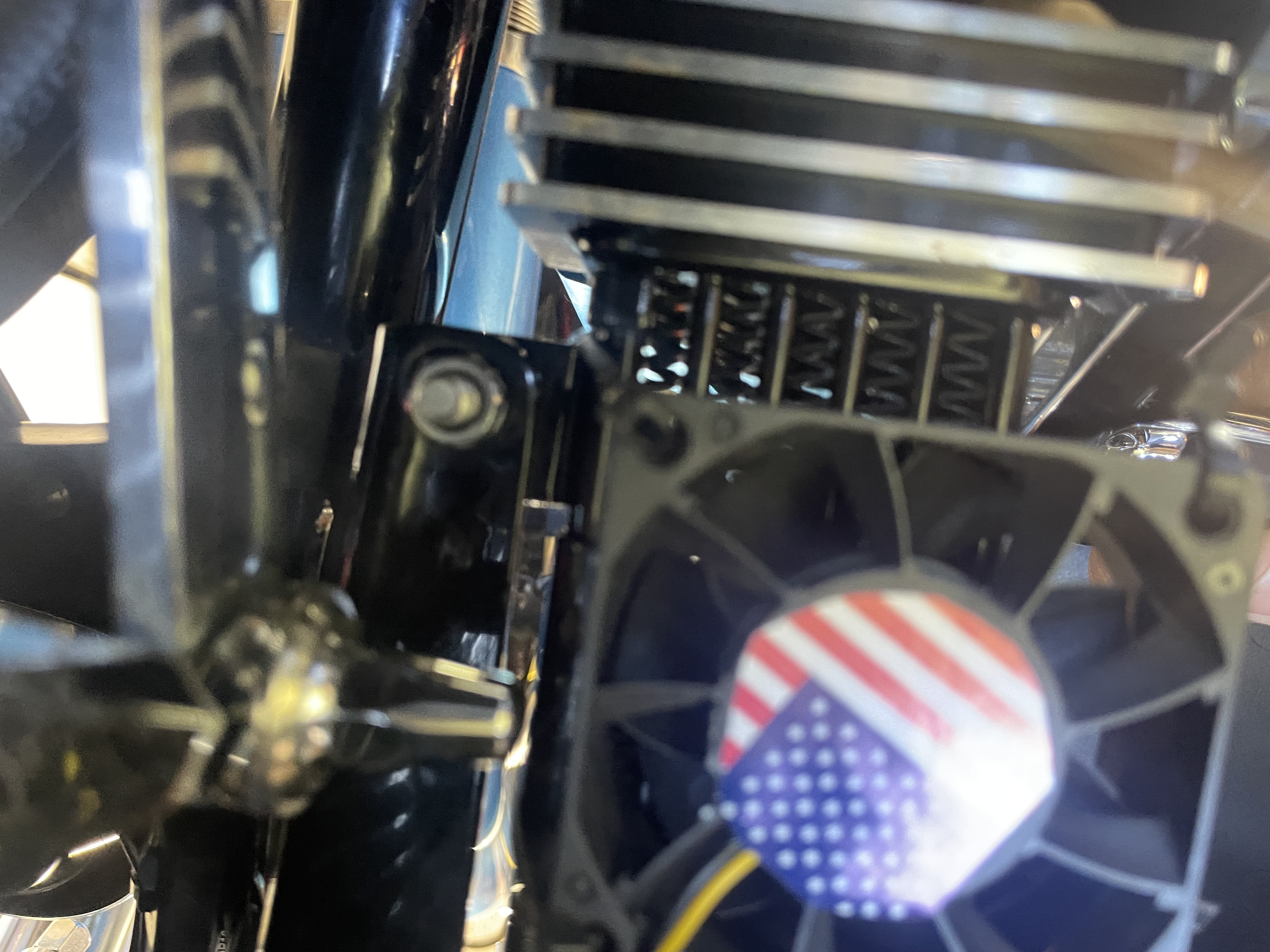

Cool and clean installed 2 people found this helpfulI recieved my relocation kit and installed it. So far so good. I also ordered fans from another vendor to add to the oil cooler because i ride in stop and go traffic. I kept my original oil cooler and routed the hoses accordingly. Customer service was great in answering my questions. I ran my hoses on the inside of the frame under the bike with no problems.
-
Great Product 0 people found this helpfulExcellent quality and does what they say it will do. Makes changing your oil filter a breeze with no mess. I like the fact that it increases the oil capacity a bit and the filter is exposed to cooler air thus lowering the oil temperature which keeps the overall engine cooler.
-
Oil filter relocation kit 0 people found this helpfulLiked the remote filter kit. Was easy to install, Only thing I would suggest is a little better hose clamps. Looks great
-
Best add on! 1 people found this helpfulGreatest thing since frog hair! I'm 71, been ridin Harleys before I was walking, oil changing @the filter has always been a mess, I get oil on everything! Now, that will never happen again! Very easy to install, I spend too much time shining that to have to be cleaning up an oil spill! Great addition on my 22 Freewheeler that I ordered new. Highly recommend.
-
Oil Filter Relocation Kit 2 people found this helpfulOil Filter Relocation Kit went on like video showed. I had to go to the hardware store to but a couple longer bolts for the bracket that holds the oil filter.l when you put both brackets together two of the screws were 2 short. I took it all apart to see if I used screws in wrong places but I did not. All screws were the same length. No buggy though a trip to the hardware store was a break for me.! The item looks great and functions great as well. Can’t wait to do the next oil change.
-
Great Product 1 people found this helpfulThis is my second relocation kit that I purchased from DK Customs. I did a lot of looking around at other companies and DK Customs beat everyone in price. I've had no issues with their products and I will continue to buy all my items for my 2023 Harley from DK Customs.
-
What a Great Idea 1 people found this helpfulWhat a product, it makes changing the oil filter a piece of cake. Fairly easy to install. Worth every penny. Wish I had found you guys sooner.
-
Experience on the remote filter from DK Customs 3 people found this helpfulI have never bought anything from dkcustoms so this was a first. I loved the quality of the parts and supplies that came with the kit. The instructions were complete and concise. All in all the install went very well, haven’t really been able to try out the cooling of it but seems like it will be much better than before. I like the fact that the filter is right there in my face and easy to service. I would by again from dk customs.
-
Great Product 1 people found this helpfulThanks Richard for the tip. I finally got around to installing the oil filter relocation kit today. I did as Richard suggested on the front, worked great. Otherwise a great product and would expect nothing less from DK Custom :)
-
Easy installation and quality components! 2 people found this helpfulThe worst part of the installation was removing the existing oil filter. That was messy which only reinforces the need for this product! I do recommend attaching the hoses to the adapter plate before screwing it to the engine. otherwise it would be a bitch to properly tighten the hose clamps. Overall i'm very pleased with the look and function on my Harley Freewheeler. I primarily bought this to help cool the oil in the Florida heat I also bought the permanent filter for it.. Always impressed with the quick shipping from DK Customs.
-
Great product 3 people found this helpfulOnly gave 4* because I had to clean sharp edges and millings off of the product, other than that looks great runs cool as well have vid of 30 mile ride 50° out and I could wrap hand around filter "try that by original location" I also bought the Reusable Oil Filter which I've heard good things about and look forward to many years of life out of it. Thanks guys only thing would be fitting for AN lines would make it even better..
-
Positive 2 people found this helpfulTop notch quality, easy installation, good customer service, fast shipping. Did I mention top notch quality? I'll be back for more.
-
awesome product 3 people found this helpfuleasy install. will make oil changes much easier and cleaner. will go from 1 hour oil cahng 15 minutes.
-

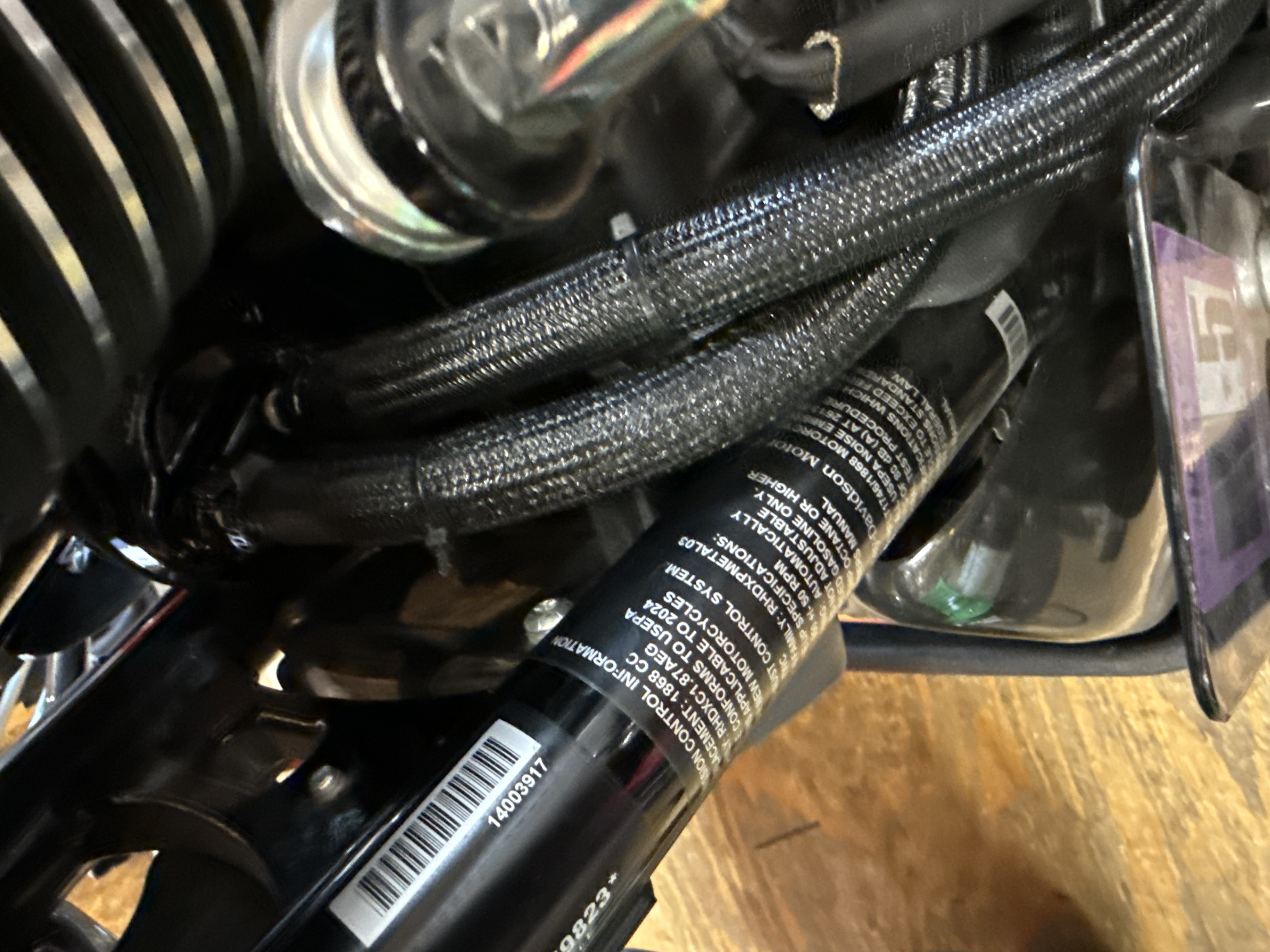

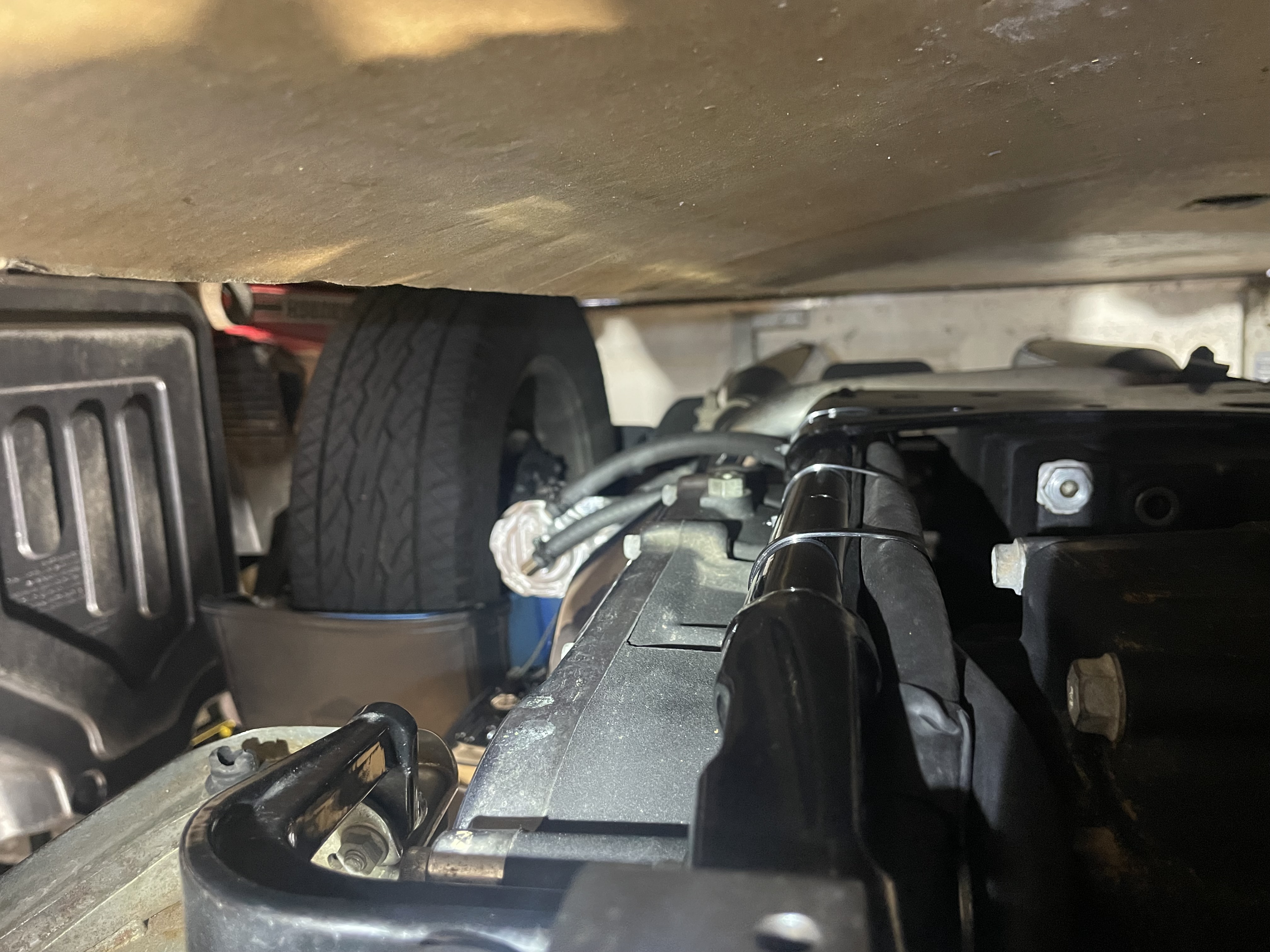

Well designed add-on 3 people found this helpfulThe installation on the remote filter kit is easy and clean. I did add some rubber where the lines contact the frame and routed everything very carefully. I have about 1000 miles on the trike since the install and it works great. I am actually looking forward to the next oil change.
-
Filter relocation upgrade 2 people found this helpfulEasy to install. Be sure to use lock-tite on all the bolts and any parts removed for installation. I did cover my oil lines with electrical wire sheathing that is coming in contact with the frame. Make sure to tighten the hose clamps.
-
Good choice! 2 people found this helpfulVery easy installation, looks great, and good price !!
-
Oil filter relocation kit 2 people found this helpfulPretty simple to install, comes with all you need to install .. will make future oil filter changes much easier
-

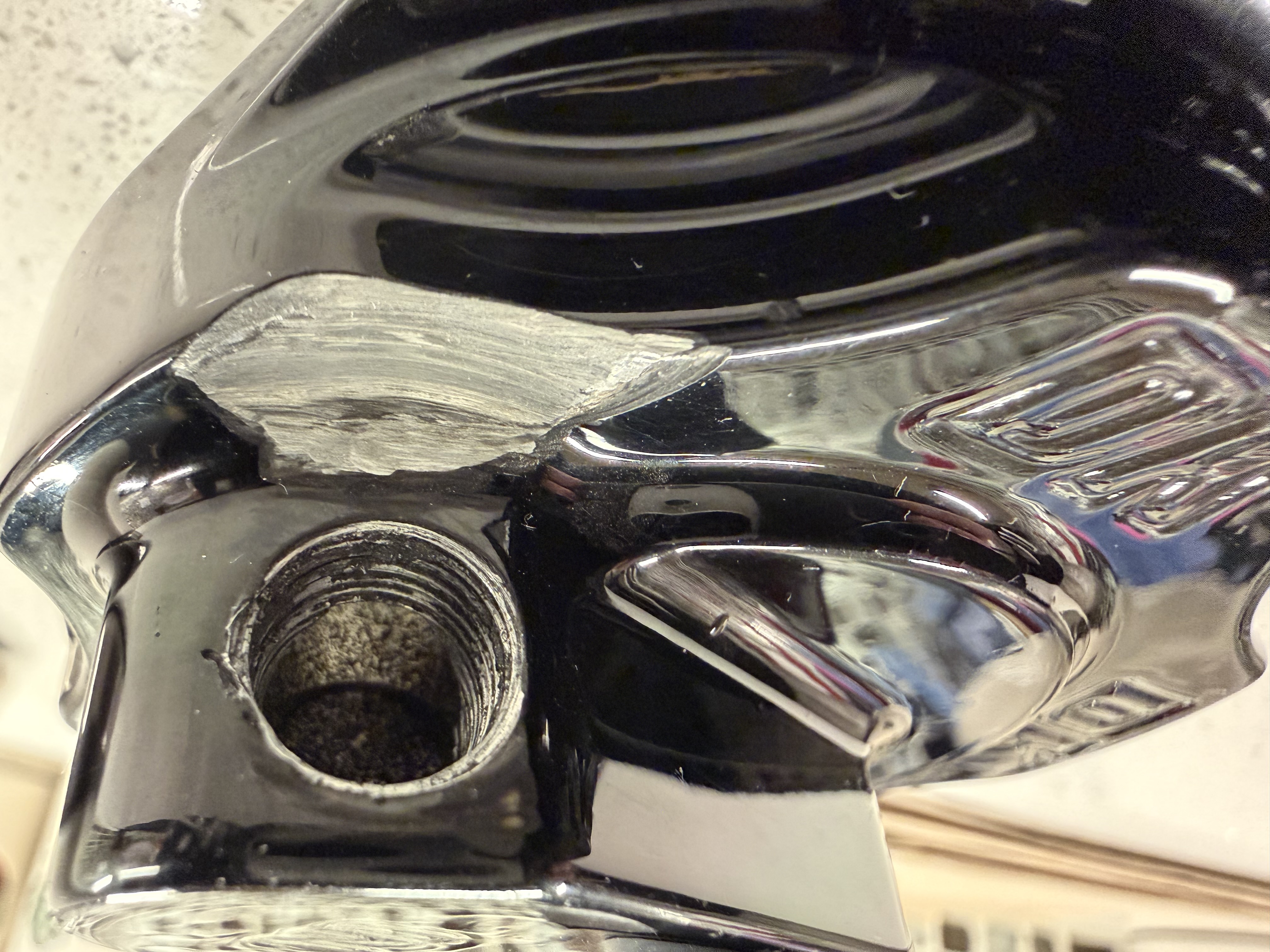

good 1 people found this helpfulneed to have different brackets for after market pipes, had to cut and modify bracket but after that it was great ****************** Could you please contact us at [email protected] (attention:Kevin) with a note of what pipes? We have tested this on hundreds of aftermarket pipes where it fits with no mod needed.
-
oil filter relocation 2 people found this helpfulOrdered this kit for my 2019 triglide.Kit arrived about 2 days later. Kit is well made and installation is easy with well written instructions. Rode 30 miles and checked for leaks and changed oil and filter. NO MESS. Rode 80 miles and noticed a slight leak at adapter. Retightened clamps and problem solved. Be sure to mount the clamps where you can get to the clamp bolts once installed. I tightened clamps the 2nd time with engine oil hot. Love this product. .
-
Haven’t installed the kit yet. 1 people found this helpfulComponents are well made and come with good instructions. Will install at next oil change.
-
Oil filter relocation 1 people found this helpfulAwesome Oil cooler next project
-
Great Solution 1 people found this helpfulI'm sure there will be some improved cooling of the M8 Oil with this Relocation Kit. However, I must say the real reason I installed this simple KIT is for the NO MESS and NO STRUGGLE oil changes. GREAT PRODUCT!!!!!
-
Great Product 1 people found this helpfulRelocation kit was delivered in 3 days. I can't be happier with it. This is a great product. I can see already how much easier it's going to make oil changes. Very easy to install, looks really good. I highly recommend this.
-
Could not be happier 1 people found this helpfulGreat service and product. Looks great, Easy to install.
-
GREAT PRODUCT 1 people found this helpfulExcellent quality. Great customer service. Fastest delivery I've ever had from a motorcycle company. It's most likely a product not for everybody, but it's my style. The product was first class quality. Works great on my Freewheeler.
-
Just buy it 1 people found this helpfulGreat product. Engineering flawless, all parts needed are included (and then some). Good instructions, just take your time and pay attention and you'll have no issues. Makes future oil/filter changes a HELL of a lot less of a pain in the ass.
