Combo Package - NEXGEN™ 13" Trike Series Shocks™ & Convertible Comfort Lift™ For Harley Davidson Trikes

Regular Price: 1,169.90

Special Price 1,124.95

Availability: In stock
Item #: DK-NG-13-LFKT
Manufacturer: DK Custom Products

* Required Fields

Characters left: 100

Characters left: 100

Characters left: 100

Characters left: 100

Characters left: 100

Characters left: 100

Characters left: 100

Regular Price: 1,169.90

Special Price 1,124.95

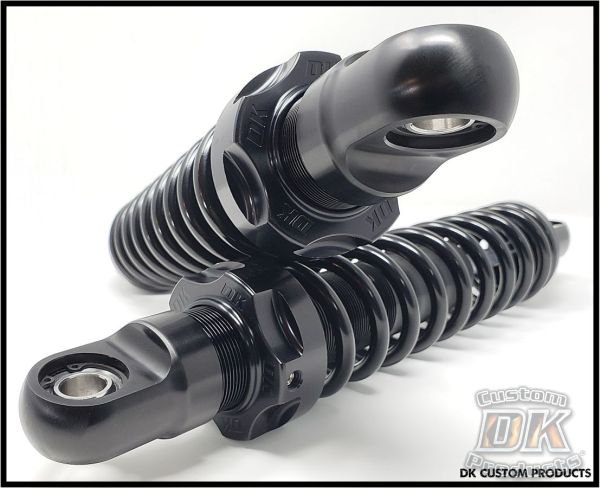

DK Custom Products  Combo package Comfort Mount NexGen 14" Shocks Trike Harley Tri Glide Freewheeler Pro Action Ohlins Legends Comfort Mount Trike Series Shocks



For Harley-Davidson




For Harley-Davidson




Shock Features & Specs:

  • Patented IAS Technology Inside (details below)
  • CNC machined T6061 aircraft quality billet aluminum
  • 3 stage Dynamically adjusting compression valving
  • 2 Separate Rebound Circuits (IAS)
  • Separated Oil/Nitrogen System
  • Internal Reservoir
  • Hard coat anodized
  • 9 port high flow piston
  • 13" Shocks - 4" of travel
  • Hand adjustable threaded spring pre load adjuster
  • Stainless steel spherical bearings in shock eyes
  • Sold as a Pair
  • Increased stability in turns (rides "flatter")
  • Increased cornering ability
  • Reduced brake dive (due to IAS Damping in rear shocks)
  • Smoother riding over the bumps
  • Faster braking (better contact patch)
  • Less wallowing in turns
  • Less harshness over bumps
  • Reduced bottoming out
  • Better Trike control
  • Developed & Manufactured by DK Custom
  • Easy Installation
  • Limited Lifetime Warranty


 Convertible Comfort Lift™ FEATURES & SPECS:

  • Durable Black Powder Coat Finish
  • CNC Cut from American Steel
  • The Convertible Comfort Lift™ Replaces the Stock Shock Bracket
  • Works with the Trike Series 13" Shocks™ on all years HD Trikes
  • Unique Design w/ multiple lift heights to accommodate exhaust fitment & Taller Shocks
  • E-Z Install ~ Comes with Step-by Step Instructions see the install HERE
  • Made in The USA!


 IAS Inside.  Inertia Active Suspension is a patented technology.  These NEXGEN™ dynamically adjust rebound damping, resulting in improved riding comfort & control.

This is acheived via a motion sensing valve in the shock body that dynamically adjusts the rebound damping to be ideal for both dips and bumps.

Custom Tuned to Your Trike & Your Riding Style/Loads


Conceived, Designed, Tested & Built by DK Custom Products, these 13" NEXGEN™ Trike Series Shocks™ provide a Superior Ride Quality for Harley-Davidson Trikes with the MOST Travel possible at 4".
DK Custom Products has been at the forefront of developing suspension solutions for Harley Trikes.

MORE About The Patented IAS Technology:  Normally shocks have 1 circuit for for compression & rebound damping.  Within this damping circuit are "shim stacks" that provide pressure sensitive adjustment to the damping.   Because it is one circuit for both, it is always a compromise.

These shocks have TWO Completely different circuits (valving) for auto-adjusting rebound damping.

By having one pressure sensitive circuit for bumps in the road, and Another damping circuit for dips in the road, the damping works exceptionally well.  Each damping circuit is set up to optimally, and automatically adjust the damping to the road surfaces, acceleration, braking, load (weight) on the Trike.


  • With More Travel, afforded by the 13" Shocks, the ability to eat up small and large irregularities, turning the harshest jolt into a smooth dip is a joy to ride.
  • These Trike Series Shocks™ are 13 inches tall.  Designed to work with the DK Custom Convertible Comfort™ Mount brackets, they not only give you the most suspension travel available for an HD Trike, they also level out your Trike.  No more dragging the tail end.
  • When you order you will be asked some easy questions.  Your answers give us the information needed to use the correct spring rate for your shocks, as well as giving us the info needed to adjust the shocks for you.  This way when you receive the shocks they are already set-up for you.  Simply bolt them on and ride!

See Parts 2 & 3 in the 'Technical Info' Tab Above



Fits all 2009-Up Harley-Davidson Trikes (Tri Glide, Freewheeler, FLHXXX)

These shocks fit with OEM bike parts. If you have aftermarket parts such as some oversized exhaust, lowering blocks, aftermarket saddle bags, etc it may limit the length shocks that you can run on your bike.




Note: Even though the 2009-2016 Trikes will run this Trike Series Shock™ without the Convertible Comfort Lift™, they will sit more level and ride smoother with a Convertible Comfort Lift™.

Click HERE to see details on the Convertible Comfort Lift™


Limited Life Time Warranty Details:

For the original purchaser of the shocks
Does not cover accidents, fire, environmental catastrophes (submerged in a flood, etc.)
Does not cover if the shocks were abused (overloading them), improper installation
If they are installed properly, not overloaded, not damaged by some external force, then they are Lifetime shocks for the original purchaser....if they wear out, they will be rebuilt/replaced  at no charge.



"These Trike Series Shocks do an amazing job at leveling out the irregularities in the road.  As we get older, having a smoother ride is more & more important.  The stiff, straight axle OEM ride is long gone." - James







Click on the link below for an article on Understanding Rake & Trail.


It explains the How & Why of the Improved handling experienced when using one of the DK Custom Convertible Comfort Lift™ Kits

 Understanding Rake and Trail



Understanding the How and Why's of Rear Tire Pressure on Trikes.


Lehman Trikes Correct Tire Pressure

Customer Reviews

Made a "great" ride Review by KJ
Installed the shocks along with the 'comfort lift kit'. We went to Biketoberfest the day after the install. Rode 900 miles round trip. The wife LOVED the difference in the ride. Far more comfortable. (Posted on 10/27/2023)
