Automatic By-pass Valve for Oil Coolers

Availability: In stock
Item #: DK-JAGG-4050
Manufacturer: Jagg

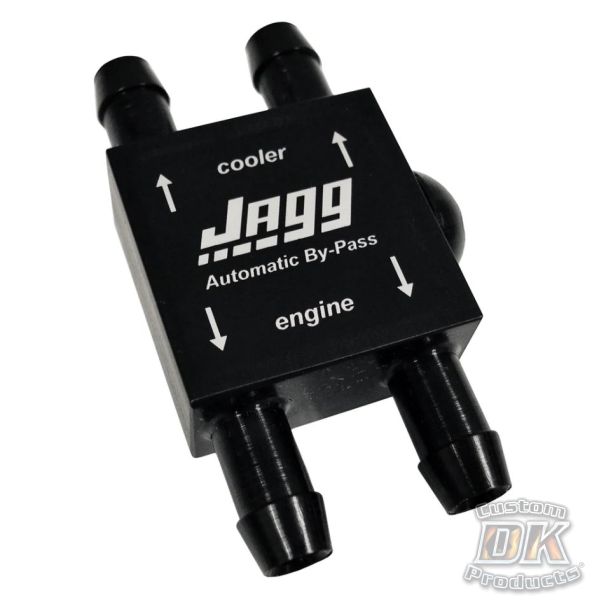

Automatic By-pass Valve for Oil Coolers


Automatic By-pass Valve



Works with all Oil Coolers




Features and Specs


  • Acts as an automatic thermostat
  • Durable anodized billet aluminum contruction
  • Compact in-line Installation
  • Comes with 4 Black Hose Clamps
  • Easy Install Instructions

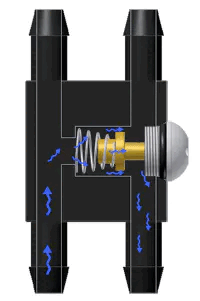

 The Jagg Automatic By-Pass Valve acts as an automatic thermostat, the actuator begins to move at 185ºF. By 195ºF it is fully-actuated, plugging the by-pass hole, and directing 100 percent of the oil's flow to the oil cooler.


Works great with the DK Oil Filter Relocation and Oil Cooler Combo Kits!

Click HERE for Trikes

Click HERE for 2009 and UP Two Wheel Tourings!


Fitment Notes:  If the oil hoses between the oil cooler and the oil source are too short, the oil cooler by-pass valve may not fit in the oil lines. Jagg mini by-pass valves require at least 3 inches of straight hose.
