Your Choice of a Black or Chrome Ring Push-Button LED Switch
Your Choice of Black or Polished Billet Ring for PB LED Switch
Your Choice of Tank Lift (1.5" or taller)
Optional Pro Race Plug Wires
Rubber seat for Coil
Hand-Polished Mirror Finish
Includes everything needed for E-Z INSTALL
Step-by-Step Instructions Included
Purpose-Made & Patent Pending

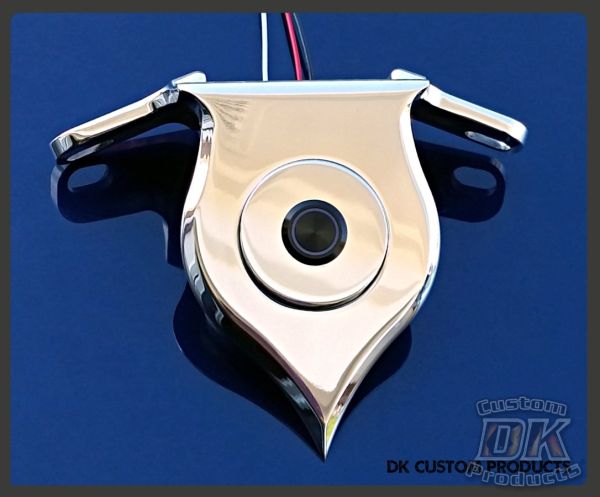

Each CNC Precision Cut Billet DLX Coil Relocation comes with your choice of a black or polished billet ring for the Push-Button LED Ignition Switch. You also have a choice Black or Chrome for the Push-Button LED Switch.
There is no key used for the ignition with this set-up. Security is had by using your fork lock, and/or putting a hidden switch somewhere. The LED Ring of light stays lit while riding. The LED Ring on the Black Trim switch is White, on the Chrome Trim switch the LED Ring is Blue.
Included is everything you need to relocate your Coil & replace your Ignition Switch. When ordering, you will be asked what color Billet Switch Ring you want, and what color LED Switch you want.
The wiring is easy, no soldering needed, we provide wires already set up with Posi-Lock Connectors for quick, positive connections.
You can see the Black Billet DLX Coil Relocations at this LINK.
You can also get this Coil Relocation with a Barrel Key Switch at this LINK.
BETTER LOOK ~ BETTER AIR-FLOW ~ BETTER SPARK ~ BETTER SWITCH This is an EASY install - 20-30 minutes!
If you have a CANbus bike (2014-Up Sportster or 2012-Up Dyna) choose the CANbus option to get the additional circuitry that enables the Push-Button LED Switch to work with your CANbus equipped bike. (except XR1200)
FITMENT NOTES:
This Coil Relcation requires a tank lift of at least 1.5" be used. Some years of the Custom cannot run a tank lift without relocating the Speedometer.
Fits 2007-UP Sportsters
Does Not fit 2006 & earlier models. The CANbus adapters are required for 2014-Up Sportsters.
Because the coil is now sitting between the spark plugs, you will want to modify the length of your existing plug wires OR use the option for some New Pro Race Wires when ordering.
"This is a super clean & elegant look. Love it!"-Smitty
