Feuling High Flow M8 Camplate - Gear or Chain Drive

Availability: In stock
Item #: DK-CAM-M8-8017
Manufacturer: FEULING

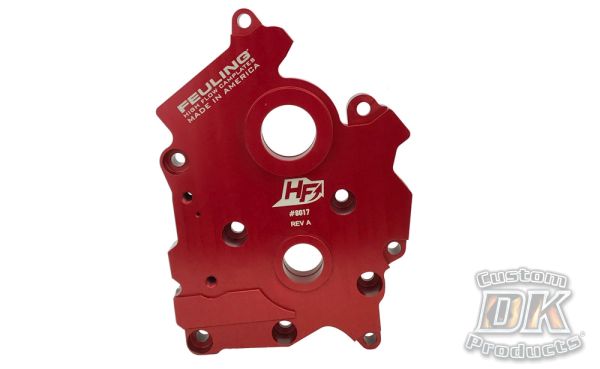

Feuling High Flow M8 Camplate Gear Or Chain Drive for Milwaukee Eight Models

High Flow M8 Camplate

Gear or Chain Drive



Milwaukee-Eight Models



Made in The USA!



  • Fits All Milwaukee Eight Models
  • 42% More Scavenge Volume with Matched Passages, Port Sizing and Holes to the Engine Case
  • 68% More Oil Volume to the Crankshaft and Connecting Rod Bearing
  • 15-25 Degree Cooler Engine Temperatures and 15-25 Cooler Oil Temperatures.
  • 7075 Billet Aluminum 50% Harder and Stronger than the Factory Camplate



HIGH FLOW CAMPLATES FOR MILWAUKEE EIGHT Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including the scavenge return holes from the pump to the camplate and into the engine case. This camplate also matches the oil port holes throughout the camplate to the port holes in the engine case increasing engine oil flow throughout the engine.

Increased and optimized passages, port holes and galleys requiring them to be matched up to a FEULING HIGH FLOW Oil Pump

42% more scavenge volume with matched passages, port sizing and holes to the engine case

68% more oil volume to the crankshaft and connecting rod bearing

15-25 degree cooler engine temperatures and 15-25 cooler oil temperatures.

7075 billet aluminum which is 50% harder and stronger than the factory cast and Feuling OE+ camplates.

The 7075 increases the strength and hardness of the camplate, holding tighter tolerances under temperature eliminating flexing and the need for bronze bushings as 7075 material has excellent bearing like properties.

Tighter cam journal bore tolerance for improved cam fitment

Added Cam journal oil groove for cold start up protection and increased cam journal lubrication

Added oil pressure feed holes to front and back of cam journal to prevent excessive thrusting wear

When matched with the Feuling Race Series Oil Pump rear wheel power gains of 2 Horsepower and 2 ft/lbs of Torque are achieved.

Bolts into stock location

Optional FEULING X ARP bolt kit available for the HIGHFLOW Camplate and HP+ or RS Oil Pump combo. See Bolt Kit at this LINK. ARP oil pump bolts do not use washers.

HIGH FLOW CAMPLATE Fits 2017- UP Milwaukee Eight, Fits: Chain and Gear Drive camshafts for use ONLY with FEULING HP+ OR RACE SERIES Oil Pumps.

NOTE: Use of Gear Drive camshafts require block off plates - See the Block Off Plates HERE.

Made in The USA
