04-06 Coil Relocation Kit

74.95
Availability: In stock
Item #: DK-CR-RLC-0406
Manufacturer: DK Custom Products

* Required Fields


74.95

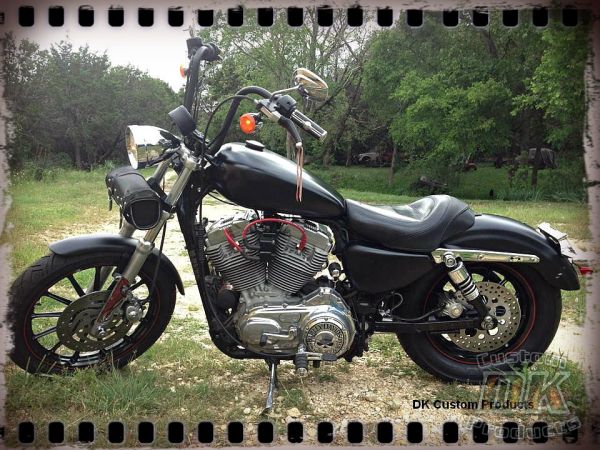

04-06 Coil and Ignition (Key) Harley-Davidson FITS SPORTSTERS 2004-2006  Relocation Kit DK Custom better air flow runs cooler Sportster Roadster 72 48  Nightster Flex six F-6



NEW PREMIUM COIL RELOCATION KIT

With options for Ignition Relocation, Tank Lift, Plug Wires and F6!




FITS SPORTSTERS 2004-2006

MADE IN THE USA!
By
DK Custom Products



FEATURES & SPECS:

  • Made from American Cold Rolled Steel
  • Optional  Pro Race Plug Wires (11mm!)
  • Durable Black POWDER COAT Finish
  • E-Z BOLT-ON INSTALL
  • Step-by-Step Instructions Included
  • Purpose-Made & Patented

You can get rid of that ugly mess covering the top of your front rocker!





Optional is A Premium LIFT KIT
The Tank Lift gives you extra room to tuck your wires....really cleans up above the front rocker cover!


BETTER LOOK ~ BETTER AIR-FLOW ~ BETTER ACCESS TO KEY


This is an EASY install - 20-30 minutes!



  • This simple to install kit, relocates your coil to the left side of your engine, opening up the space above your engine!
  • Look at all the pictures...you will be very pleased with how this gives your Bike a Radical New Look!
  • Helps clean up the jumbled mess sitting right above the engine.



Fits 2004-2006 Sportster Models! (except XR1200)

**We also have this kit for 2007-UP Sportster Models**

FITMENT NOTES:

With Fuel Injected bikes the standard ignition relocation that puts the key switch right above the coil fits fine.  If your bike is carbureted, it is a VERY TIGHT Fit, with a tank lift, and impossible without a 1.5" tank lift, a 2" or taller is better, that is why the 1" is not an option. Not only because of the petcock, but also because of the room needed for the choke knob.

If your bike is carbureted, it is best to choose the Flex-Six (F-6) option which puts the ignition switch between the rear cylinder and battery cover. If a Ignition Relocation is desired.

The F-6 Option will also fit fine with Fuel Injected bikes-choose whichever look you like the best.

For Custom Sportsters that have the cowbell horn on the side, look at our Horn Kits!  You can relocate your Coil AND have a horn!

Because the coil is now sitting closer to the rear spark plug, you may want to modify the length of your existing rear plug wire.  Or better yet, get some PRO RACE Plug Wires that will compliment your Coil Relocation.

"Excellent quality product and nice, fast shipping. Highly recommended!" -Jessie

U.S. Patent D668,984 S

Customer Reviews

Quality
Value
Coil relocate kit Review by Mark
Very good looking piece, nice welds, robust construction. Installs easily with supplied instructions. It requires a 1 inch minimum tank lift with the big 4.5 gal stock tank on my 2006 883C, which I fabricated from material laying around my garage. I recommend to anyone looking to clean up that area under the neck. (Posted on 2/10/2022)
