Machine Cut Finish Complete HiFlow 828 Air Cleaner Dyna Softail Touring Trike

259.95
Availability: In stock
Item #: DK-AC828-MC-TC
Manufacturer: DK Custom Products

* Required Fields


259.95

DK Custom Stage I 1 one HiFlow High Flow Performance Air Cleaner 828 Outlaw Twin Cam K&N External Breather EBS Machine Cut

Outlaw HiFlow 828

Air Cleaner System

For

Harley-Davidson
Dyna~Softail~Touring~Trike Twin Cam Models

~High Performance Air Cleaner~

~Machine Cut Finish~

 ~Fits EFI & Carbureted~


MADE in The USA!

DK Custom Products



FEATURES & SPECS:

  • HiFlow Genuine K&N Air Filter
  • 6" x 9" Oval for Maximum Flow
  • Backplate Billet Machine Cut Finish
  • Machine Cut Finish Cover
  • Choice of Support Brackets
  • Naked - No Cover - OEM Ham Cam Sporty Cover Fits
  • Your Choice of External Breather System - EBS (NO oily air in engine)
  • A True Stage I Air Cleaner
  • E-Z Step-by-Instructions Included
  • Super Low Profile of 2" Total
  • Made in The USA!



The Outlaw HiFlow 828 System will give your Twin Cam the Air it needs to Produce Maximum Power.  CLEAN AIR - No dirty air routed back in! AND, it is one of the Lowest Profile High Flow Intakes available

This System is TURN-KEY.  It comes with everything you need to replace the restrictive stock air cleaner.

E-Z Installation with Step-by-Step Instructions.

Genuine K&N Filter with Million Mile Warranty.

Filter is re-usable.  Simply wash, let dry, & apply oil.  See Filter Service Care Kit HERE.

Fits Carbureted & EFI Dyna, Softail, & Touring Twin Cam Models.

This is a must for at Stage 1- IV Upgrades.

 You can upgrade to the Outlaw HiFlow 828 Air Cleaner without doing any dyno work or adding tuners IF you leave the stock exhaust in place.

Replace the Restrictive stock air cleaner on your Twin Cam and wake it up!

The 6061 Billet Backplate was designed for maximum flow and minimum impact on rider leg clearance, with only 2" from Throttle Body/Carb to Outside Surface of Cover.

Included: Your Choice of Brass, Black or Polished Aluminum Breathers.  Or you can choose one of the Hose & Filter Breather Systems for venting- The Traditional or the Discrete.  To see full details on ALL these choices Click HERE.

When choosing between the 6 Breather systems, it is helpful to know-

1.  All three Breather Bolt function the same, it is just a matter of which color you prefer.

2.  All of the Hose and Filter or Catch-Can  Breathers function the same with the Outlaw Air Cleaners, it is a matter of which system you like the looks of the best.

The EPA has required Harley to route dirty, oily crankcase air back into the air cleaner compromising the performance of your engine. The Outlaw Breathers vents it without compromising the performance or longevity of your motor.

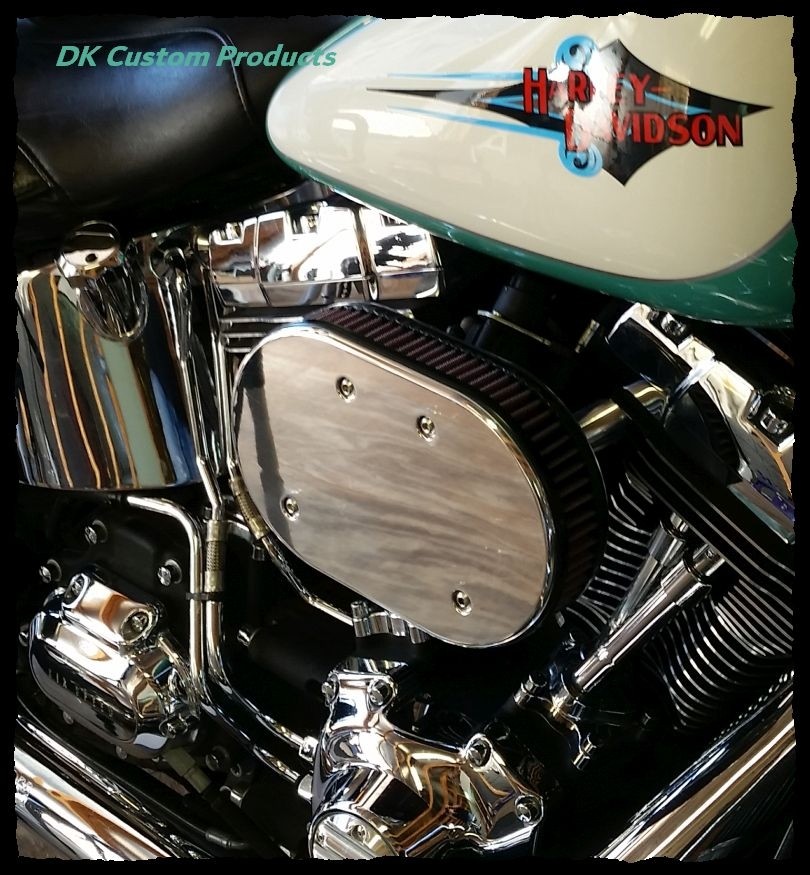

The Aluminum Billet Cover is CNC cut by DK Custom Products in the USA.  It has a Machine Cut Finish with a Spiral pattern.  However, it is smooth to the touch and can be polished into a mirror finish in 15-30 minutes.  See photos.

This HiFlow Performance 828 Intake System is also available with a

Wrinkle Black Powder Cover .  Click HERE to See it.



Fitment:

2000-2015 Softail (cable operated throttle)

2016-Up Softail (Throttle by Wire TBW)

2000-Up Dyna (cable operated throttle)

2000-2007 Touring (cable operated throttle)

2008-Up Touring (Throttle by Wire TBW)

If you have a 2008-Up Touring Model, or a 2016-UP Softail, it has Throttle by Wire (TBW) and you must check the TBW option above to get the correct backplate.



 **This Air Cleaner System comes with a Support Bracket.  If you already have an aftermarket support bracket for your cable operated bike,  you may click the box above and save $22.

If you have a Throttle-By-Wire bike, you have a black Support Bracket already and you may click the box above and save $22.

Look at our Support Brackets HERE.



Caution:  Motorcycles modified with this DK Custom Products High-Performance part may not be legal for public highway use in some areas.  The user shall determine suitability of this product for his or her use.

"I really like this 828, great flow and low profile for absolutely no leg interference."   -James





Customer Reviews

Quality
Value
10/10 Review by Bill
Easy to install. Quality machine work. Holes lined right up. Good easy to read instructions. Cooled IAT about 10-15 degrees according to my powervison.( like they advertise) good customer service. Would recommend (Posted on 6/29/2021)
