Wrinkle Black Complete HiFlow 828 Air Cleaner - Prepped for the M8 Ventilator Badge/Medallion for Milwaukee-Eight

Availability: In stock
Item #: DK-M8-828-WB-MED
Manufacturer: DK Custom Products

* Required Fields

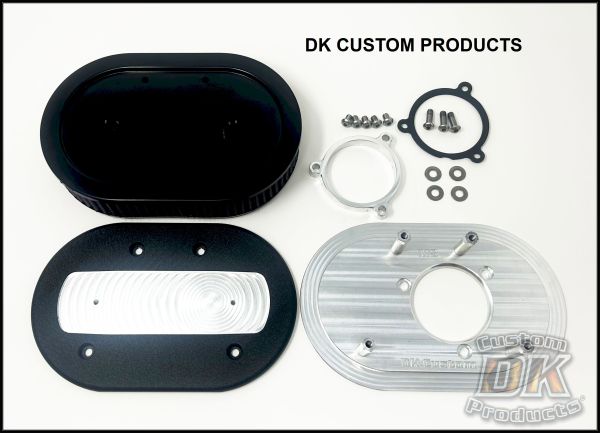

Wrinkle Black Complete HiFlow 828 Air Cleaner Prepped for the OEM Medallion Milwaukee-Eight

Outlaw HiFlow 828

Air Cleaner System


Milwaukee-Eight Models

~High Performance Air Cleaner~

~Wrinkle Black Cover Prepped for the M8 Ventilator Badge/Medallion~

MADE in The USA!

DK Custom Products



  • HiFlow Genuine K&N Air Filter
  • 6" x 9" Oval for Maximum Flow
  • Backplate Billet Machine Cut Finish
  • Choice of Support Brackets
  • Wrinkle Black Powder Cover - Prepped for the M8 Ventilator Badge/Medallion (Badge/Medallion NOT included)
  • Your Choice of External Breather System - EBS (NO oily air in engine)
  • A True Stage I Air Cleaner
  • Super Low Profile of 2.5" Total
  • E-Z Step-by-Instructions Included
  • Made in The USA!


The Outlaw HiFlow 828 System will give your M8 the Air it needs to Produce Maximum Power.  CLEAN AIR - No dirty air routed back in! AND, it is one of the Lowest Profile High Flow Intakes available.

The Included Cover is made to fit with any of the M8 Ventilator Bagdes/Medallions. Badge/Medallion is Not included.

This System is TURN-KEY.  It comes with everything you need to replace the restrictive stock air cleaner.

E-Z Installation with Step-by-Step Instructions.

Genuine K&N Filter with Million Mile Warranty.

Filter is re-usable.  Simply wash, let dry, & apply oil.  See Filter Service Care Kit HERE.

Fits Milwaukee-Eight Models.

This is a must for at Stage 1- IV Upgrades.

Replace the Restrictive stock air cleaner on your M8 and wake it up!

The 6061 Billet Backplate was designed for maximum flow and minimum impact on rider leg clearance, with only 2.5" from Throttle Body to Outside Surface of Cover.

Included: Your Choice of Brass, Black or Polished Aluminum Breathers.  Or you can choose one of the Hose & Filter Breather Systems for venting- The Traditional or the Discrete.  To see full details on ALL these choices Click HERE.

When choosing between the 6 Breather systems, it is helpful to know-

1.  All three Breather Bolt function the same, it is just a matter of which color you prefer.

2.  All of the Hose and Filter or Catch-Can  Breathers function the same with the Outlaw Air Cleaners, it is a matter of which system you like the looks of the best.

 The Transformer™ is the Ultimate External Breather System, that Doubles as a Support Bracket and can be Transformed into an EPA (Emissions) Compliant System. It fits all Outlaw Air Cleaners.

Harley routes dirty, oily crankcase air back into the air cleaner compromising the performance of your engine. The Outlaw Breathers vents it without compromising the performance or longevity of your motor.

 This 828 comes with a Wrinkle Black Cover Prepped for the OEM MedallionThis is a very unique textured powder coating.  Look at all the photo's above to see how it looks a bit different at various angles.

This HiFlow Performance 828 Intake System is also available with a

Machine Cut Finish Prepped for the OEM Medallion. Click HERE to see it.



This Air Cleaner fits OEM Milwaukee-Eight Throttle Body

NOTE: With This Air Cleaner the OEM support bracket must be used. It is pictured below. If you don't have one, the HD Part # is 16400049 (it has a retail price of $17.09)





If you have a Twin Cam Dyna, Softail or Touring Model, click HERE to see 828 Air Cleaners that fit your bike.

(The Twin Cam Ventilator Badge/Medallion is a different shape/size & will not fit)

Caution:  Motorcycles modified with this DK Custom Products High-Performance part may not be legal for public highway use in some areas.  The user shall determine suitability of this product for his or her use.

"I really like this 828, great flow and low profile for absolutely no leg interference."   -James
