 DIY External Breather System

4 Stage Catch Can

Braided Hose

For

Harley-Davidson

FITS ALL TWIN CAM, MILWAUKEE-EIGHT MODELS & SPORTSTERS

DK Custom Products

FEATURES & SPECS:

• Fits All Air Cleaner Systems w/ Stand-off back plates
• Allows Discrete Placement of the 4 Stage Catch Can
• No more hot, oily, oxygen depleted air going into your intake

• Your Choice- Black or Aluminum 4 Stage Catch Can
• Optional P-Clamp for More Secure Catch Can Installation*
• Includes 2 feet of Braided Stainless Steel hose (with option for longer lengths)
• Optional Black Fiber Braided Hose
• Optional Chrome Hose Clamp Covers
• DIY Kit requires drilling & tapping
• Includes Step-by-Step instructions

In the picture below you can see the stand-offs that are part of the backplate (that butt up against the heads).  This system includes hose barbs that can be threaded into those stand-offs and allow you to vent externally.

The picture also shows the Stainless Braided Hose and Optional Chrome Hose Clamp Covers

This Picture is showing an Ness Big Sucker Air Cleaner that has our Sano Black Air Cleaner Cover, specifically made for Big Suckers & HD Stage I Air Cleaners.  You can see this cover HERE.

Your Choice of a Black or Aluminum 3 Stage Catch Can is part of this kit.  See more photos and details on the 4 Stage Catch Can at this LINK.

An external Breather Kit is preferred with any Air Cleaner System.  This allows for only clean cool air to go into the air cleaner and engine, increasing performance and engine longevity.

This DIY kit is designed for aftermarket Stage 1 Air Cleaners that don't allow for venting out the end of the breather bolt.  It can even be used with the stock air cleaner.

The EPA has required Harley to route hot, dirty, oily crankcase air back into the air cleaner compromising the performance of your engine. This vents it without compromising the performance and longevity of your motor.

With this breather system you will experience a slight performance increase.  This is because engines like Cold Dry air!

Fits All Twin Cam & Milwaukee-Eight Models - 2000-Up Touring & Softail, 1999-Up Dyna

Fits All Sportsters & Big Twin Evo Models - 1991 & Up

There are options for Standard Catch Can & XL Catch Can. The XL Catch Can Is 33% Larger holding 3 ounces of liquid, where the Standard Catch Can holds 1 ounce of liquid. If your bike tends to spits out more liquid, the XL may be a better choice. You can learn more about each option by clicking the links: XL Black, XL MCF, Standard Black, Standard MCF.

*You can see more about the Standard P-Clamp at this LINK.

*You can see more about the XL P-Clamp at this LINK.

 The top of the Catch Can is attached to the hose by a zip tie or hose clamp (both supplied w/ the kit).  The bottom of the Catch Can threads to the top.

 Anytime you want, you can un-screw the can portion, empty out all the gunk, and then thread it back together.

  The top of the Catch Can is vented, letting the air escape, while the 4 Stage Filtration catches and holds the oil.

  The Catch Can is 1 1/2" in diameter and 2 5/8" tall.  For more details on the 4 Stage Catch Cans, Click HERE.

*This kit requires drilling (11/32" drill bit) and tapping (1/8" NPT Tap) threads into the stand-offs (that are part of the backplate).  The benefits are that you can completely hide the hoses, if you wish, and it will work with air cleaners where no other external venting system will work.

Drill bit & Tap kit is an option below.

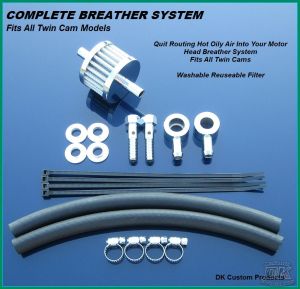

If your air cleaner system will accept the Stock OEM breather bolts, we have other breather kits that are straight bolt on, not requiring any drilling or tapping.  You can see the one for the Sportster HERE, and the one for the Twin Cams HERE.

Caution:  Motorcycles modified with this DK Custom Products High-Performance part may not be legal for public highway use in some areas.  The user shall determine suitability of this product for his or her use.
